Move Unit To Destination (Horizontal Position); Figure 3-9. Moving And Tilting The Unit Down - Hologic QDR 4500 Technical Manual

Dolly Wheels

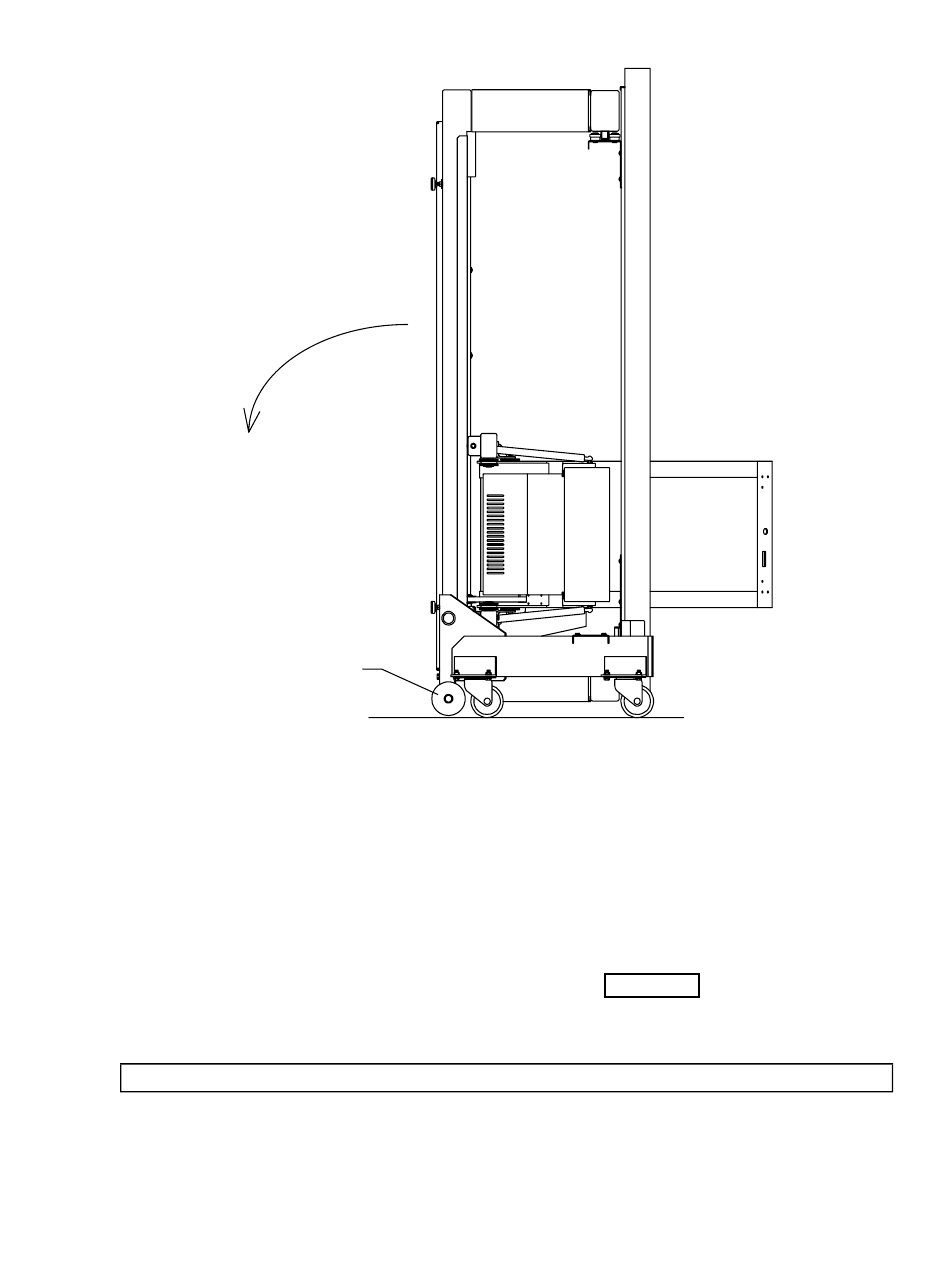

Figure 3-9. Moving and Tilting the Unit Down

MOVE UNIT TO DESTINATION (HORIZONTAL POSITION)

You may have to lower the unit to a horizontal position to move it to its destination if the ground
clearance is not sufficient. To do this, use the auxiliary caster assemblies and mounting hardware
shipped with the unit and follow these steps:
1. Follow the procedure in the previous section for moving the unit in the vertical position
(steps 1-8).
2. Using the hardware shipped with the unit, reference Figure 3-10 to install the auxiliary
casters to the bottom of the unit.
3. Carefully tilt the unit down.
WARNING: You should not do this alone. This requires two people.
4. Move the unit to its destination.
Section 3 - Installation
3-11
