CAUTION: Do not smoke inside the cab or expose the enclosure to direct flames. Product is FLAMMABLE.
Be sure to read these instructions thoroughly before opening and installing. The installation is best done
when the temperature is 70 degrees F. or warmer. The temperature affects the adhesive Velcro, if conditions
prevent installing in warmer weather it helps to store the adhesive Velcro at room temperature prior to
installation.
1. This cab enclosure is made up of 4 different panels that all come together to enclose the sides and rear of
the vehicle. You may put on different pieces or leave other pieces off to create the enclosure that best
meets your needs.
2. Check over the parts included in the carton with the parts list shown below:
Velcro hook strips
Velcro hook strips
Velcro hook strips
Velcro hook strips
Velcro hook strips
Webbing Straps w/Loop
Webbing Straps w/ Grommets
Webbing Straps w/ Velcro
Screw snaps
Cab enclosure
If any parts are damaged or missing please contact customer service at (606) 845-7439.
3. For these instructions we will be installing the entire enclosure. This will cover every piece so if you
should want to install just parts of the enclosure these instructions should be sufficient. The order of
installation will be as follows:
a. Side Door Panels
b. Rear Window
c. Top
Door Panels:

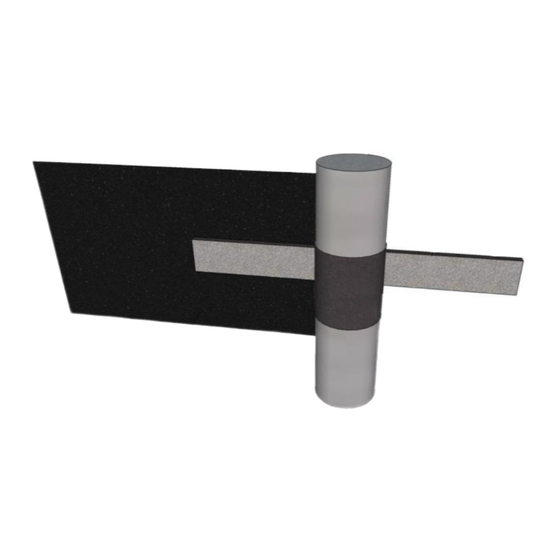

4. Begin installation by hanging the Door Panels from the top by using the 3" adhesive Velcro strips as
shown in the photos on the next page:
2515 Bypass Rd. Flemingsburg, KY 41041
Instructions for Installation and Care of Honda Pioneer 500
Full Cab with Aero-Vent Windshield
13 each (1 extra)
4 Pieces
606-845-7439
HO-P500-FC04
3" long
16 each
6" long
4 each
2 each
9" long
34" long
2 each
38" long
1 each
2 each
2 each
2 each
Advertisement
Related Manuals for FALCON RIDGE HO-P500-FC04
Summary of Contents for FALCON RIDGE HO-P500-FC04
- Page 1 Instructions for Installation and Care of Honda Pioneer 500 Full Cab with Aero-Vent Windshield HO-P500-FC04 CAUTION: Do not smoke inside the cab or expose the enclosure to direct flames. Product is FLAMMABLE. Be sure to read these instructions thoroughly before opening and installing. The installation is best done when the temperature is 70 degrees F.
- Page 2 5. Begin installation of the Door Panels by hanging them from the Double-Sided Strips along the top of the doors. Hold the door up and mark where the each strip is and wrap a 3” adhesive strip around the roll cage.
- Page 3 6. Now move around the door and attach the remaining Velcro strips in the same manner. Down the front of the door place the edge of the door against the side of the windshield and run the Velcro strips under it with the 3”...
- Page 4 9. Next take the front of the door and tuck it inside the vehicle. There are three snaps that will go on the inner panel. NOTE: it helps to place the screw snaps into the sockets on the cabs first, then starting at the top one, push them into the plastic so a small dimple is left behind.
-
Page 5: Rear Window
Rear Window: 11. Begin installation of the Rear Window by hanging it from the top bar first. Take the 38” adhesive Velcro strip and attach it to the top bar facing towards the front of the vehicle. The photo below shows where to install the Velcro. - Page 6 15. The rear straps will attach to the rear rack of the Pioneer. Put the looped end of the strap around the bar and run the other end of the strap through the loop. The photo below shows how this should look. 16.
- Page 7 Cab to either extreme hot or cold temperatures when storing. 3. A special cleaner conditioner is available from Falcon Ridge that will greatly increase the service life of the Cab Enclosure. In addition, if additional hook and loop sets are needed, they can also be ordered.
-
Page 8: Return Policy
Any returns submitted to Falcon Ridge without a return authorization number will be charged a 20% restocking fee. If ordered from one of Falcon Ridge’s many distributors’, you must first call them and see what their return policy is. Once your item reaches our production facility, our customer satisfaction team will inspect your item to ensure unused, factory new condition.
