FALCON RIDGE CA-COM-MAX-SDK01 Instructions For Installation And Care

Instructions for Installation and Care of Can-Am Commander Max Soft Door Kit
Notice: Do not smoke inside the cab or expose the enclosure to direct flames. Cab is Flammable.
Be sure to read these instructions thoroughly before opening and installing the enclosure. The installation is
best done when the temperature is 70 degrees F. or warmer. The temperature affects the adhesive Velcro, if
conditions prevent installing in warmer weather it helps to store the adhesive Velcro at room temperature
prior to installation.
1. Carefully open the carton and remove the enclosure on a large flat surface that is clean and free of dirt.
2. Check over the parts included in the carton with the parts list shown below:
Adhesive Velcro Hook Strips:
"
"
"
"
"
"
"
If any parts are damaged or missing please contact customer service at (606) 845-7439.
3. Begin by holding the door up to the frame and attach it using the double-sided Velcro strips sewn
perpendicular to the edge of the door. At each of the double-sided strips take one of the 3" adhesive
Velcro strips and adhere it to the inside of the frame. Then wrap the double-sided strip around it so that

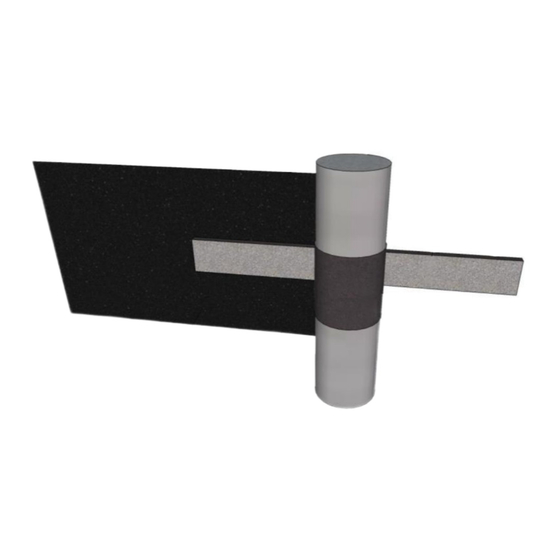

the adhesive strip holds it firmly in place. the following diagrams shows how it should look.
2515 Bypass Rd. Flemingsburg, KY 41041
606-845-7439
CA-COM-MAX-SDK01
" " "
" " "
" " "
" " "
" " "
" " "
" " "
22 each------------3"
2 each------------4"
2 each------------8"
6 each------------10"
2 each------------20"
2 each------------25"
2 each------------40"
