FALCON RIDGE HO-BIGRED-MC01 Instructions For Installation And Care

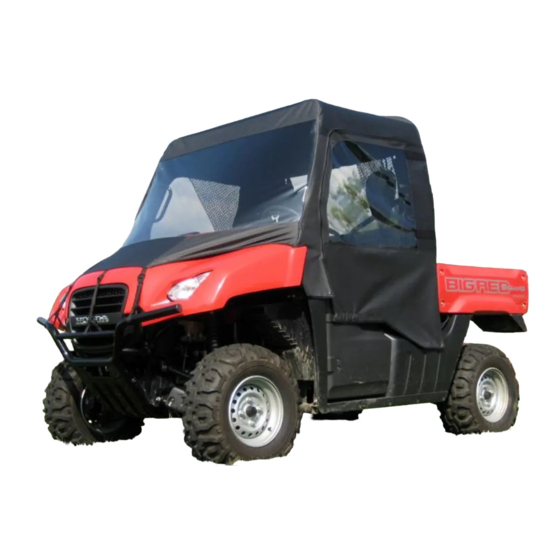

Instructions for Installation and Care of Honda Big Red Mini Cab Enclosure
CAUTION: Do not smoke inside the cab or expose the product to direct flames. Product is FLAMMABLE.
Be sure to read these instructions thoroughly before opening and installing. The installation is best done
when the temperature is 70 degrees F. or warmer. The temperature affects the adhesive Velcro, if conditions
prevent installing in warmer weather it helps to store the adhesive Velcro at room temperature prior to
installation.
1. Carefully open the carton and remove the roll the product out on a large flat surface that is clean and free
of dirt. The presence of dirt may cause soiling to the textile and scratch the clear vinyl window.
2. Check over the parts included in the carton with the parts list shown below:
Velcro hook strips
Velcro hook strips
Velcro hook strips
Screw Snaps
Mini Cab
If any parts are damaged or missing please contact customer service at (606) 845-7439.
3. With assistance, begin by draping the enclosure over the top of the roll cage and center it. Pull the three
straps sewn to the front nose down and wrap them around the front bumper as shown in the photo below.
Run the straps back through the buckle but do not tighten them down yet.
4. Now move around to the rear of the cab and with the bed raised mark the locations for the four screw
studs to match up with the snaps installed into the cab enclosure. Using a #2 Phillips screwdriver install
the screw snaps into the plastic. TIP: You may wish to install the snaps slightly below what it looks like
to ensure a tight fit, or just be sure to pull down on the cab as you mark the locations.
2515 Bypass Rd. Flemingsburg, KY 41041
606-845-7439
HO-BIGRED-MC01
18" long
2 each
10" long
2 each
5" long
4 each
5 each
1 each
