NOTICE: Please check contents of package for any damage and make sure all parts fit correctly and you are happy with the
product before removing protective film. Once the film is removed you cannot return the product for a full refund.
Be sure to read these instructions thoroughly before opening and installing the Honda Aero-Vent
Polycarbonate Windshield.
1. Check over the parts included in the cartons with the parts list shown below:
1 5/8" Loom Clamps
1" Stainless Steels Bolts
Stainless Steel Washers
Plastic Thumb Nuts
Lock Nuts
Slide Fasteners
50" Rubber Gasket
Polycarbonate Brace
Polycarbonate Vent Sliders
Polycarbonate Windshield
If any parts are damaged or missing please contact customer service at (606) 845-7439.

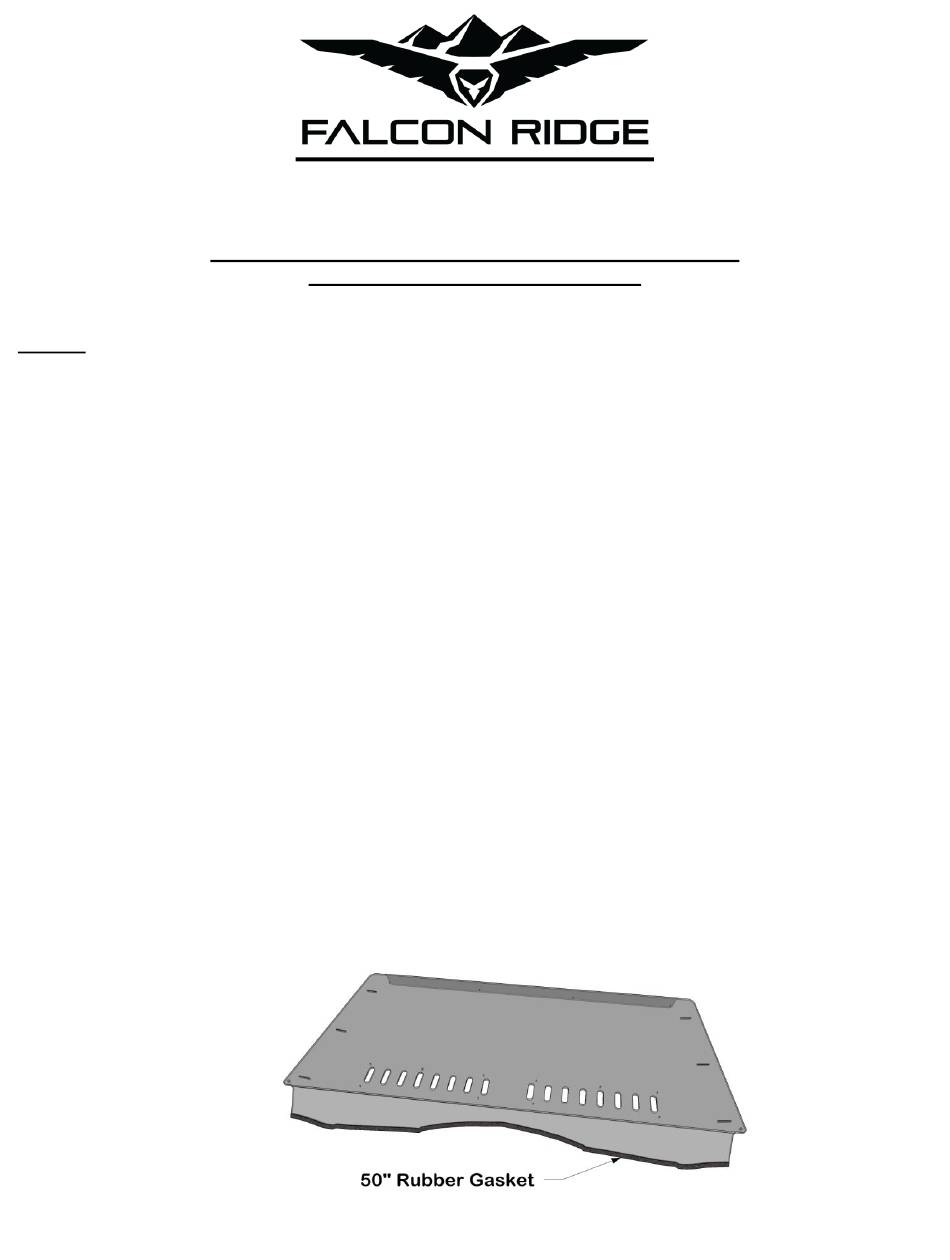

2. Start by pulling it out of the box and find a clean area to lay it down and install the hardware. Begin by
peeling off the protective film. Next take the 50" piece of rubber gasket and starting at one end firmly
place across the bottom of the windshield. You may need to trim off excess gasket. The diagram below
shows where to install the gasket.
2515 Bypass Rd. Flemingsburg, KY 41041
Instructions for Installation and Care of Honda Pioneer 500
Aero-Vent Polycarbonate Windshield
ALL PICTURES BELOW ARE NOT OF HONDA
606-845-7439
HO-500-WD05
6 each
12 each
16 each
8 each
4 each
8 each
1 each
1 each
2 each
1 each
