Parker 023-0475 Specification & Installation Manual

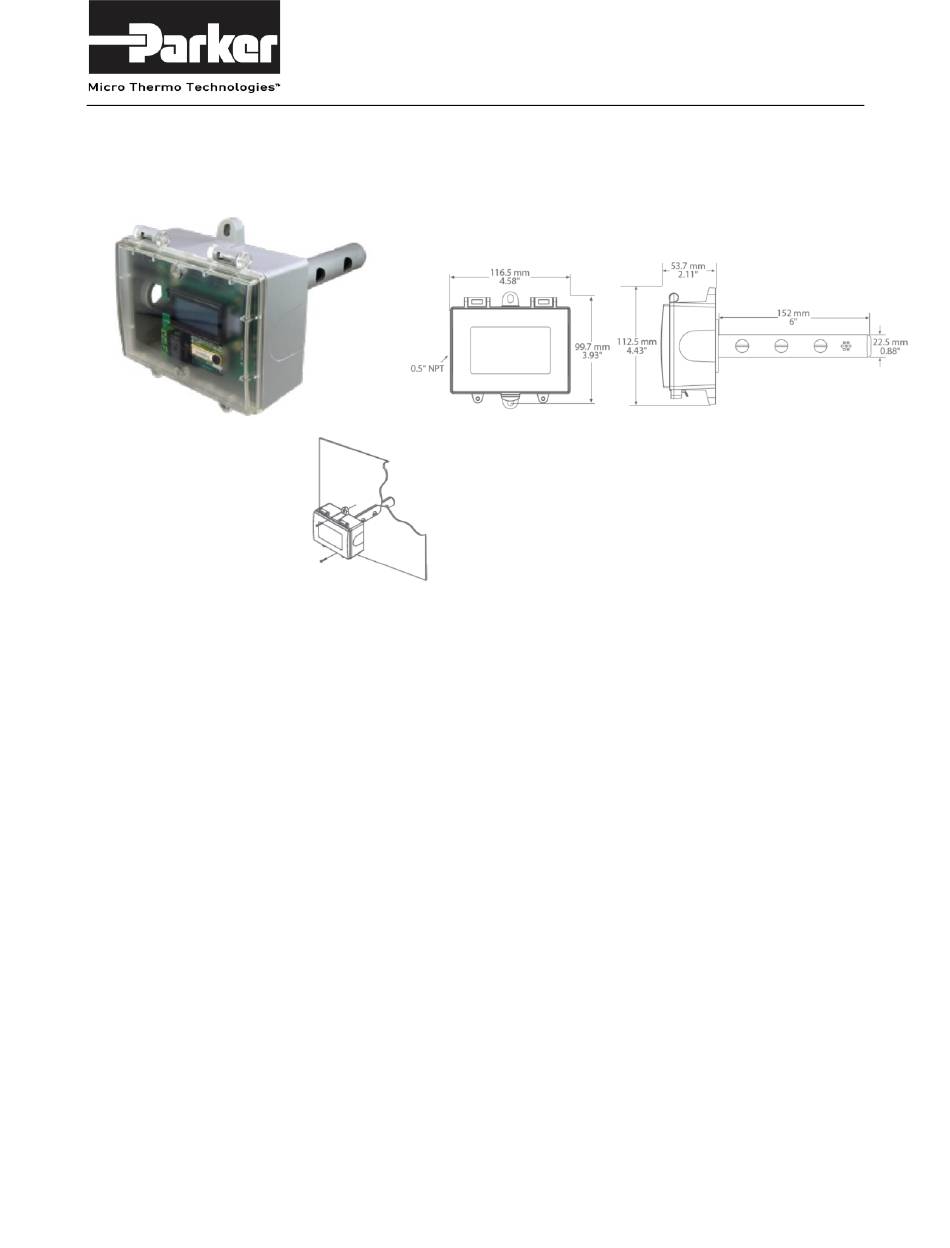

023-0475 Duct CO2 Sensor specification & installation guide

Description:

The duct CO2 transmitter uses a highly accurate and reliable non-dispersive infrared (NDIR) sensor in an attractive
enclosure with a gasketed, hinged cover for duct applications to monitor CO2 levels. The sensor uses dual
wavelength optics and LTA (long term adjustment) signal processing technology to deliver industry leading long term
accuracy and reliability. These features ensure optimum measurement stability for continual monitoring of either
supply or return air measuring.
Standard features include a field selectable output signal of either 4-20 mA, 0-5 Vdc or 0-10 V dc for the highest
versatility, programmable CO2 measurement span and easy menu operation for configuration.
Do not exceed device ratings. This product is not intended for life-safety applications.

SPECIFICATIONS:

Gas Type Detected
..........................................................
Sensor Type
.................................................................
Sensor Accuracy
Measurement Range
.............................................................................................
Response Time
..........................................................................................................
Warm-Up Time
Sensor Life Span
Transmitter Accuracy
.............................
Power Supply
Protection Circuitry
Input Voltage Effect
Output Signal Type
Current Consumption
..............................................................
Voltage:
Output Drive @ 24 Vdc
Ambient Operating Range
Storage Conditions
.................................................................. IP65
Enclosure
...............................................................................
Wiring
72-PHW-1034 R2.0 023-0475 Duct CO2 Sensor Spec&Install.docx
Technical Data
..................................................................................
.....................................
.....................................................................................................
..................
±0.25% of span (including linearity, hysteresis and repeatability)
24 Vdc ±20% or 24 Vac ±10% (non-isolated half-wave rectified)
.......................................................
.....................................................
........................................
.............................
Current: 75 mA @ 24 Vdc max, 150 mA @ 24 Vac max
...............................................
.........................
0 to 50°C (32 to 122°F), 0 to 95 %RH non-condensing
...............................
-40 to 70°C (-40 to 158°F), 0 to 95 %RH non-condensing
Precision carbon dioxide

FEATURES:

• 2 Available Ranges
• Automatic Calibration Logic Program
• Analog out and menu driven set-up
• Solid-state reliability
• Small compact size
• Solid, reliable IP65 Polycarbonate enclosure
Dual channel non-dispersive infrared (NDIR)
±(30 ppm + 3% of measured value)
0-2000 ppm (default), adjustable 1000-10,000 ppm
Reverse voltage and transient protected
Negligible over specified operating range
4-20 mA (3-wire), 0-5 or 0-10 Vdc (field selectable)
50 mA @ 24 Vdc max, 100 mA @ 24 Vac max
Current: 550Ω max Voltage: 10,000Ω min
Polycarbonate UL94-V0 (NEMA 4X)
116mm W x 100mm H x 54mm D (4.6" x 3.9" x 2.1")
Screw terminal block (14 - 22 AWG)
RL 2022-02-09
Parker Hannifin Canada
Micro Thermo Technologies
12855 Brault Street
Mirabel, QC J7J 0C4
Office phone 450-668-3033
