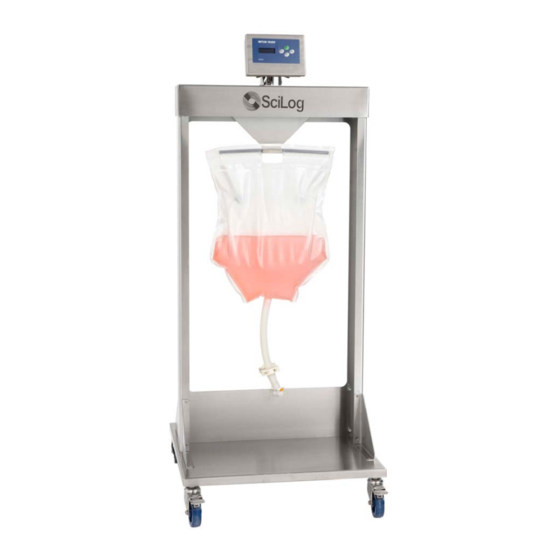

- Page 1 SciLog ® WeighStation Gravimetric Fluid Handling Platform Installation, Operating & Maintenance Instructions...
- Page 2 Parker Hannifin Corporation. Parker has a continuous policy of product development and although the Company reserves the right to change specification, it attempts to keep customers informed of any alterations. This publication is for general information only and customers are requested to contact our Process Filtration Sales Department for detailed information and advice on a product’s...
-
Page 3: Table Of Contents
Contents PRECAUTIONS .......................... PRÉCAUTIONS ......................... Introduction ..........................Warranty ............................ Standards ........................... Installation and Start Up ......................Safety Information ........................WeighStation Specifications ....................... Application Overview ........................Terminal Set Up ........................>Settings ..........................>Calibration of Analog Output (4-20 mA) .................. >Calibration of the Scale ...................... -
Page 4: Precautions
ALWAYS DISCONNECT this equipment from the power source before cleaning or performing maintenance. Contact Parker for parts, information and service. WARNING DISCONNECT ALL POWER TO THIS UNIT BEFORE INSTALLING, SERVICING, CLEANING OR REMOVING THE FUSE. FAILURE TO DO SO COULD RESULT IN BODILY HARM AND/OR PROPERTY DAMAGE. -
Page 5: Précautions
équipement. DÉBRANCHEZ TOUJOURS cet équipement de la source de courant avant de nettoyer ou d’exécuter l’entretien. APPELEZ PARKER pour pièces détachées, renseignements et entretien. ATTENTION DÉBRANCHEZ TOUT COURANT DE CETTE UNITÉ AVANT DE FAIRE L’INSTALLATION, D’EFFECTUER L’ENTRETIEN, LE NETTOYAGE OU AVANT DE RETIRER LE FUSIBLE. -
Page 6: Introduction
+1 805 604 3401 email: bioscience.emea@parker.com email: bioscience.na@parker.com www.parker.com/bioprocessing www.parker.com/bioprocessing Parker customer service personnel will be able to serve you more efficiently if you have the following information: Serial number and model name of the equipment Installation procedure being used ... -
Page 7: Installation And Start Up
Installation & Start Up Installation of the WeighStation must be carried out only by trained personnel in accordance with the relevant regulations and this operations manual. Make sure that the technical specifications and input ratings of the WeighStation platform are observed. See “WeighStation Specifications”. -
Page 8: Weighstation Specifications
WeighStation Specifications General Specifications Overall length: 29in (74 cm); Overall width: 29 in (74 cm); Overall height: 66 in Dimensions (175 cm). Platform height: 7 in (18 cm) including 3.5 in OD locking casters. Max interior width: 25 in (63 cm); Bag holder from base: 45 in (114 cm) 250 lb (114 kg) Weight 110/120 VAC or 208/240 VAC, 50-60 Hz as wired. -
Page 9: Application Overview
Application Overview The WeighStation can be used for any SciLog system for dispensing, metering or filtration - both normal flow filtration (NFF) and tangential flow filtration (TFF). Simply hang the bioprocess container from the scale, connect the communication cable and the plumbing and it’s ready to go. Terminal Bag Holder... -
Page 10: Terminal Set Up
The following is provided to return the system to Parker configuration should the settings change due to preventative maintenance, repair or other cause. - Page 11 g. Under Filter Set Low Pass Filter to Medium ii. Set Stability Filter to Disabled h. Under Stability Set Motion Range to Disabled ii. Exit to Setup Menu 7. With APPLICATION a. Scroll down to Discrete I/O Set Input 1 Polarity to +True ii.
- Page 12 PROFIBUS Setup Sub-Block The PLC Setup block lets you specify how the PROFIBUS interface is used. Several options are available to correspond with your system setup. PROFIBUS Setup – F4.4.1 Provides access to the node address for the terminal. Note that the network baud rate is automatically determined by the terminal.
-
Page 13: Calibration Of Analog Output (4-20 Ma)
Calibration of Analog Output (4-20 mA) The best time to calibrate the 4-20 mA output if that cable is being used, is immediately following the previous procedure. Procedure: While still in Communication - PLC - Analog Output, proceed to Calibrate Output and connect a 4-20 mA calibration meter to read the values. -
Page 14: Calibration Of The Scale
Calibration of the Scale Procedure: 1. Press PRINT for three seconds to enter the configuration menu. 2. Scroll to Calibrate and press PRINT a. At Set Zero, press PRINT Confirm that the scale is empty and press PRINT ii. Zero Capture is performed by the system iii. - Page 15 Notes...
- Page 16 Notes...
- Page 17 Notes...
- Page 18 Parker Hannifin Manufacturing Ltd Parker Hannifin Corporation © 2015 Parker Hannifin Corporation. All rights reserved. Bioscience Division - EMEA Bioscience Division – N.A. Durham Road 2340 Eastman Avenue IOMI-AE3-009_RevB Birtley, Co. Durham Oxnard, California, USA 93030 DH3 2SF, England toll free: 877 784 2234...
