Summary of Contents for Parker SensoNODE Gold

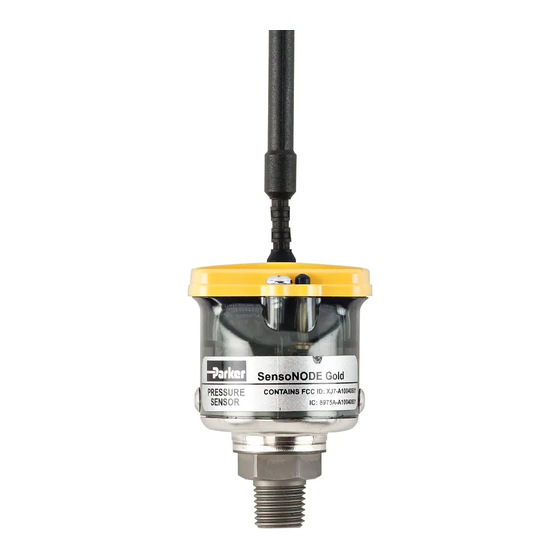

- Page 1 ™ ™ SensoNODE Gold & Voice of the Machine Cloud STARTER KIT...
-
Page 2: Getting Started
Getting Started Start recording your measurements now! The SensoNODE Gold and Voice of the Machine Cloud Starter Kit provides an out-of-the-box solution to begin measuring and recording crucial data immediately. Only three steps are required: 1. Install the sensors 2. Supply power to the collection server 3. Login to Voice of the Machine Cloud. -
Page 3: Installation
2. Thereafter: blink every 20 seconds Black Button (on battery cap) • DO NOT PUSH. Only press button as directed by a Parker associate Gateway Gateway Antenna Installation Please see image to the right for correct antenna locations Electrical Power Installation... - Page 4 1. Review confirmation email, received when your order was processed 2. Click the link, in the confirmation email, to setup your password and complete activation 3. In the future, go to parker-scout.com to login Navigating the Home Dashboard (for administrative setup)

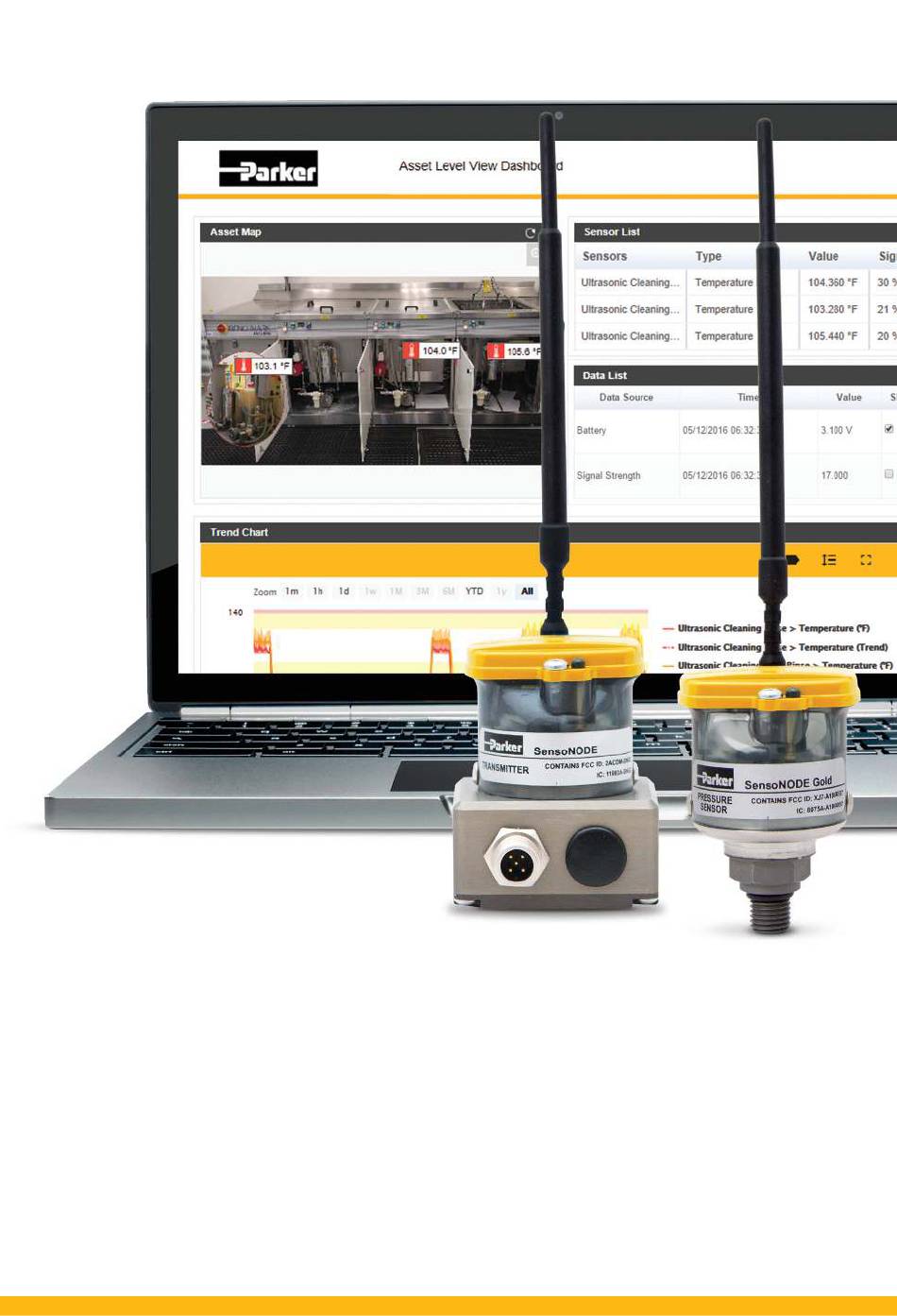

- Page 5 Voice of the Machine Cloud Navigating to Asset / Group Level Dashboard Asset Map View live measurements and alarm conditions. Sensor List View full list and select individual sensors. Trend Chart View and interact with data. Alerts Subscribe / view triggered alerts. Navigating to Sensor Level Dashboard Sensor Location View sensor location.
- Page 6 • Consult the dealer or an experienced radio/TV technician for help. INST 3864-SK Starter Kit Instructions 12/18 Antenna: Parker P/N: QX-008-387 (Gain: 0±1.5 dBi; Parker Hannifin Corporation Impedence – Nominal: 50 ohms) Quick Coupling Division EU Digital Transmission System 8145 Lewis Road...
