Summary of Contents for Parker TGSS 740
- Page 1 TGSS True Ground Speed Sensor (TGSS) 740 User Manual HY33-5005-IB/US Ed. 01/2012 UM-TGSS-740000-00-201201-03...
- Page 2 The user must analyze all aspects of the application, follow applicable industry standards, and follow the information concerning the product in the current product catalog and in any other materials provided from Parker or its subsidiaries or authorized distributors.
-
Page 3: Table Of Contents
Contents Contents 1. Introduction 1.1. Safety symbols 2. Precautions 2.1. General safety regulations 2.1.1. Construction regulations 2.1.2. Safety during installation 2.1.3. Safety during start-up 2.1.4. Safety during maintenance and fault diagnosis 3. Product Description 3.1. TGSS 3.2. Compliances 4. Installation 4.1. -
Page 4: Introduction
Contact the manufacturer if there is anything you are not sure about or if you have any questions regarding the product and its handling or maintenance. The term "manufacturer" refers to Parker Hannifin Corporation. True Ground Speed Sensor (TGSS) 740... -
Page 5: Precautions
Precautions Precautions 2.1. General safety regulations Work on the hydraulics control electronics may only be carried out by trained personnel who are well-acquainted with the control system, the machine and its safety regulations. ARNING Mounting, modification, repair and maintenance must be carried out in accordance with the manufacturer's regulations. -
Page 6: Construction Regulations
Precautions 2.1.1. Construction regulations AUTION The vehicle must be equipped with an emergency stop which disconnects the supply voltage to the control system's electrical units. The emergency stop must be easily accessible to the operator. The machine must be built if possible, so that the supply voltage to the control system's electrical units is disconnected when the operator leaves the operator’s station. -
Page 7: Product Description

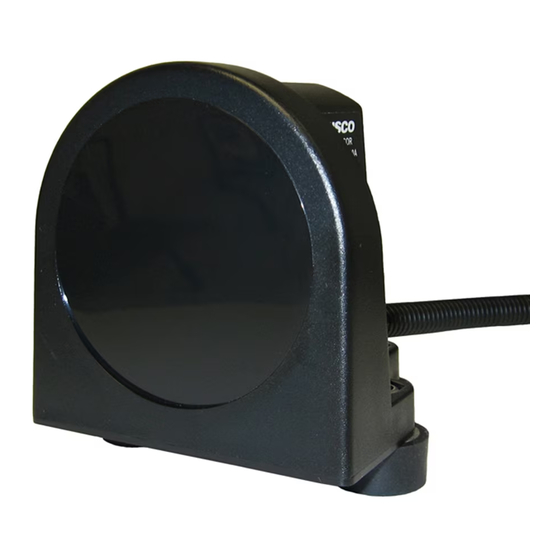

The TGSS has a short cable terminated with a connector. Figure 1: TGSS with Deutsch DT04-4P connector Custom units with different cable lengths and connector types may be configured for OEM customers. Contact your Parker Vansco representative. True Ground Speed Sensor (TGSS) 740... -
Page 8: Compliances
Product Description 3.2. Compliances This device complies with RSS 210 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of this device. -
Page 9: Installation
4.1. Installation Guidelines The TGSS 740 Radar measures motion relative to itself. It is important to prevent unwanted motion in order to achieve optimal performance. The unwanted motion could be of the TGSS unit, or of an object within the radar's line of sight. -
Page 10: Mounting Angle
Installation given to increase the material thickness as well. This will help reduce the bracket's susceptibility to vibration. [7.0] [7.0] [10.5] MIN 6,35 35.0° 5X R 6,35 [.250] [.250] Figure 4: Recommended mounting plate dimensions The TGSS has rubber shock absorber vibration mounts to reduce the effect of machine vibration. -
Page 11: Mounting The Tgss To A Vehicle
Installation 4.1.3. Mounting the TGSS to a vehicle It is up to the original equipment manufacturer (OEM) to ensure the product is securely mounted to the vehicle. The following guidelines are related to physically attaching the TGSS to the mounting bracket on a vehicle: •... -
Page 12: Installation Validation
Installation NFORMATION It cannot be known with certainty if there is a problem introduced from an obstruction in the -10 db area, because there are too many other parameters that come into play (ground texture, reflection coefficient of interference, vibration level of interference, etc.). -
Page 13: Performance Considerations
Installation OTICE It is not required, but is suggested that the user interface that is displaying the TGSS signal be configured to ignore any data when the vehicle is stationary. This will prevent undesired speed readings caused by external sources. 4.2. -
Page 14: Technical Specifications
Technical Specifications Technical Specifications 5.1. Microwave Output The output field strength generated by the TGSS is within the acceptability level set by the FCC, IC, and EC. Carrier frequency: Standard: 24.125 GHz +/ 50 MHz 24.300 GHz +/ 50 MHz Maximum Power: 100 mW, EIRP Beam Width: 13°... -
Page 15: Connectors
Function Output Speed (square wave) Ground Battery (+9 to +16 Vdc) Radar-Present (battery voltage) Custom units with different cable lengths and connector types may be configured for OEM customers. Contact your Parker Vansco representative. True Ground Speed Sensor (TGSS) 740... -
Page 16: Electrical Specifications
Electrical Specifications Electrical Specifications Power supply requirements Parameter Value Operating voltage +9 to +16 Vdc Operating current 120 mA @ 12 Vdc, typical Circuit protection Current limiting device (fuse) of 5A should be installed Output signal Parameter Value VOH ≈ VDC High state –... -
Page 17: Environmental Specifications
Environmental Specifications Environmental Specifications The 740 TGSS conforms to the requirements of: • ASAE EP455 FEB 2003: “Environmental Considerations in the Development of Mobile Agricultural Electrical/Electronic Components”. • ISO EN 14982: "Agricultural and Forestry Machinery - Electromechanical Test methods and acceptance criteria". Refer to Appendix A for a complete list of specifications. -
Page 18: Mechanical Specifications
Mechanical Specifications Mechanical Specifications Weight: Approximately 460 gms with cable Materials: Enclosure, black Xenoy Cable: Water resistant, 18 AWG 4/C, SJOW 8.1. Dimensions The following diagram shows the dimensions of the TGSS: 79.8 [3.14”] 58.9 [2.32”] 41.1 [1.62”] 94.4 [3.72”] 41.4 [1.63”] 112.2... -
Page 19: Tgss Technical Overview
Appendix A Appendix A 9.1. TGSS Technical Overview 9.1.1. Environmental ratings Ref. Test Specification Dev. Test Description Notes EP455_Jul 91 Section 5.1.1 Level-2 Operating Temperature Section 5.1.3 Thermal Shock Section 5.1.2 Level-2 Storage Temperature Section 5.13.1 Humidity Exposure Section 5.13.2 Humidity Soak Section 5.2.2 Altitude, Storage... - Page 20 Appendix A Section 5.16.3 EMC Emissions Section 5.12 Level-2 Electrostatic Discharge Section 5.7 Particle Impact 9.1.1.1. List of Deviations A- Transient Load Dump Transient Parameter EP455 Requirement Test Performed Voltage Amplitude (Vs) 106 Volts 100 Volts 2.5 Ω 2 Ω Source Impedance (Ri) Pulse Duration (td) 188 ms...
- Page 21 Appendix A G- Storage Temperature 1. The samples in this test were subjected to -40°C for 24 hours and then to +85°C for another 24 hours for a total soak time of 48 hours. ASAE EP455 calls for a minimum soak time of 4 hours at each extreme temperature. Transition from one temperature to another was not controlled.
- Page 22 Appendix A K- Electrostatic Discharge 1. The unit is not designed to withstand an ESD ±15 kV. ±8 kV was used for each point of discharge with the exception of the radome where the value used was ±6 kV. 2. Each ESD was delivered using the contact method as opposed to the air discharge method specified in the EP455 document.
-
Page 23: Index
Index Index Appendix A • 19 Compliances • 8 Dimensions • 18 Electrical Specifications • 16 Environmental Specifications • 17 Installation • 9 Installation Guidelines • 9 Installation Validation • 12 Introduction • 4 Line of sight clearance • 11 Mechanical Specifications •...
