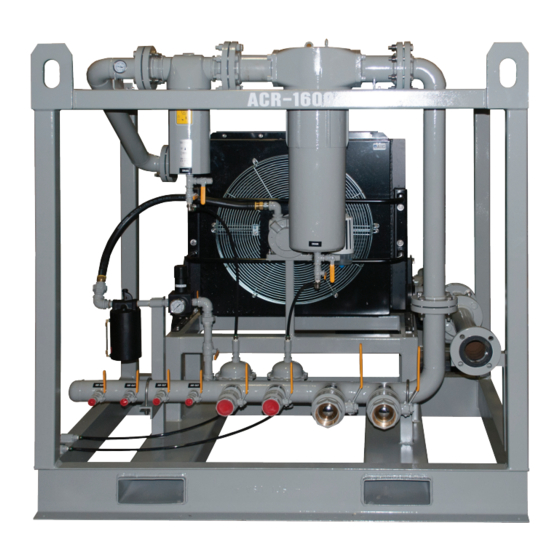

Parker Airtek ACR1600 User Manual

Parker Airtek ACR1600 User Manual

Rental aftercooler package

Advertisement

Quick Links

Rental Aftercooler Package
User Manual
Model ACR1600

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Airtek ACR1600 and is the answer not in the manual?

Questions and answers

Summary of Contents for Parker Airtek ACR1600

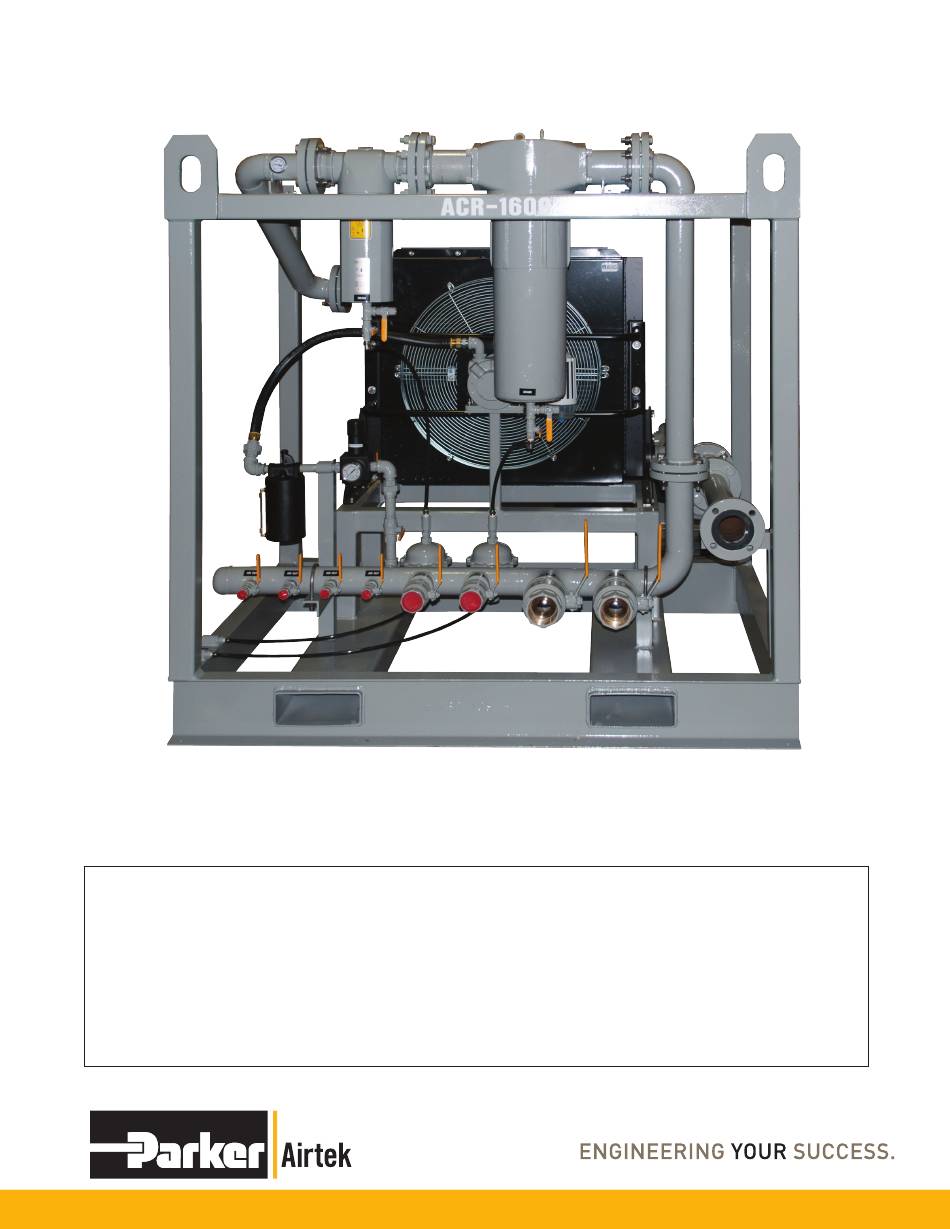

  • Page 1 Rental Aftercooler Package User Manual Model ACR1600...
  • Page 2 Please have the dryer serial number and model ready when contacting the factory. Factory Contact Information Phone 1-716-686-6400 For pricing, availability, and purchase orders: GSFOrders@parker.com For technical support and aftermarket: FAFparts@parker.com For product applications and technical sales: FAFQuotes@parker.com...
  • Page 3: Table Of Contents

    ACR1600 USER MANUAL Contents Safety and Precautions Installation General Operation Flow Schematics Start Up Shutdown Maintenance Spare Parts List Manual Drawing Troubleshooting Warranty Technical Specifications...
  • Page 4: Safety And Precautions

    ACR1600 USER MANUAL SAFETY AND PRECAUTIONS Use EXTREME CAUTION when working in the vicinity of the dryer. Adhere to all warning labels on aftercooler package. Relieve pressure before servicing aftercooler package or associated equipment. Always wear eye protection when in the vicinity of the aftercooler package. Ear protection is recommended, espe- cially if the aftercooler package is being operated without a muffler.
  • Page 5: Installation

    ACR1600 USER MANUAL INSTALLATION Inspect the aftercooler package upon receipt for any damage that may have occurred during shipment. Each aftercooler package is supplied with a User Manual and general arrangement drawing. The initial change of oil is installed in the lubricator. If placed in storage, store in a location protected from the environment.
  • Page 6: General Operation

    ACR1600 USER MANUAL GENERAL OPERATION The rental aftercooler package is designed to remove oil, moisture, and particulate from compressed air off of a compressor. With futher treatment, the air can be used in instrument air, manufacturing processes, air powered equipment, and pipelines. The rental aftercooler package inlet first directs untreated compressed air through a Y-strainer to remove large contaminants before entering an air cooled aftercooler.
  • Page 7: Flow Schematics

    ACR1600 USER MANUAL FLOW SCHEMATIC MODEL ACR1600...
  • Page 8: Start Up

    ACR1600 USER MANUAL START UP Connect compressor discharge to rental aftercooler package air in flange and downstream equipment to aftercooler package air out. Verify all hoses and piping to the aftercooler package are secure. Ensure whip checks are in place for all hoses. Check sight gauge of oil mist lubricator to ensure it is filled.
  • Page 9: Shutdown

    ACR1600 USER MANUAL SHUT DOWN Close aftercooler package inlet isolation valve. Allow aftercooler to run. Open one of the unused manual air out valves to allow full depressurization of the aftercooler package. Verify all pressure is removed from equipment. If rental aftercooler package will be stored in or exposed to freezing temperatures, the drain traps must be emptied of all water.
  • Page 10: Spare Parts List

    ACR1600 USER MANUAL Spare Parts List SPARE PARTS LIST DESCRIPTION QTY. ID (DWG FS11734) AF-ACR1600-060828-1 Maintenance Interval DP42100-L-SS LIQUID FILLED PRESSURE GAUGES 0-200 PSI AS NEEDED 1/4" AIR MOTOR SAFETY RELIEF VALVE PSV1 TP7102-110 AS NEEDED AFTERCOOLER & AIR MOTOR ASSEMBLY AP1600-TWR-SS AS NEEDED AFTERCOOLER FAN BLADES...
  • Page 11: Manual Drawing

    ACR1600 USER MANUAL...
  • Page 12: Troubleshooting

    - High ambient/outdoor temperature: move dryer rental package to a cooler area, avoid direct sunlight on aftercooler Excessive Pressure Drop - Prefilter fully saturated or collapsed: replace element - Excessive flow: reduce air flow rate to within product specs WARRANTY Please contact Parker Hannifin IGFG Division for the current warranty policy.
  • Page 13: Technical Specifications

    ACR1600 USER MANUAL TECHNICAL SPECIFICATIONS Rental Aftercooler Package Technical Specs Lubricator Capacity Air In Air Motor Air Motor Operating Air Out Connections Model Drips per SCFM Connection Setting PSI Loss SCFM Weight LBS Minute 1600 1600 3IN 150LB FLG (4) 3/4" NPT ; (2) 2" NPT ; (2) 3" NPT 2100 Capacity based on 250°F and 110 psig air at rental aftercooler package inlet and 105°F ambient air Equipment is designed to operate in ambient air temperatures between 40°F and 105°F.
  • Page 14 +44 (0) 191 410 5121 +27 11 9610700 www.parker.com/watermakers www.parker.com/processfiltration www.parker.com/africa © 2018 Parker Hannifin Corporation. Product names are trademarks or registered trademarks of their respective companies MAN-ACR-1600 Rev Rev 000 NA 01/2018 Parker Hannifin Corporation Industrial Gas Filtration and Generation Division...
