Parker RK 11-1570 Instructions

RK 11-1570

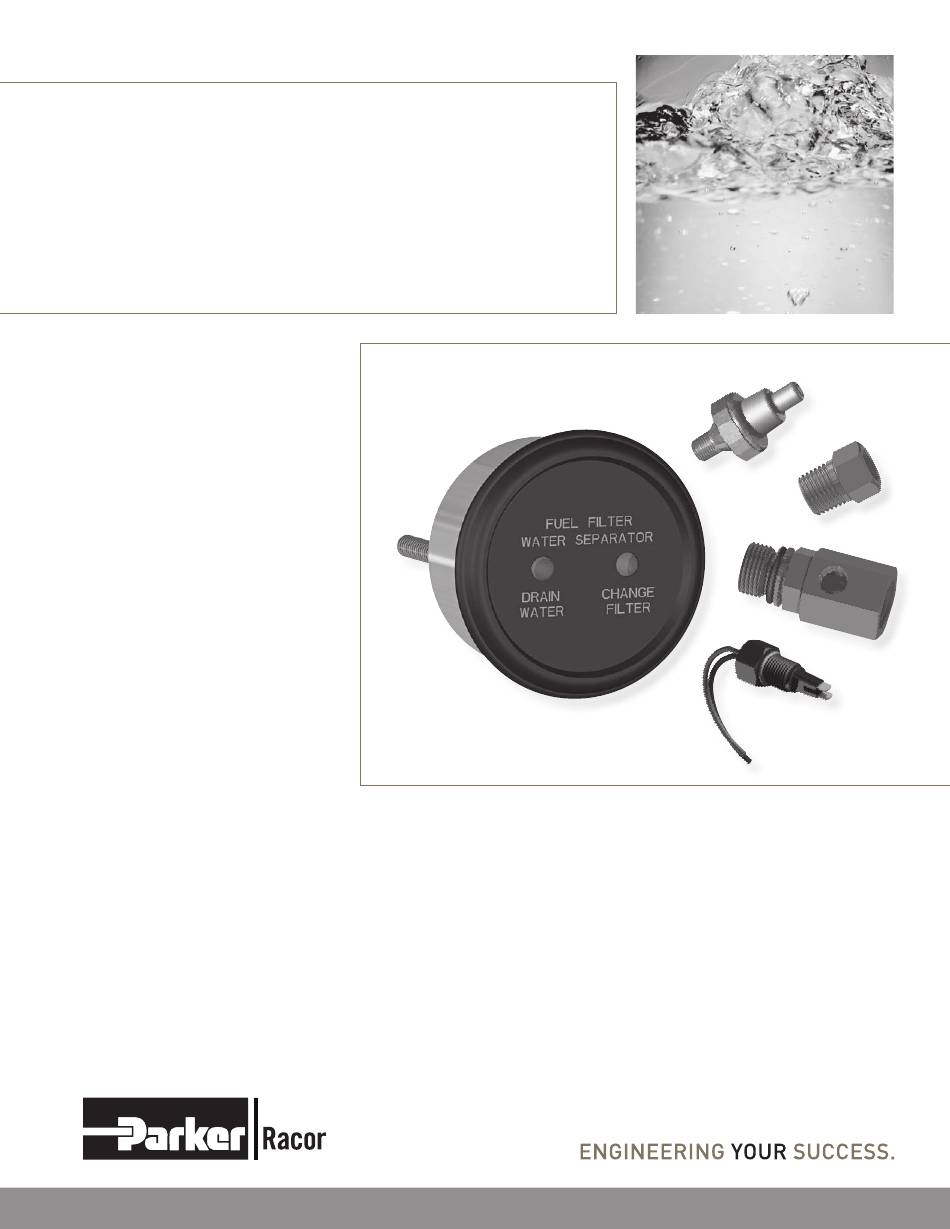

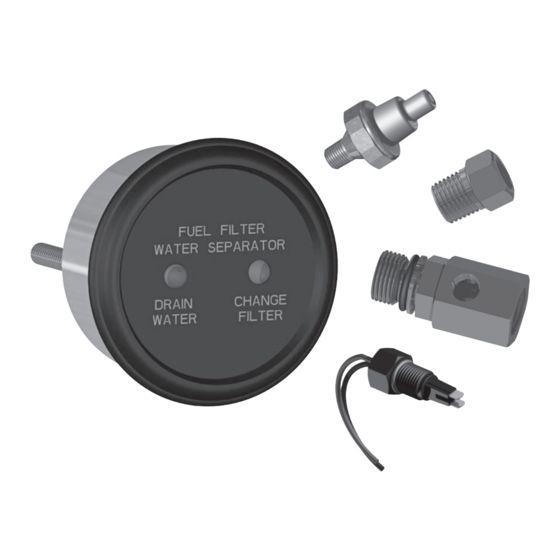

Water Detection and Filter Restriction Kit
Instruction Part Number 12975 Rev A
Overview:
The RK 11-1570 Water Detection and Filter
Restriction Kit is designed to be used
with all Racor Turbine Series or Marine
Turbine Series fuel filter/water separator
assemblies. This kit is manufactured
using the highest quality materials and
is 100% electronically tested before
leaving the factory. A water probe is only a
component in the water detection system
and will not work without an electronic
water detection module. Water detection
modules analyze electrical resistance
at the probe tips and determine if water
is present in fuel. If so, a low voltage
circuit is completed and the warning
light and buzzer are activated alerting
the operator. The bowl must be drained
(with the engine off) to remove trapped
contaminants and water. The detection
module will automatically reset itself once
water is removed.

Contact Information:

Parker Hannifin Corporation
Racor Division
P.O. Box 3208
3400 Finch Road
Modesto, CA 95353
phone 800 344 3286
209 521 7860
fax 209 529 3278
racor@parker.com
www.parker.com/racor
www.parker.com/racorproducts

Important Notes:

• This kit is designed for diesel fuel
applications ONLY. Do NOT use this
kit with gasoline or other volatile fluids.
• The RK 11-1570 is for 12 volt, direct
current applications.
• This detection module has a
self-diagnosis feature that illuminates
the DRAIN WATER LED and sounds
a buzzer at each power-up. If no water
is present, the light and buzzer will
shut off within 2-5 seconds.
• Components and hardware are
included to complete an installation.
Due to the wide variety of applications
this kit can be used on, other parts
may be necessary and are customer
supplied.
