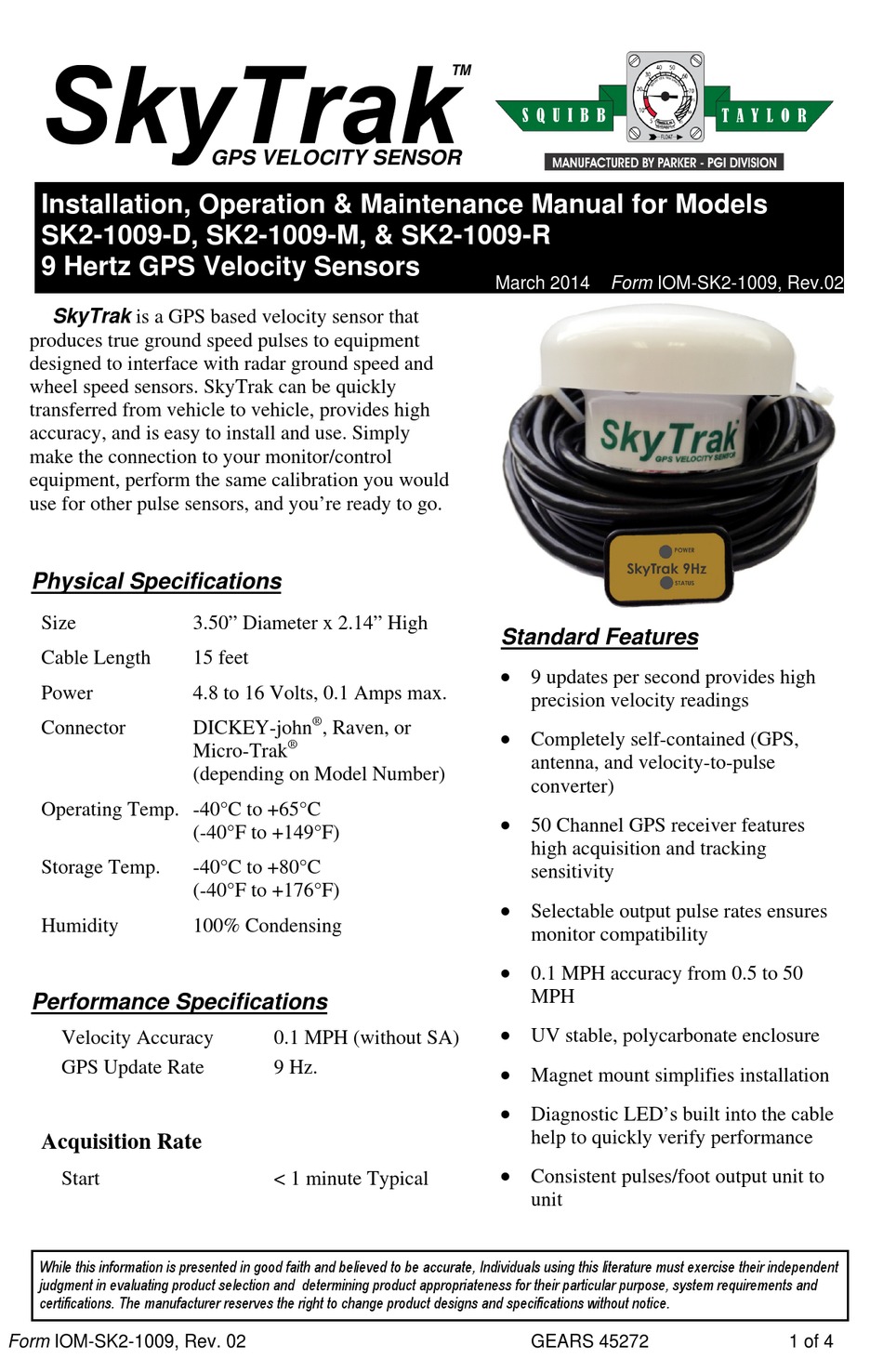

Installation, Operation & Maintenance Manual for Models
SK2-1009-D, SK2-1009-M, & SK2-1009-R
9 Hertz GPS Velocity Sensors
SkyTrak is a GPS based velocity sensor that
produces true ground speed pulses to equipment
designed to interface with radar ground speed and
wheel speed sensors. SkyTrak can be quickly
transferred from vehicle to vehicle, provides high
accuracy, and is easy to install and use. Simply
make the connection to your monitor/control
equipment, perform the same calibration you would
use for other pulse sensors, and you're ready to go.
Physical Specifications
Size
Cable Length
Power
Connector
Operating Temp. -40°C to +65°C
Storage Temp.
Humidity
Performance Specifications
Velocity Accuracy
GPS Update Rate
Acquisition Rate
Start
While this information is presented in good faith and believed to be accurate, Individuals using this literature must exercise their independent
judgment in evaluating product selection and determining product appropriateness for their particular purpose, system requirements and
certifications. The manufacturer reserves the right to change product designs and specifications without notice.
Form IOM-SK2-1009, Rev. 02
GPS VELOCITY SENSOR
3.50" Diameter x 2.14" High
15 feet
4.8 to 16 Volts, 0.1 Amps max.
®
DICKEY-john
, Raven, or
®
Micro-Trak
(depending on Model Number)
(-40°F to +149°F)
-40°C to +80°C
(-40°F to +176°F)
100% Condensing
0.1 MPH (without SA)
9 Hz.
< 1 minute Typical
TM
March 2014
Form IOM-SK2-1009, Rev.02
Standard Features
9 updates per second provides high
precision velocity readings
Completely self-contained (GPS,
antenna, and velocity-to-pulse
converter)
50 Channel GPS receiver features
high acquisition and tracking
sensitivity
Selectable output pulse rates ensures
monitor compatibility
0.1 MPH accuracy from 0.5 to 50
MPH
UV stable, polycarbonate enclosure
Magnet mount simplifies installation
Diagnostic LED's built into the cable
help to quickly verify performance
Consistent pulses/foot output unit to
unit
GEARS 45272
1 of 4
Advertisement
Table of Contents
Related Manuals for Parker Squibb Taylor SkyTrak SK2-1009-D
Summary of Contents for Parker Squibb Taylor SkyTrak SK2-1009-D
- Page 1 GPS VELOCITY SENSOR Installation, Operation & Maintenance Manual for Models SK2-1009-D, SK2-1009-M, & SK2-1009-R 9 Hertz GPS Velocity Sensors March 2014 Form IOM-SK2-1009, Rev.02 SkyTrak is a GPS based velocity sensor that produces true ground speed pulses to equipment designed to interface with radar ground speed and wheel speed sensors.
- Page 2 Wire Color Code: Brown — Ground Blue — V+ Green/Yellow — Output Signal Separate Power Lead (see Power Supply Warnings: Raven) Mounting Considerations The SkyTrak mounting location should have a clear view of satellites on all sides. The SkyTrak unit must be mounted with the dome pointing to the sky. ...
- Page 3 Pulse Output Rate The pulse rate for the SkyTrak is factory set to 58.94 PPS (pulses per second) / MPH (mile per hour). This setting will be suitable for most applications. If your application requires a different rate, a small jumper under the SkyTrak cover allows the pulse output rate to be changed. Available rates are...
- Page 4 The user must analyze all aspects of the application, follow applicable industry standards, and follow the information concerning the product in the current product catalog and in any other materials provided from Parker or its subsidiaries or authorized distributors.
