- Page 1 True Ground Speed Sensor TGSS U s e r G u i d e M S G 3 3 - 5 0 0 5 - I B / U S U G - T G S S - 7 4 0 0 5 1 - 2 0 1 9 0 8 - 0 0 3...
- Page 2 +1 204 478 1749 http://www.parker.com/ecd Copyright 2019 © Parker Hannifin Corporation. All rights reserved. No part of this work may be reproduced, published, or distributed in any form or by any means (electronically, mechanically, photocopying, recording, or otherwise), or stored in a database retrieval system, without the prior written permission of Parker Hannifin Corporation in each instance.
-
Page 3: Publication History
Publication History The following table provides an overview of the changes made to this document over the course of its publication history. Revision Description of Change Rev. 001 First release of this document Rev. 002 Update template and naming, 5/12/2017 Rev. -
Page 5: Table Of Contents
2.1. Installation Guidelines ......................10 2.1.1. Mounting Bracket ....................... 11 2.1.2. Mounting Angle ......................12 2.1.3. Mounting the TGSS to a vehicle ................12 2.1.4. Line of sight clearance ....................13 2.1.5. Installation Validation ....................15 2.2. Performance Considerations ....................16 3. - Page 6 Contents 7.1.1. Environmental ratings ....................24 8. Index ..........................28 TGSS...
-
Page 7: Safety
Contact the manufacturer if there is anything you are not sure about or if you have any questions regarding the product and its handling or maintenance. The term "manufacturer" refers to Parker Hannifin Corporation. Safety symbols The following symbols are used in this document to indicate potentially... -
Page 8: Welding After Installation
Safety during installation Incorrectly positioned or mounted cabling can be influenced by radio signals, which can interfere with the functions of the system. TGSS... -
Page 9: Safety During Start-Up
Safety Safety during start-up Danger! Risk of death or injury. Do not start the machine's engine before the control system is mounted and its electrical functions have been verified. Do not start the machine if anyone is near the machine. Safety during maintenance and fault diagnosis Before performing any work on the hydraulics control electronics, ensure that ▪... -
Page 10: Product Description

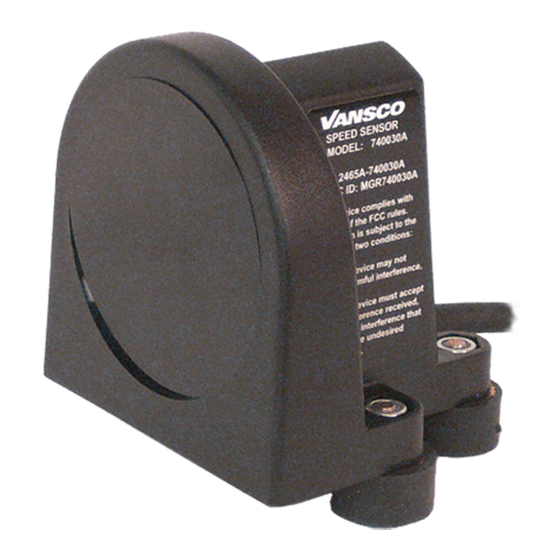

(Doppler shift). The ground speed is calculated by measuring the change in frequency. The TGSS is enclosed in a black plastic case, which is potted to cover the electronics. The TGSS has a short cable terminated with a connector. -
Page 11: Compliances
Hereby, Parker Hannifin Corporation declares that the radio equipment type 740 TGSS is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address under Product Support: https://ph.parker.com/us/17616/en/tgss-true-ground-speed-sensors... -
Page 12: Installation
Installation 2. Installation The TGSS is typically installed at a height of 0.3 to 1 meter (1 to 3 feet) above the ground. The maximum height of installation is 1.22 meters (4 feet). The sensor mounts to a bracket on the underside of the vehicle where the sensor may be directed in either the forward or reverse direction. -
Page 13: Mounting Bracket
[.250] Figure 4: Recommended mounting plate dimensions The TGSS has rubber shock absorber vibration mounts to reduce the effect of machine vibration. The vibration mounts have an internal M6 thread, the recommended installation torque is 5.4-7.3 Nm (48-65 in lbs). -
Page 14: Mounting Angle
The following guidelines are related to physically attaching the TGSS to the mounting bracket on a vehicle: ▪ The TGSS should be secured with bolts in all 3 bolt holes using 6 mm Hex Head bolts and locking washers. The bolts should be tightened to 5.4-7.3 Nm (48-65 in lbs). -
Page 15: Line Of Sight Clearance
-3dB level and the larger region is the -10 dB level. These areas are the relative sensitivity of the TGSS to motion. The-3dB region is the area where the TGSS is most sensitive. This path must be clear of any objects. Interference in this area will have a high likelihood of degrading the performance of the product's ability to provide accurate speed measurement. - Page 16 The model is based on a mounting height of 1 meter. Any other height will require that the radar beam model be stretched ratiometrically with the new height. This is done by looking at the model as spherical coordinates and scaling the radius proportionally to the 1 meter in the model. TGSS...
-
Page 17: Installation Validation
With the vehicle stationary over a smooth surface, slowly sweep the engine rpm over it’s range. Monitor the TGSS speed output to see if any false speed is shown. If a false speed reading occurs, there is either a line of sight or vibration issue. -
Page 18: Performance Considerations
This will prevent undesired speed readings caused by external sources. 2.2. Performance Considerations The TGSS is a K Band radar. There are many factors that may influence its operation. ▪ The further the ground is from the radar, the lower the return signal strength. -
Page 19: Technical Specifications
Technical Specifications 3. Technical Specifications 3.1. Microwave Output The output field strength generated by the TGSS is within the acceptability level set by the FCC, IC, and EC. Carrier frequency: Standard: 24.125 GHz +/ 50 MHz 24.300 GHz +/ 50 MHz Maximum Power: 100 mW, EIRP Beam Width: 13°... -
Page 20: Radar-Present Output
100 mA @ 12 V. 3.4. Connectors There are 2 standard connectors available for the TGSS. For units that do not have the Radar-present output the connector is an AMP Superseal 1.5 series, housing part number 282105-1. - Page 21 Figure 8: Deutsch DT04-4P Deutsch Connector Pinout Function Output Speed (square wave) Ground Battery (+9 to +16 Vdc) Radar-Present (battery voltage) Custom units with different cable lengths and connector types may be configured for OEM customers. Contact your Parker Vansco representative. User Guide...
-
Page 22: Electrical Specifications
Current limiting device (fuse) of 5A should be installed 4.1.1.1.2. Output signal Parameter Value VOH VDC – 0.6V – (IOH(mA) X 1k) High state input 16mA (Source) VOL 1.0 V at 10 mA Low state 35mA (Sink) TGSS... -
Page 23: Environmental Specifications
Environmental Specifications 5. Environmental Specifications The 740 TGSS conforms to the requirements of: ▪ ASAE EP455 FEB 2003: “Environmental Considerations in the Development of Mobile Agricultural Electrical/Electronic Components”. ▪ ISO EN 14982: "Agricultural and Forestry Machinery - Electromechanical Test methods and acceptance criteria". -
Page 24: Mechanical Specifications
Mechanical Specifications 6. Mechanical Specifications Weight: Approximately 460 gms with cable Materials: Enclosure, black Xenoy Cable: Water resistant, 18 AWG 4/C, SJOW TGSS... -
Page 25: Dimensions
Mechanical Specifications 6.1. Dimensions The following diagram shows the dimensions of the TGSS: 79.8 [3.14”] 58.9 [2.32”] 41.1 [1.62”] 94.4 [3.72”] 41.4 [1.63”] 112.2 [4.42”] 104.4 [4.11”] Figure 9: Dimensions of the TGSS User Guide... -
Page 26: Tgss Technical Overview
Appendix A 7. Appendix A 7.1. TGSS Technical Overview 7.1.1. Environmental ratings Ref. Test Specification Test Description Dev. Notes EP455_Jul 91 Section 5.1.1 Level-2 Operating Temperature Section 5.1.3 Thermal Shock Section 5.1.2 Level-2 Storage Temperature Section 5.13.1 Humidity Exposure Section 5.13.2 Humidity Soak Section 5.2.2... - Page 27 Appendix A Section 5.11.6.2 Transient Mutual Coupling Signal Lines Section 5.16.1 EMC Immunity to radiated EM field Section 5.16.3 EMC Emissions Section 5.12 Level-2 Electrostatic Discharge Section 5.7 Particle Impact 7.1.1.1. List of Deviations 7.1.1.1.1. A- Transient Load Dump Transient Parameter EP455 Requirement Test Performed Voltage Amplitude (Vs)
- Page 28 Transition from one temperature to another was not controlled. Effects of sudden temperature changes were performed in a separate test. 2. Power was applied to the samples throughout the test with functional verification being performed before the end of the elevated and reduced temperatures. 7.1.1.1.8. I- Operating Temperature TGSS...
- Page 29 Appendix A 1. The samples underwent 10 cycles while EP455 requires 1 cycle only. 2. Power was applied as indicated on the figure above, while EP455 required application of power throughout the test. 3. Samples were functionally tested after soaking and while still at extreme temperatures.
- Page 30 Line of sight clearance • 13 Mechanical Specifications • 22 Mounting Angle • 12 Mounting Bracket • 11 Mounting the TGSS to a vehicle • 12 Performance Considerations • 16 Product Description • 8 Publication History • iii Safety • v Safety during installation •...
- Page 32 True Ground Speed Sensor TGSS User Guide MSG33-5005-IB/US...
