Parker Hannifin GmbH
Tube Fittings Division Europe
SensoControl
Am Metallwerk 9, 33659 Bielefeld
Phone ++49-521-4048-0
Fax
++49-521-4048-4280
Bedienungsanleitung
Operating Instruction
Mode d'emploi
ServiceJunior
Bitte vor Gebrauch aufmerksam lesen !
Please read carefully before use !
S.V.P. lire attenivement avant emploi !
Advertisement
Table of Contents
Related Manuals for Parker SensoControl
Summary of Contents for Parker SensoControl
- Page 1 ® Parker Hannifin GmbH Tube Fittings Division Europe SensoControl Am Metallwerk 9, 33659 Bielefeld Phone ++49-521-4048-0 ++49-521-4048-4280 Bedienungsanleitung Operating Instruction Mode d’emploi ServiceJunior Bitte vor Gebrauch aufmerksam lesen ! Please read carefully before use ! S.V.P. lire attenivement avant emploi !
-
Page 2: Table Of Contents
Table of Content Table of Content....................1 1 General ......................1 Safety Hints / Product Selection ..................1 Model Versions........................ 1 2 Getting Started ....................2 Replacement of Battery ....................2 3 Functions and keys ..................3 Display Mode........................4 Menu Functions ....................... -
Page 3: Table Of Content
Especially the improper assembly of the pressure gauge and the associated adapters may lead to the tearing off of the pressure gauge and/or to fluid leaks. Please contact your Parker Hannifin Sales Office for Service, Repair and calibration. 1.2 Model Versions Versions and scope of supply Default setting “bar”... -
Page 4: Getting Started
Getting Started The ServiceJunior will be delivered with assembled batteries. The device is ready for use after switching on. 2.1 Replacement of Battery Caution ! To replace the battery switch off the device first. Remove the battery lid. Build in the new battery acc. to instructions. Pay attention to polarity. -
Page 5: Functions And Keys

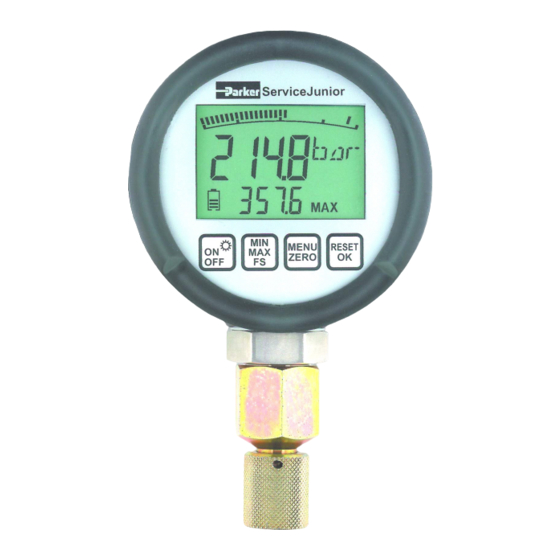

Functions and keys Display 4 ½ digit LCD with back light function readouts and menu functions are displayed. ServiceJunior „bar-graph“ with peak & hold function Actual read out (character size 15mm) MIN/MAX or FullScale (FS) (8 mm) Battery status MENU ZERO MENU ZERO... -
Page 6: Display Mode
3.1 Display Mode Operating the instrument in the display mode, the actual pressure (ACT) will be displayed. The actual readout will be shown with its corresponding unit. MIN, MAX or FS-will be shown at the additional display line. Display Description bar-graph The actual reading will be displayed graphical by pixels. -
Page 7: Connect To The Hydraulics
Connect to the Hydraulics According to the various models (UNF/BSPP port) the ServiceJunior is designed with BSPP or 7/16-UNF male studs. Please make sure that the device is properly mounted to avoid malfunctions. Please do not do the assembly while the ServiceJunior is pressurized Model SCJR-xxx-02 SCJN-xxx-01... -
Page 8: Operation Of The Servicejunior
5 Operation of the ServiceJunior 5.1 Switch on (ON) Self test running Press MIN FS Indication of full-scale range (FS) Unit (bar) SCJN-xxx-01 Unit (PSI) SCJR-xxx-02 Auto Power Off function enabled Automatic switch off after 15 min. This configuration can be selected within MENU. -
Page 9: Switch Off (Off)
5.2 Switch off (OFF) Press key (quick) 5.3 Back light function Hold down the key (2 sec). The back light illumination will be switched off after 30 sec. 5.4 MIN/MAX Display The additional display line can be switched to MIN/MAX or FS format. The scroll function indicates MIN / MAX after the other. -
Page 10: Zero Point Adjustment (Zero)
5.7 Zero Point Adjustment (ZERO) When undesirable deviations displayed while the system is pressure less (Atmospheric pressure), a new zero point can be set manually. Processing a zero point adjustment the actual reading is set to zero. Please operate this function only for pressure less application in order to avoid failed results. -
Page 11: Automatic Switch Off
5.9 Automatic Switch Off MENU ZERO Press for 2 sec According to the SerbviceJunior configuraton two different setups are possible. Automatic switch off or continously operation: PO On PO OFF When is presseed, the When is pressed, the device automatic switch off is enabled. must be switched off manually. -
Page 12: Setting Engineering Units
5.10 Setting Engineering Units MENU ZERO Press for 2 sec ⇔ MENU ZERO Press to skip MENU ZERO Press quickly The next unit appears Confirm selected unit page 10... -
Page 13: Technical Data
6 Technical Data: Version Digital pressure gauge with ACT - MIN and MAX Display bar graph display (33 segments) with peak and hold function 4 ½ digit LC display (15 mm) with back light illumination Battery powered with low power electronic system. Life time cycle 1.500 hrs (No back light function) Pressure port stainless steel 1.4404 1/4 BSPP (ISO 1179-2) or... - Page 14 Digital Pressure Gauge ServiceJunior Range Display Display Display Display Display mbar -1 . . 16 -1,00...16,00 -14,5...200,0 -999...16000 -100...1600 0 . . 100 0...100,0 0...1500 0...10000 0...10,00 0 . . 400 0...400,0 0...6000 0...4000 (x10) 0...40,00 0 . . 600 0...600,0 0...9000 0...6000 (x10)
