SciLog
SciPres
®
®
Pressure Monitor & Sensor
Installation, Operating & Maintenance Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SciLog SciPres and is the answer not in the manual?

Questions and answers

Related Manuals for Parker SciLog SciPres

Summary of Contents for Parker SciLog SciPres

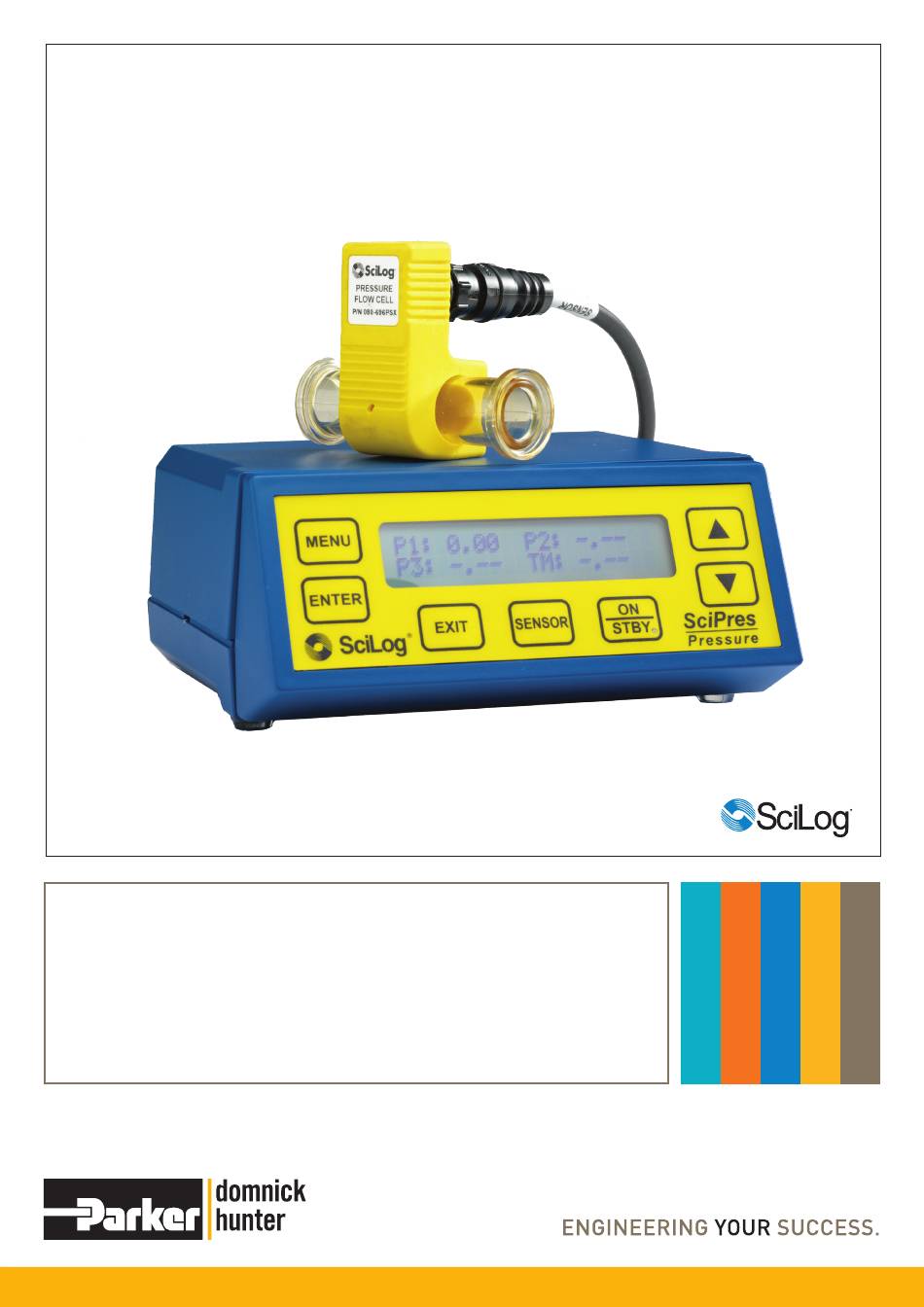

  • Page 1 SciLog SciPres ® ® Pressure Monitor & Sensor Installation, Operating & Maintenance Instructions...
  • Page 2 ® ® Parker domnick hunter has a continuous policy of product development and although the Company reserves the right to change specification, it attempts to keep customers informed of any alterations. This publication is for general information only and customers are requested to contact our Process Filtration Sales Department for detailed information and advice on a product’s...

  • Page 3: Table Of Contents

    Contents Maintenance & Cleaning ......................SciPres Specifications - Monitor ....................® SciPres Specifications - Sensors ....................® SciDoc Documentation Software for PC ................... Part A: SciPres Pressure Sensor Hardware................® 1.0 Overview ..........................2.0 Front Panel: Data Entry & Display ..................
  • Page 4 DO NOT allow untrained personnel to operate, clean, inspect, service or tamper with this equipment. ALWAYS DISCONNECT this equipment from the power source before cleaning or performing maintenance. Contact Parker domnick hunter for parts, information and service. WARNING DISCONNECT ALL POWER TO THIS UNIT BEFORE INSTALLING, SERVICING, CLEANING OR REMOVING THE FUSE.
  • Page 5 équipement. DÉBRANCHEZ TOUJOURS cet équipement de la source de courant avant de nettoyer ou d’exécuter l’entretien. APPELEZ PARKER pour pièces détachées, renseignements et entretien. ATTENTION DÉBRANCHEZ TOUT COURANT DE CETTE UNITÉ AVANT DE FAIRE L’INSTALLATION, D’EFFECTUER L’ENTRETIEN, LE NETTOYAGE OU AVANT DE RETIRER LE FUSIBLE.
  • Page 6 +1 805 604 3401 email: dhprocess@parker.com email: dhpsales.na@parker.com www.parker.com/dhpharma www.parker.com/dhsingleuse Parker domnick hunter customer service personnel will be able to serve you more efficiently if you have the following information: • Serial number and model name of the equipment •...

  • Page 7: Maintenance & Cleaning

    Warranty Country specific information can be found at: www.parker.com/termsandconditions Standards The SciPres monitor and sensor conform ® to the following standards: • EN 61326-1:2006, Class B • EN 6100-3-2:2006 • EN 6100-3-3:1995 +A1:2001 +A2:2006 • EN 61010-1 Issued: 2001/03/01 •...

  • Page 8: Scipres ® Specifications - Monitor

    Hardware Specifications - Monitor Dimensions W: 6.0¨ (15.2 cm); Height 2.75¨ (7.0 cm); D: 5.5¨ (14.0 cm) Weight 1.5 lb (0.69 Kg) Enclosure Molded Plastic / Stainless Steel 110-120 or 220-240 V , 60/50 Hz AC Adaptor, 12 VDC, 500 ma Output, Power Centre positive.

  • Page 9: Scipres ® Specifications - Sensors

    Specifications - Sensors Power 5 VDC provided by SciPres Pressure Monitor. ® Choice of five sizes: Luer, ” Barb, ” Barb, Fluid Connections ” Tri-Clover (TC) Sanitary and 1” Tri-Clover (‘Ladish’) Sanitary. Polysulphone meets USP Class VI and FDA 21 CFR 177.1520, all wetted Wetted Materials materials made with animal-free compounds.

  • Page 10: Scidoc Documentation Software For Pc

    SciDoc Documentation Software for PC SciPres Pressure Sensor System Documentation Software Package - purchased separately. ® • Excel spreadsheet with custom macros for data compilation. Includes WinWedge interface software. Sent ready-to-use. • Complete process analysis with graphing of data. • Real-time verification and documentation of process parameters.

  • Page 11: Part A: Scipres ® Pressure Sensor Hardware

    Part A: SciPres ® Pressure Sensor Hardware 1.0 Overview The SciLog SciPres pressure sensor system consists of two major components, the SciPres ® ® ® pressure monitor, with its power supply, and the single-use SciPres pressure sensor, with its cable. ®...

  • Page 12: Front Panel: Data Entry & Display

    2.0 Front Panel: Data Entry & Display The front panel includes an alphanumeric display and a membrane keypad to select operational modes and alarm settings. The display is a two line, 20 character, liquid crystal display (LCD). The display is backlit to allow easy viewing over a wide range of lighting conditions. The keypad consists of seven keys whose function does not change.

  • Page 13: Back Panel: Interface Options

    3.0 Back Panel: Interface Options The SciPres pressure sensor back panel provides interfacing ports for: ® • Single-use SciPres pressure sensor sensors: Female 9 pin twist-lock, ® labelled “Sensor P1, P2, and P3”. • Analog and TTL Output: Female DB25, labelled “Output”. •...

  • Page 14: Pin Out Of The Db25 Female 'Output' Connector

    4.0 Pin Out of the DB25 Female ‘Output’ Connector Analog1+ Analog1- Vpwr 0.1A Analog2+ Analog2- Analog3+ Analog3- Analog4+ Analog4- 1.0K OUT1N 1.0K OUT2N OUT1 1.0K OUT3N OUT2 OUT3 1.0K OUT4N OUT4 D Connector 25 Analog Outputs For 4-20 ma output of Pressure at P1 (Analog 1), use pins 2 (4-20 -) and 14 (4-20 +). If excitation is needed in the loop, connect pin 1 (Vpwr) to pin 14 (4-20 +), and connect the output cable to pin 2 (4-20 -) and pin 15 (Gnd).
  • Page 15 The use of an end-user supplied analog loop power source is presented below: TTL Alarm Outputs P1 Hi / Lo Alarm: TTL 1 Pins 11 (Out0) and 13 (Gnd) P2 Hi / Lo Alarm: TTL 2 Pins 24 (Out1) and 13 (Gnd) P3 Hi / Lo Alarm: TTL 3 Pins 12 (Out2) and 13 (Gnd) TM or DP Hi / Lo Alarm:...

  • Page 16: Single-Use Pressure Sensors

    5.0 Single-Use Pressure Sensors Luer ¨ Barb ¨ Barb ¨ Tri-Clover 1¨ Tri-Clover ‘Ladish’ Part Code (Packs of 5) Max. Flow Rate* Compatible Max. Operating Connector Type Tubing Sizes Pressure 2-pt. Calibration 3-pt. Calibration (L / min) (gpm / psi) (m / h / bar) Luer 080-699PSX-5...

  • Page 17: Part B: Scipres ® Pressure Sensor Monitor Software

    Part B: SciPres Pressure Sensor Monitor Software ® 1.0 Software Overview The SciPres pressure monitor digitally displays inputs from up to three SciPres pressure sensors ® ® simultaneously, while also calculating and displaying either trans-membrane or differential pressure. It has also been equipped with a “Supervisor Password”, a “Max Pressure Watchdog”, and a “Filter”...

  • Page 18: Main Menu

    2.0 Main Menu Main Screen See HI Range above Menu P1: 0.00 P2: 0.00 See 3.1 See 3.11 HI-ALARM P1: 0.0 psi P3: 0.00 TM: 0.00 Menu psi, kPa, bar, mmHg Menu Min: 0.00 See 3.2 See 3.12 PRES UNITS: psi LO-ALARM P1: 0.0 psi 689.4 kPa, 6.80 bar...
  • Page 19 2.0 Main Menu, Continued: SUMMARY: This menu allows the setting of various parameters as they relate to your process. Use “Menu” to scroll through the menu, the up/down arrow keys to scroll through choices, and “Enter” to select the choice. 2.1 MAIN SCREEN: Displays all three pressures, P1, P2, P3 and the calculated Trans-Membrane pressure, TM, or Differential pressure DP.

  • Page 20: Custom Calibration

    3.0 Custom Calibration Menu Press “Sensor” button. The following will be displayed: SENSOR PORT: Use up / down arrows to choose port, press “Enter”, and calibration data will reload. CUSTOM CAL..Press Enter See 3.1 SENSOR PORT: Enter SENSOR ZERO: See 3.2 YES &...
  • Page 21 3.0 Custom Calibration Menu, Continued: SUMMARY: This menu shows the settings used for performing a custom calibration of a given SciPres pressure sensor. This allows you to calibrate zero the unit for existing pressure offsets, ® and re-span the unit with a NIST traceable pressure source if you wish. This procedure adds a modification to the existing Factory Calibration, it does not modify it, and it can be reset if needed.

  • Page 22: Reduced Pump Pulsation: Improved Sensor Precision

    4.0 Reduced Pump Pulsation: Improved Sensor Precision Pressure versus Time 7.00 FILTER-1 FILTER-2 FILTER-4 FILTER-3 6.00 FILTER-6 5.00 FILTER-5 4.00 3.00 15:27:22 15:28:48 13:30:14 15:31:41 15:33:07 15:34:34 15:36:00 15:37:26 TIME This graph shows the effects of the Filter setting on the SciPres monitor and the incoming signal ®...

  • Page 23: Scipres ® Pressure Sensor Printout Format

    5.0 SciPres Pressure Sensor Printout Format ® RS-232 Output as sent to Serial Printer or Windows HyperTerminal: 03/16/09 0.51 07/07/15; Pressure v0.51; UNITS=psi ; ALARMS: HP1= 0.00; LP1= 0.00; HP2= 0.00; LP2= 0.00; HP3= 0.00; LP3= 0.00; HTM= 0.00; LTM= 0.00; Sensor 1 ID=S5-210246-0314;...

  • Page 24: Part C: Scipres ® Data

    Part C: SciPres Data ® 1.0 Data Collection SUMMARY: The SciPres pressure monitor has two serial ports. The serial port which is labelled ® “Printer / PC,” is used for RS-232 serial communication with a PC or serial printer. The second serial port is disabled.
  • Page 25 The following screen will be displayed: Choose the Com Port you have the SciPres pressure monitor connected to. Click on the “OK” ® button and WinWedge will start, showing itself as an icon in your system tray. You are then presented with the next screen: WinWedge Icon Enter all of the approprite Operator information in this dialog box and click on “OK”.
  • Page 26 When ready, turn on the SciPres pressure monitor, pressing the “On / Stby” button. The monitor ® will load the calibration data from the sensors, and place that information in the spreadsheet. All remaining data generated will automatically be placed in the cells of the spreadsheet, and the charts populated with the same data.
  • Page 27 When you are finished with a run, the screen will look similar to this one: Click on “File”, “Save As” and choose an appropriate file name based on your needs and store it in a different folder. When ready for another run, simple press the “Clear Data” button, or close and re-open the original file.

  • Page 28: Pc Terminal Program Settings

    1.2 PC Terminal Program Settings SciPres pressure monitor to PC: PC communications via the Serial Port labeled “Printer / PC” ® requires a SciPres RS-232 Cable. ® NOTE: When you are not using the SciPres with a printer, this allows process data to be “dumped” ®...
  • Page 29 Notes: ................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
  • Page 30 Notes: ................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
  • Page 31 Notes: ................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
  • Page 32 Parker Hannifin Manufacturing Ltd Parker Hannifin Corporation © 2015 Parker Hannifin Corporation. All rights reserved. domnick hunter domnick hunter IOMI-AK1-001_RevA Process Filtration - Europe Process Filtration - North America Durham Road 2340 Eastman Avenue Birtley, Co. Durham Oxnard, California, USA 93030...
