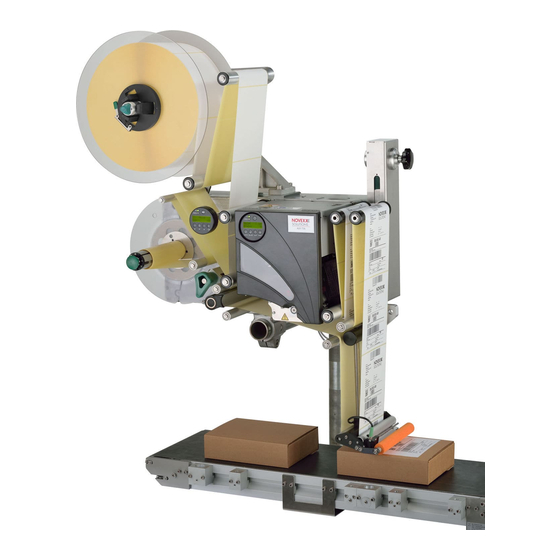

Novexx Solutions ALX 73 Series Service Manual
  1. Manuals
  2. Brands
  3. Novexx Solutions Manuals
  4. Printer
  5. ALX 73 Series
  6. Service manual

Novexx Solutions ALX 73 Series Service Manual

Hide thumbs Also See for ALX 73 Series:

Advertisement

Quick Links

Download this manual
07/15 Rev. 05
Dispenser (LMA) status messages
Error messages ......................................... 2
Warnings ................................................... 2
General software errors ............................ 3
List of warnings ......................................... 4
List of error messages ............................... 5
SERVICE MANUAL
ALX 73x

Advertisement

loading
Need help?

Need help?

Do you have a question about the ALX 73 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Novexx Solutions ALX 73 Series

Summary of Contents for Novexx Solutions ALX 73 Series

  • Page 1: Table Of Contents

    07/15 Rev. 05 SERVICE MANUAL ALX 73x Dispenser (LMA) status messages Status messages on the dispenser ....2 Error messages ......... 2 Warnings ........... 2 General software errors ......3 Reference status messages - dispenser ..4 List of warnings ......... 4 List of error messages .......

  • Page 2: Status Messages On The Dispenser

    07/15 Rev. 00 SERVICE MANUAL Dispenser status ALX 73x Status messages on the dispenser Status messages on the dispenser Error messages When an error occurs, the dispenser stops immediately and shows an error message on the control panel. Error messages are based on the following outline: Status num: 5144 Rewinder init...

  • Page 3: General Software Errors

    07/15 Rev. 00 SERVICE MANUAL Dispenser status ALX 73x Status messages on the dispenser Reset warnings A warning is displayed until… • the cause of the warning has disappeared • the warning has been reset  Warnings can only be reset in online mode. If the warning occurs in online setting mode or standalone mode, the user must switch to online mode before resetting the warning.

  • Page 4: Reference Status Messages - Dispenser

    07/15 Rev. 05 SERVICE MANUAL Dispenser status ALX 73x Reference status messages - dispenser Reference status messages - dispenser List of warnings Productstartwarn  New start signal during the dispensing cycle. The contour of the product is resulting in multiple start signals. Activate LABEL SETUP >...

  • Page 5: List Of Error Messages

    07/15 Rev. 05 SERVICE MANUAL Dispenser status ALX 73x Reference status messages - dispenser Loop empty  The buffer loop of the linear dancer arm is empty. Currently, there is no label avail- able from the loop. The dancer arm has moved out of the control position. The warning precedes the warning „LDU lower limit“, see error 5069 ...
  • Page 6 07/15 Rev. 05 SERVICE MANUAL Dispenser status ALX 73x Reference status messages - dispenser 3002 RS232 Frame  RS232 interface receive error COM1 (Frame).  Press the -key to acknowledge. Check the setting in the labeller’s function menu: (INTERFACE PARA. > COM1 PORT > ...
  • Page 7 07/15 Rev. 05 SERVICE MANUAL Dispenser status ALX 73x Reference status messages - dispenser 5002 Material end  Material end (if the internal OD sensor is connected and activated).  Insert a new label roll.  Internal OD sensor is not connected, but is activated. MASCHINEN SETUP >...
  • Page 8 07/15 Rev. 05 SERVICE MANUAL Dispenser status ALX 73x Reference status messages - dispenser  Connector cable between CPU board and motor driver board not connected or faulty.  Check whether the cable is connected correctly.  Check the cable. ...
  • Page 9 07/15 Rev. 05 SERVICE MANUAL Dispenser status ALX 73x Reference status messages - dispenser  Reduce the dispensing rate (number of labels dispensed per unit of time)  Linear dancer lever sensor is not connected.  (Service) Check the sensor cable. ...
  • Page 10 07/15 Rev. 05 SERVICE MANUAL Dispenser status ALX 73x Reference status messages - dispenser 5143 Rewinder stop The rewinder dancer lever is no longer able to move. Therefore the rewinder motor is switched to a powerless state. This can be selectively used to insert a new label roll because the rewinder can easily be turned when the motor is switched off.
  • Page 11 07/15 Rev. 05 SERVICE MANUAL Dispenser status ALX 73x Reference status messages - dispenser 5152 Winding direct.  The backing paper was incorrectly fastened on the rewinder core.  Fasten the backing paper on the rewinder as described in the operating manual. ...
  • Page 12 07/15 Rev. 05 SERVICE MANUAL Dispenser status ALX 73x Reference status messages - dispenser 5205 Applicator gen.  General software error  Switch the machine off, wait 30 seconds and switch it back on. See topic section Printer status messages , chapter „General software errors“.
  • Page 13 07/15 Rev. 05 SERVICE MANUAL Dispenser status ALX 73x Reference status messages - dispenser 5253 24V switched off 24V output of the power supply is switched off. Possible causes:  General firmware error  Switch the machine off, wait 30 seconds and switch it back on. General software errors ...
  • Page 14 07/15 Rev. 05 SERVICE MANUAL Dispenser status ALX 73x Reference status messages - dispenser 6201 File sys. format  Error while formatting RAM disk or compact flash card.  Switch the labeller off, wait 30 seconds and switch it back on. Please contact the manufacturer if the error message appears repeatedly.
  • Page 15 07/15 Rev. 05 SERVICE MANUAL Dispenser status ALX 73x Reference status messages - dispenser  Press the -key to acknowledge the status message. The labeller boots up, but cannot be operated as part of a network.  Contact technical support. Replace the CPU board if necessary.
  • Page 16 07/15 Rev. 05 SERVICE MANUAL Dispenser status ALX 73x Reference status messages - dispenser 9100 Invalid format  Format error in download data, e. g.: • invalid data format • invalid checksum • invalid address • invalid record type  Check and modify download data.
  • Page 17 07/15 Rev. 05 SERVICE MANUAL Dispenser status ALX 73x Reference status messages - dispenser 9116 Ser. disp. missing  No (serial) operation panel found for update.  Check machine, if an operation panel is connected. Download continues after the error message. 9117 Device unknown ...
