33.2.1 External Boot Devices
Zynq-7000 secure boot mode is restricted to NOR, NAND, or Quad SPI FLASH as the external boot device. A secure
boot from JTAG or any other external interface is not allowed.
33.2.2 Secure Boot Image
The secure boot image format is show in Figure 2. The secure boot image consists of a boot ROM header, a FSBL
partition (required), and any number, including zero of succeeding partitions. The boot ROM header identifies the
boot image as secure or non-secure at offset 0x028. The value stored in the boot header at offset 0x028 determines the
key source, see Table 1.
Zynq-7000 EPP Technical Reference Manual
UG585 (DRAFT) February 15, 2012

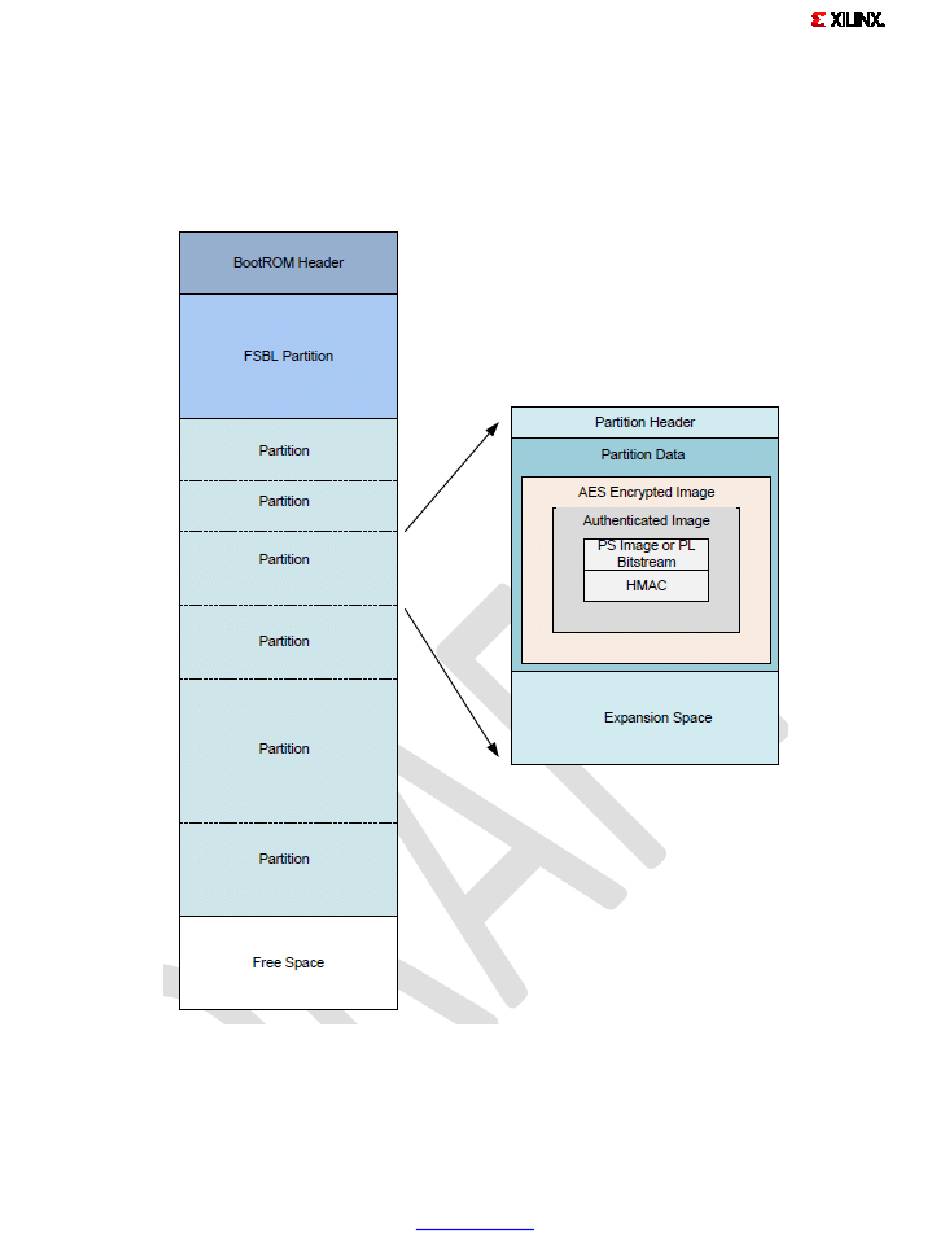

Figure 2 Secure Boot Image Format
