EUROCOM M620NC Service Manual page 36

Disassembly

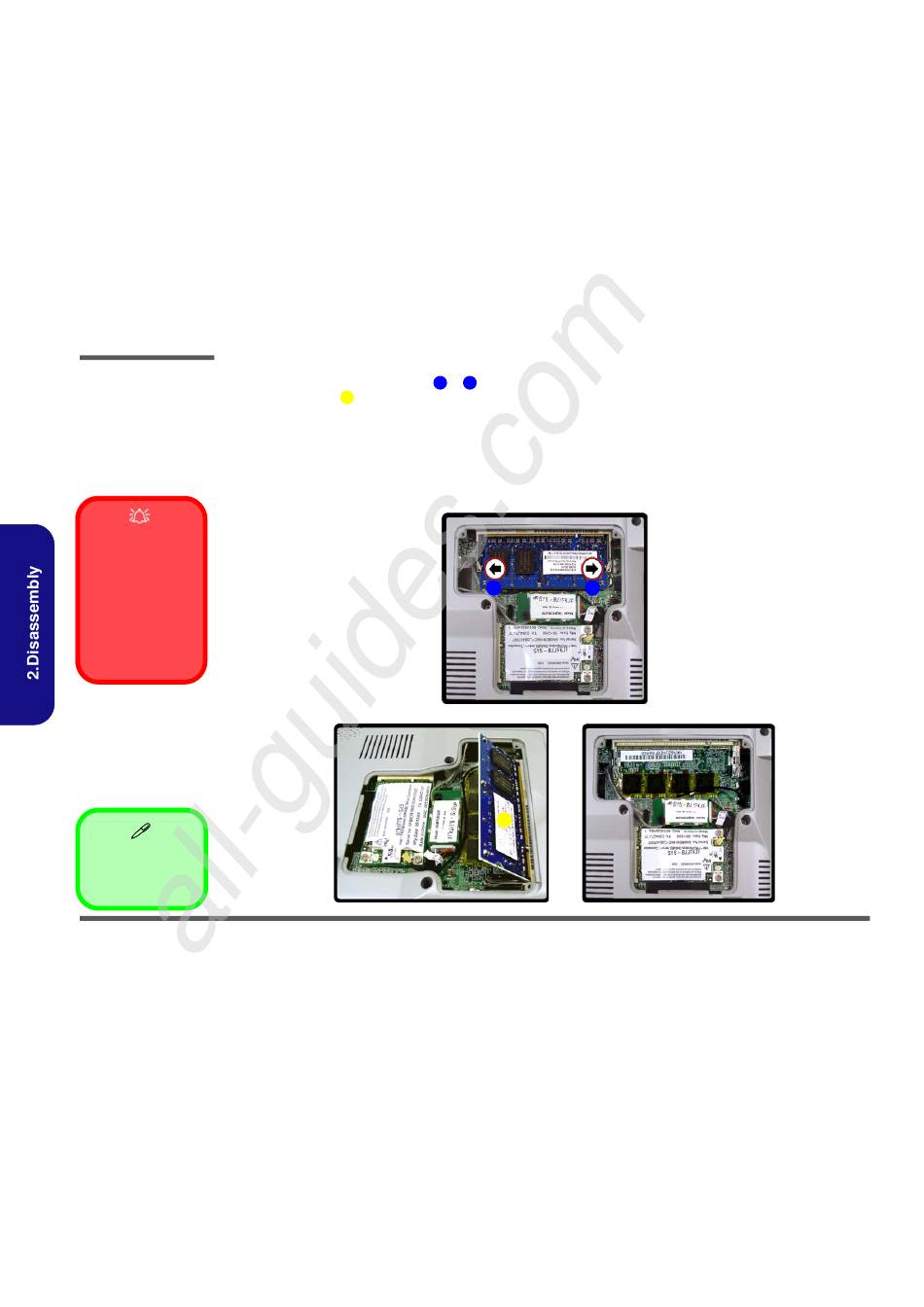

4. Gently pull the two release latches
Figure 8
5. The RAM module
System Memory
6. Insert a new module holding it at about a 30° angle and fit the connectors firmly into the memory slot.
Removal (Cont'd)
7. The module's pin alignment will allow it to only fit one way. Make sure the module is seated as far into the slot as it
will go. DO NOT FORCE the module; it should fit without much pressure.
c. Pull the release latch-
8. Press the module in and down towards the mainboard until the slot levers click into place to secure the module.
es.
9. Replace the cover and screws.
d. Remove the module.
10. Restart the computer to allow the BIOS to register the new memory configuration as it starts up.
Contact Warning
Be careful not to touch
the metal pins on the
module's connecting
edge. Even the cleanest
hands have oils which
can attract particles, and
degrade the module's
performance.
6. RAM Module
2 - 12 Removing the System Memory (RAM)
