Disassembly
3. Remove the backing from the new protective gasket.

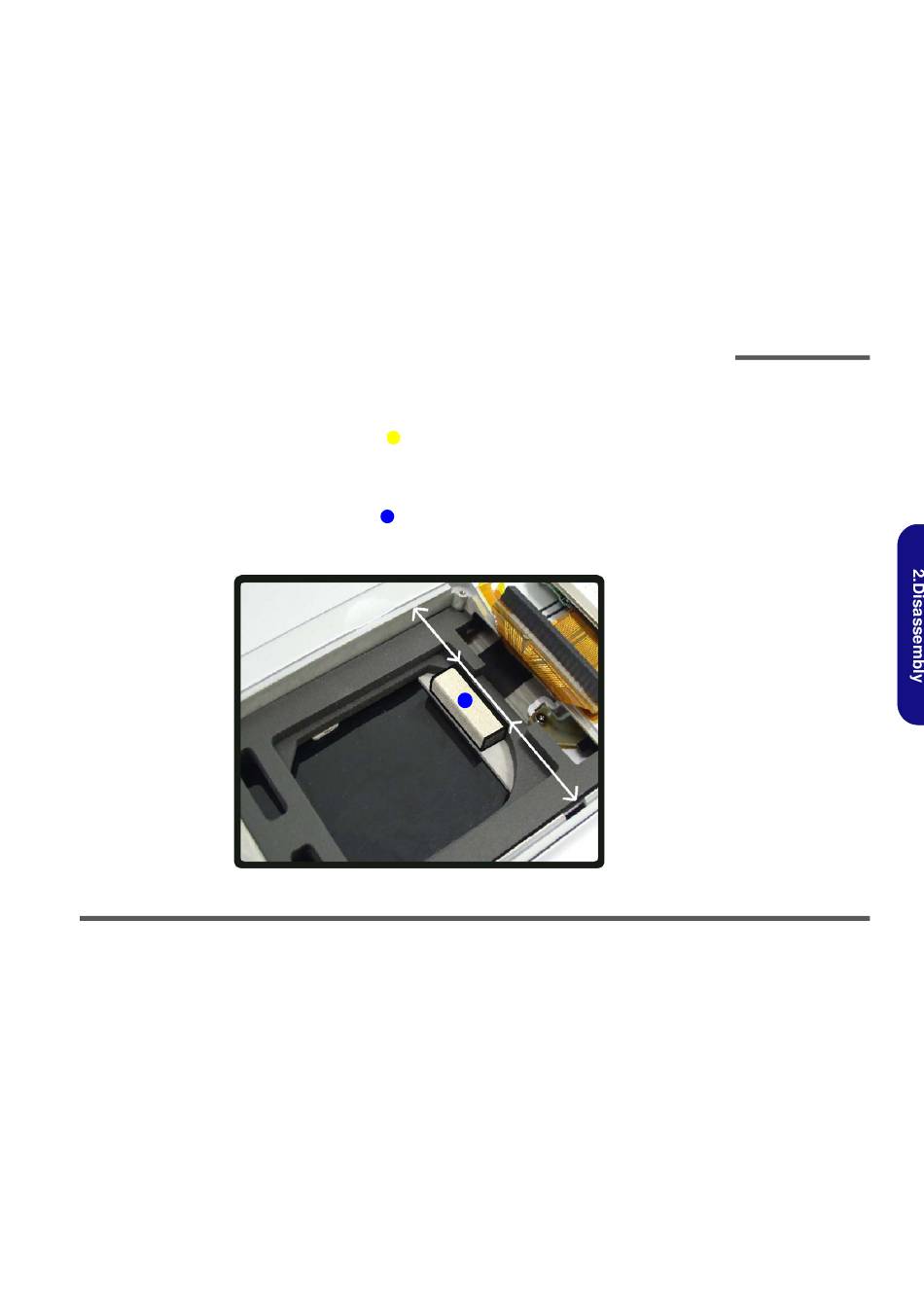

Figure 5
4. Follow the instructions below, depending on which disk you are installing.
Changing HDD Sizes
If you are replacing a 1.8" hard disk with a 2.5" hard disk:
(Cont'd)
• Stick the 2.5" protective gasket in the appropriate location 5 (Figure 4a).
b. Stick the gasket in the
• Insert the 2.5" hard disk into the case, attach it to the connector and replace the mylar case and screws.
appropriate location.
If you are replacing a 2.5" hard disk with a 1.8" hard disk:
• Place the sponge bottom cover inside the bay.
• Stick the 1.8" protective gasket in the location illustrated (Figure 5) as per the approximate dimensions outlined.
6
Attach the disk to the connector, place the foam top cover inside the bay and replace the case cover and screws.
b.
19.0mm
23.0mm
6
30.70mm
Removing the Hard Disk Drive 2 - 9
