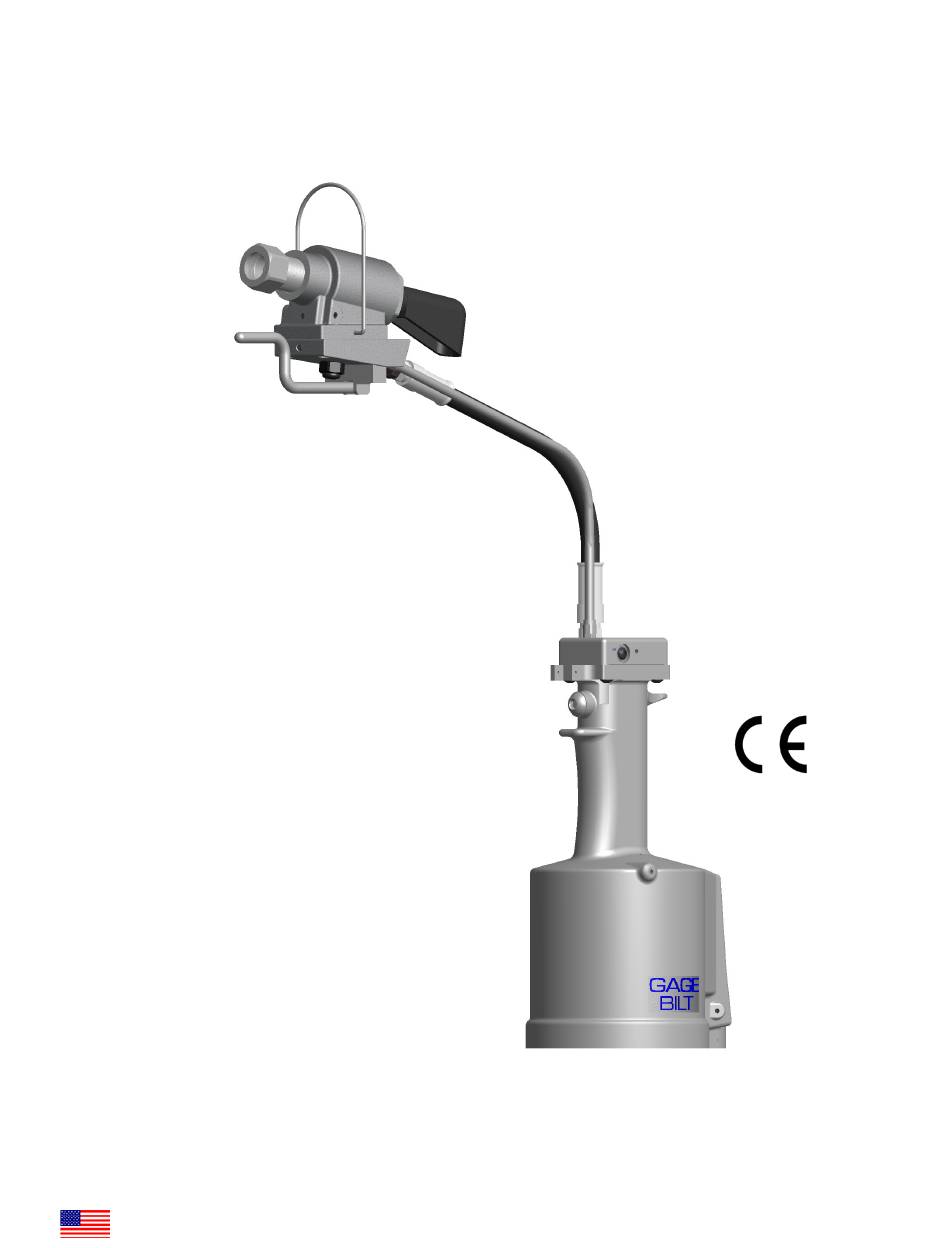

- Page 1 ORIGINAL INSTRUCTIONS GB713SR-5 INSTALLATION TOOL GAGE BILT TOOLS ARE AVAILABLE WORLDWIDE E-MAIL US FOR A DISTRIBUTOR NEAR YOU. 44766 Centre Court, Clinton Twp., MI. 48038 USA GAGE BILT Ph: +1 (586) 226-1500 Fax: +1 (586) 226-1505 solutions@gagebilt.com / www.gagebilt.com MADE in USA...
-
Page 2: Table Of Contents
Description and Technical Specifications ..........................4 Description of Functions ................................5 Warnings ....................................6 Principle of Operation ................................7 How to set-up the GB713SR-5 ..............................8 How to use the GB713SR-5 ............................... 9 Maintenance and Hydraulic Thread Preparation ........................10 Filling ....................................... 11 Bleeding .................................... -
Page 3: Eu Conformity And Warranty
GAGE BILT DECLARATION OF CONFORMITY MANUFACTURER: Gage Bilt Inc. 44766 Centre Ct., Clinton Twp., Michigan +1(586-226-1500) WE DECLARE THAT THE EQUIPMENT SPECIFIED HEREIN CONFORMS TO THE FOLLOWING DIRECTIVES AND STANDARDS Machinery Directive 2006/42/EC EN21100-1 & 12100-2:2010 EN ISO 11148-1:2011 EU REPRESENTATIVE Edgar Hausmann GmbH Förster-Busch-Str. -
Page 4: Description And Technical Specifications
The GB713SR-5 split handle installation tool operates on 90 to 100 psi. (6.2-6.9 bar) of air pressure, with 90 psi. (6.2 bar) providing the maximum efficiency. At 90 psi. (6.2 bar) of air pressure, the GB713SR-5 does not exceed 81.5 dB(A) and consumes .30 SCF/cycle (8.50 L/cycle). -
Page 5: Description Of Functions
DESCRIPTION OF FUNCTIONS Head Cylinder Assembly Hanger Deflector Bleed Screw Hydraulic Hose “Pull” Actuator Actuator Lever Assembly Air Line Bleed Screw Handle Assembly Air Inlet Image may not reflect actual tool GB713SR-5 INSTALLATION TOOL 3/21 REV 5/22... -
Page 6: Warnings
4. Support the weight of the tool in a stand, tensioner or balancer, because a lighter grip can then be used to support the tool. GB713SR-5 INSTALLATION TOOL 3/21 REV 5/22... -
Page 7: Principle Of Operation
Piston Rod Assembly moves down Air Piston moves up Air Piston moves down Air exhaust Air exhaust Pressurized Oil Pressurized Oil Unpressurized Oil Pressurized Air Unpressurized Air Images may not reflect actual tool GB713SR-5 INSTALLATION TOOL 3/21 REV 5/22... -
Page 8: How To Set-Up The Gb713Sr-5
HOW TO SET-UP THE GB713SR-5 WARNING: Only qualified and trained operators must install, adjust or use the assembly power tool for non-threaded mechanical fasteners. WARNING: Operator MUST read and understand all warnings and cautions. WARNING: It is required that eye protection, hearing protection and safety boots be worn at all times while handling this equipment. -
Page 9: How To Use The Gb713Sr-5
HOW TO USE THE GB713SR-5 WARNING: Only qualified and trained operators must install, adjust or use the assembly power tool for non-threaded mechanical fasteners. WARNING: Operator MUST read and understand all warnings and cautions. WARNING: It is required that eye protection, hearing protection and safety boots be worn at all times while handling this equipment. -
Page 10: Maintenance And Hydraulic Thread Preparation
WARNING: Tool must be maintained in a safe working condition at all times and examined on a daily basis for damage or wear. Any repair should be done by qualified personnel trained on Gage Bilt procedures. WARNING: Excessive contact with hydraulic oil and lubricants should be avoided. -
Page 11: Filling
Hole marked #4 on Manifold Handle (744303) Head Assembly (744306) facing upward. Handle Assembly and Power Cylinder hole Oil Passage hole O’ring (S832) ***Keep air hole free from oil*** Images may not reflect actual tool. GB713SR-5 INSTALLATION TOOL 3/21 REV 5/22... -
Page 12: Bleeding
Subtract dimension (A) from dimension (B). If stroke is not consistent within 1/64" (.396 mm) repeat bleeding steps until stroke met. For your consideration, Gage Bilt offers a depth gage (Pt.# A-1935) to help simplify and more accurately check your tool stroke. Please contact Gage Bilt for more information. -
Page 13: Troubleshooting / Stroke Limiter Instructions
Slide Stroke Limiter over rear Piston. (See Nose Assembly Selection Chart pg. 20 to select Stroke Limiter) Tighten End Cap onto tool. (See pg. 10 for torque setting) Images may not reflect actual tool GB713SR-5 INSTALLATION TOOL 3/21 REV 5/22... -
Page 14: Overhaul
Perform overhaul in a clean, well lit area using care not to scratch or nick any smooth surface that comes in contact with an o'ring. Use of Lubriplate® (Gage Bilt part no. 402723) or other lubricant is recommended during reassembly to prevent tearing or distorting of o'rings. - Page 15 Thread the actuator assembly-air (704130) all the way into manifold head assembly (744306) with fingers. Insert and turn 5/8” open end box wrench / adjustable wrench and snug tight approximately 1/4-1/2 turn. Re-attach the lever assembly (724017) with pin. GB713SR-5 INSTALLATION TOOL 3/21 REV 5/22...
- Page 16 If ports are plugged, use needle nose pliers to grasp end of spring (744144), turning clockwise and pulling to dislodge from groove in casting. Valve spring installation tool (744251) will facilitate the proper installation of the spring (744144). Valve sleeve (743144) can be pulled out using valve sleeve removal tool (744152). GB713SR-5 INSTALLATION TOOL 3/21 REV 5/22...
-
Page 17: Parts Lists
PARTS LIST GB713SR-5 INSTALLATION TOOL 3/21 REV 5/22... - Page 18 PARTS LIST GB713SR-5 INSTALLATION TOOL 3/21 REV 5/22...
-
Page 19: Dexron® Iii Oil Safety Data (Sds)
Use material for its intended purpose or recycle if possible. Oil collection services are available for used oil recycling or disposal. Place contaminated materials in containers and dispose of in a manner consistent with applicable regulations. GB713SR-5 INSTALLATION TOOL 3/21 REV 5/22... -
Page 20: Nose Assembly Selection Chart
GB713SR-5 ACCESSORIES Approved for use on Gage Bilt CE installation tools and/or other manufacturer’s CE approved tools of similar design. (Sold Separately) NOSE ASSEMBLY SELECTION CHART STRAIGHT RIGHT ANGLE OFFSET Stroke Limiter (Sold Separately) (Sold Separately) (Sold Separately) #713152 Required with all offset... -
Page 21: Accessories
Pull load - 4,500 (20.0 kN) GB713SH Stroke - .760" (19.3 mm) Hand held weight - 2.50 lbs. (1.1 kg) Entire tool weight - 7.50 lbs. (3.4 kg) Pull load - 4,500 (20.0 kN) GB713SR-5 INSTALLATION TOOL 3/21 REV 5/22... - Page 22 GB713SR-5 ACCESSORIES Approved for use on Gage Bilt CE installation tools and/or other manufacturer’s CE approved tools of similar design. (Sold Separately) Grip Gage #269G3 Grip Gage #GB105093 For CHERRYMAX® and For NAS LOCKBOLTS and CHERRYLOCK® fasteners blind fasteners (Sold Separately)
- Page 23 This page intentionally left blank. GB713SR-5 INSTALLATION TOOL 3/21 REV 5/22...
- Page 24 Riveter Kits Available (Sold Separately) Gage Bilt offers a wide selection of standard and custom kits tailored to your needs. Approved Approved Split Riveter Tool Backpacks For 5ft hose Split System Tools. (Sold Separately) DEXRON® IS A REGISTERED TRADEMARK OF GENERAL MOTORS CORPORATION. LOCTITE® IS A REGISTERED TRADEMARK OF HENKEL CORPORATION. TEFLON® IS A REGISTERED TRADEMARK OF E.I.
