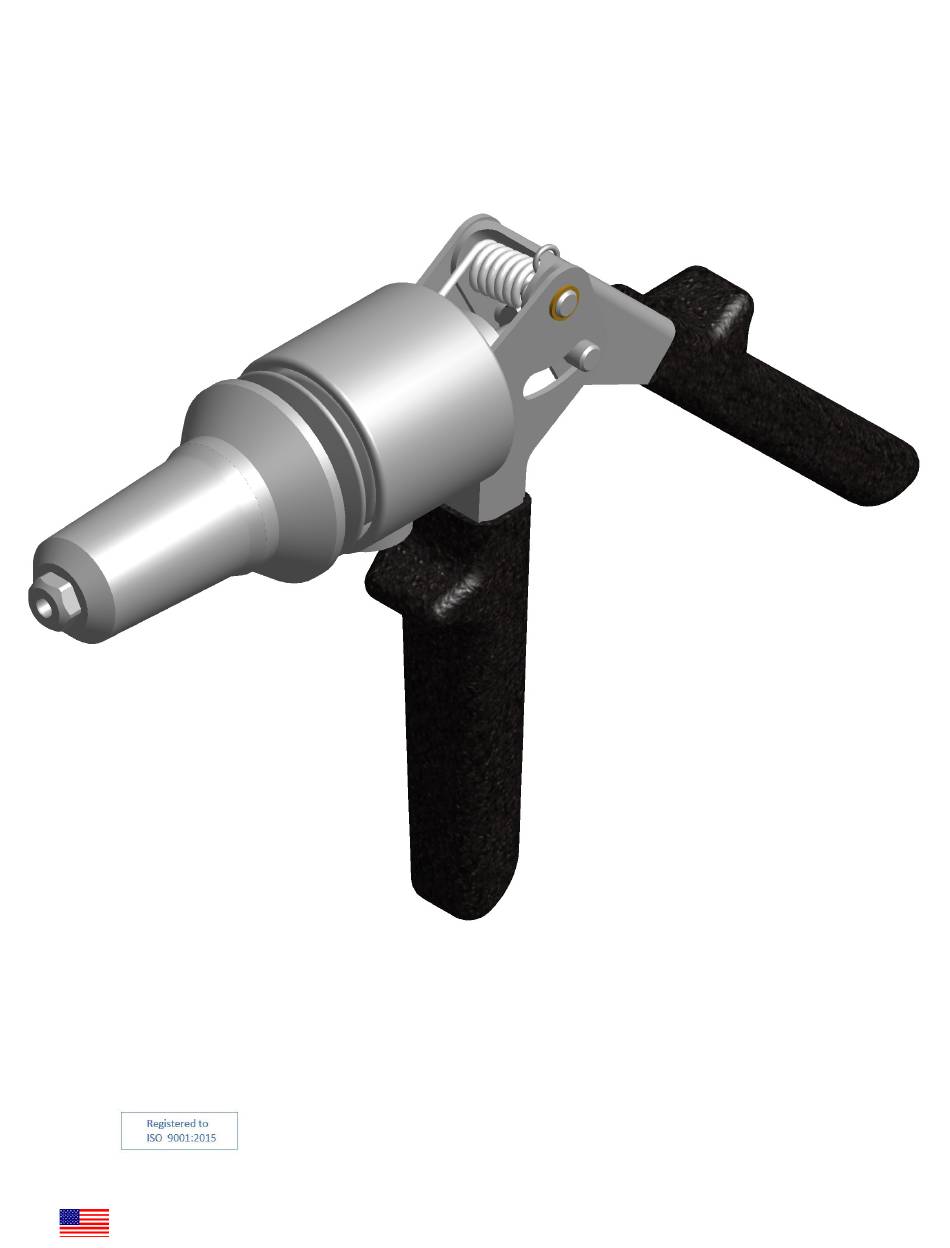

- Page 1 ORIGINAL INSTRUCTIONS GB150 HYDRAULIC HAND RIVETER GAGE BILT TOOLS ARE AVAILABLE WORLDWIDE E-MAIL US FOR A DISTRIBUTOR NEAR YOU. GAGE BILT 44766 Centre Court Clinton Twp. MI 48038 USA Ph: +1 (586) 226-1500 Fax: +1 (586) 226-1505 MADE in USA...
- Page 2 Page Table of Contents / Warranty ..............................2 Description and Technical Specifications ..........................3 Warnings ..................................... 4 How to set-up the GB150 ................................5 How to use the GB150 ................................6 Accessories ....................................8 WARRANTY Seller warrants that all goods covered by this catalog will conform...
- Page 3 Any other use is forbidden. The GB150 is a hydraulic hand operated installation tool designed specifically for the efficient installation of aerospace blind rivets and all materials 1/8” diameter pull-thru nut plate fasteners thru 1/4”. It weighs 20.5 oz. (.58 kg.) and can be operated in any position. It has a .625"...
- Page 4 10. Due to the tool weight, it is recommended safety shoes be worn during operation. 11. It is recommended tool be operated not more than 50 out of every 60 minutes, where prolonged use is expected. Rev. 10/22 GAGE BILT : GB150 INSTALLATION TOOL...
- Page 5 (With riveting assembly in place per diagram tool is ready to operate. See pg. 6). *BLIND RIVET NOSE TIPS PART NO. SIZE 10231 3/32" 10232 1/8" 10425 5/32"-3/16" 10211 1/4" *Nose tips not supplied with tool Image may not reflect actual tool. Rev. 10/22 GAGE BILT : GB150 INSTALLATION TOOL...
- Page 6 4. After stem breaks, push button and bring handles together, point nose tip down and fastener stem will fall out, or can be removed by hand. 5. Repeat steps 1-4. Images may not reflect actual tool or fastener Rev. 10/22 GAGE BILT : GB150 INSTALLATION TOOL...
- Page 7 This page intentionally left blank. Rev. 10/22 GAGE BILT : GB150 INSTALLATION TOOL...
- Page 8 NOSE ASSEMBLIES ARE NOT FURNISHED WITH THIS TOOL AND MUST BE ORDERED SEPARATELY. CHERRYMAX®, CHERRYLOCK® AND HIGH CLINCH® ARE REGISTERED TRADEMARKS OF CHERRY AEROSPACE FASTENERS. HUCK® IS A REGESTERED TRADEMARK OF HOWMET AEROSPACE. Rev. 10/22 GAGE BILT : GB150 INSTALLATION TOOL...
