Gage Bilt GB704 Series Manual

Hide thumbs Also See for GB704 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
GB704SR
S/N: 1090 AND ABOVE
PLEASE CONTACT GAGE BILT FOR
ALL OTHER SERIAL NUMBERS.
INSTALLATION TOOL
GAGE BILT TOOLS ARE AVAILABLE WORLDWIDE
GAGE BILT Inc.
GAGE BILT
44766 Centre Court
(586) 226-1500
Clinton Twp. MI 48038
(586) 226-1505 Fax
MADE IN U.S.A.
e-mail: solutions@gagebilt.com / www.gagebilt.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GB704 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Gage Bilt GB704 Series

Summary of Contents for Gage Bilt GB704 Series

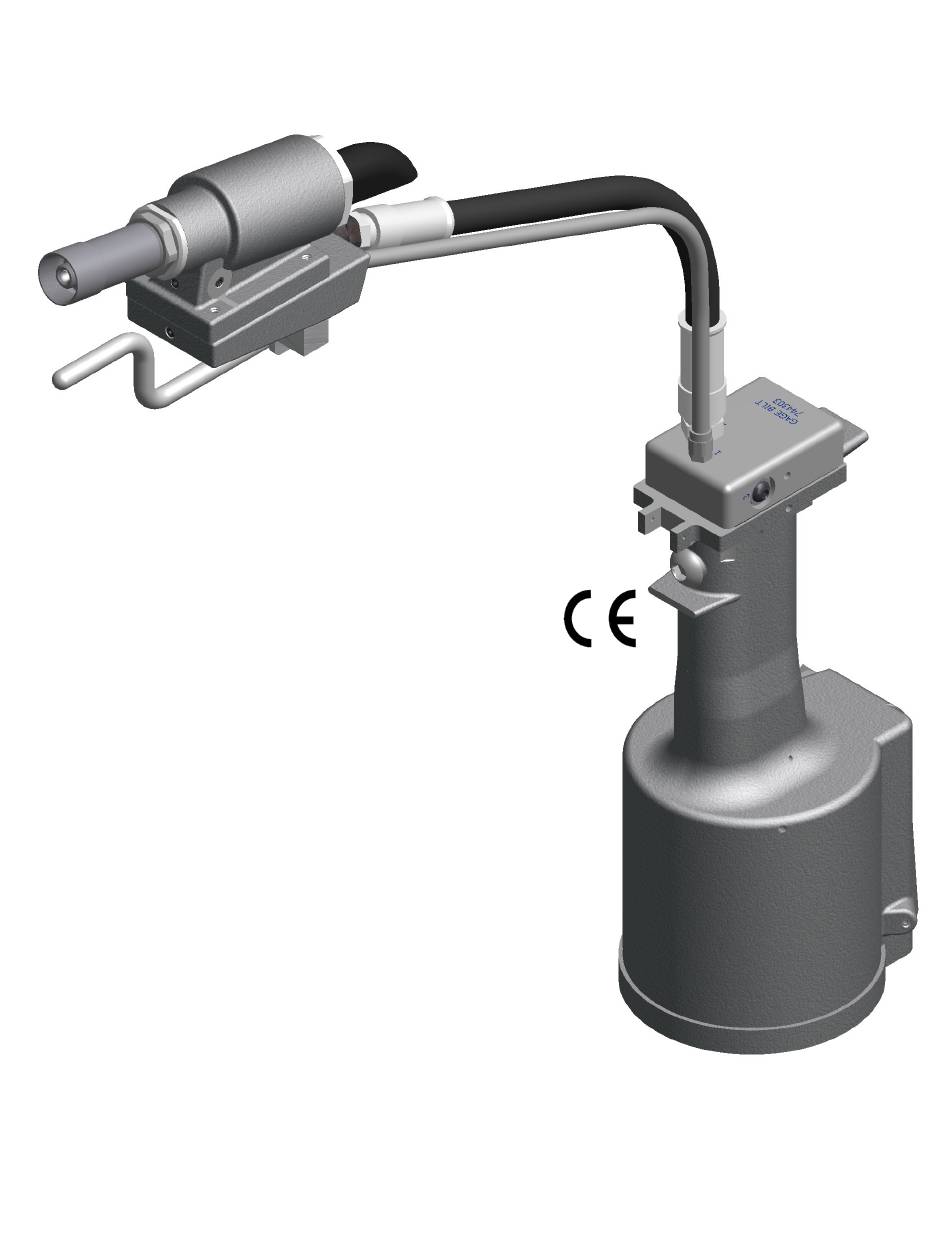

  • Page 1 GB704SR S/N: 1090 AND ABOVE PLEASE CONTACT GAGE BILT FOR ALL OTHER SERIAL NUMBERS. INSTALLATION TOOL GAGE BILT TOOLS ARE AVAILABLE WORLDWIDE GAGE BILT Inc. GAGE BILT 44766 Centre Court (586) 226-1500 Clinton Twp. MI 48038 (586) 226-1505 Fax MADE IN U.S.A.

  • Page 2: Table Of Contents

    Setting stroke - .540" (13.72 mm) Rated pull load - 3,300 lbs. (14.68 kN) Noise level - 81.5 dB (A) Vibration - Tested– No hazards found. S/N: 1090 AND ABOVE Rev. 11/14 PLEASE CONTACT GAGE BILT FOR ALL OTHER SERIAL NUMBERS.

  • Page 3: Warnings

    It is recommended operator wear a suitable glove WARNING during operation where prolonged use is expected. Air pressure not to exceed 100 psi (6.9 bar). S/N: 1090 AND ABOVE Rev. 11/14 PLEASE CONTACT GAGE BILT FOR ALL OTHER SERIAL NUMBERS.

  • Page 4: Principle Of Operation

    CYLINDER HEAD HEAD PISTON PRESSURE PRESSURE PRESSURE PISTON PISTON PRESSURE PRESSURE VALVE SPOOL PISTON PRESSURE PRESSURE PRESSURE EXHAUST Image may not reflect actual tool S/N: 1090 AND ABOVE Rev. 11/14 PLEASE CONTACT GAGE BILT FOR ALL OTHER SERIAL NUMBERS.

  • Page 5: How To Use The Gb704Sr

    WARNING: Always disconnect air supply when tool is not in use to prevent accidental start-up. Image may not reflect actual tool S/N: 1090 AND ABOVE Rev. 11/14 PLEASE CONTACT GAGE BILT FOR ALL OTHER SERIAL NUMBERS.

  • Page 6: Description, Maintenance And Hydraulic Thread Preparation

    The balance of this tool is designed for vertical use and is not ergonomically best suited for all applications. Gage Bilt will be pleased to advise for your specific application. The GB704SR is a pneumatic-hydraulic split handle riveter designed specifically for the efficient installation of a wide range of blind rivets.

  • Page 7: Filling And Bleeding

    (B). If stroke is not consistent within 1/64" (.0156”) repeat bleeding steps 5-6. Re-attach lever assy (724017) to manifold-head assy (744306). .740 (18.8mm) .200 (5.1mm) S/N: 1090 AND ABOVE Rev. 11/14 PLEASE CONTACT GAGE BILT FOR ALL OTHER SERIAL NUMBERS.

  • Page 8: Troubleshooting

    Replace worn or broken parts. Clean the surface the jaws ride on. Stems lodged side by side in the follower. Disassemble, remove stems, and reassemble. Incorrect follower. S/N: 1090 AND ABOVE Rev. 11/14 PLEASE CONTACT GAGE BILT FOR ALL OTHER SERIAL NUMBERS.

  • Page 9: Overhaul, Disassembly And Parts Lists

    WARNING: Tool must be maintained in a safe working condition at all times and examined on a regular daily basis for damage or wear. Any repair should be done by qualified personnel trained on Gage Bilt procedures. WARNING: When operating, repairing or overhauling tool, wear approved eye protection. Do not look in Front of tool or rear of tool when installing fastener.
  • Page 10 (400061 and 400066) uniformly to 40 inch lbs. to prevent leakage around the gasket (704129). 204304 - SWIVEL ASSEMBLY 401080 - BACK-UP RING 403764 - O'RING S/N: 1090 AND ABOVE Rev. 11/14 PLEASE CONTACT GAGE BILT FOR ALL OTHER SERIAL NUMBERS.
  • Page 11 NOTE: valve spring installation tool (704162) will facilitate the proper installation of the spring (704141), valve sleeve (704140) can be pulled out using valve sleeve removal tool (704163). S/N: 1090 AND ABOVE Rev. 11/14 PLEASE CONTACT GAGE BILT FOR ALL OTHER SERIAL NUMBERS.

  • Page 12: Dexron® Iii Oil Safety Data

    Use material for its intended purpose or recycle if possible. Oil collection services are available for used oil recycling or disposal. Place contaminated materials in containers and dispose of in a manner consistent with applicable regulations. S/N: 1090 AND ABOVE Rev. 11/14 PLEASE CONTACT GAGE BILT FOR ALL OTHER SERIAL NUMBERS.

  • Page 13: Nose Assembly Selection Chart

    GS8-715-40OS (1) BACS53B1EA1/2 CHERRYMAX® and MBC® are registered trademarks of Cherry Aerospace Fasteners. GAGE BILT CERTIFIES THE GB704 WILL INSTALL THE ABOVE FASTENERS 1) 715 SERIES NOSE ASSEMBLIES REQUIRE 704001 ADAPTER. 2) INSTALLS 1/8", 5/32", AND 3/16" DIAMETERS 3) RIGHT ANGLE NOSE ASSEMBLIES MAY REQUIRE MORE THAN ONE PULL 4) FRONT END EJECTING NOSE ASSEMBLY.

  • Page 14: Eu Conformity And Warranty

    GAGE BILT DECLARATION OF CONFORMITY MANUFACTURER: Gage Bilt Inc. 44766 Centre Ct. Clinton Twp. Michigan (586-226-1500) WE DECLARE THAT THE EQUIPMENT SPECIFIED HEREIN CONFORMS TO THE FOLLOWING DIRECTIVES AND STANDARDS Machinery Directive 2006/42/EC EN12100-1 & EN12100-2 EN792-1:2000+A1 EU REPRESENTATIVE Edgar Hausmann GmbH Förster-Busch-Str. 10 D-34346 Hann. Münden Germany EQUIPMENT DESCRIPTION: GB704SR FASTENER INSTALLATION TOOL This procuct specified above conforms to the above dIrectives and standards.
