Owner's Manual

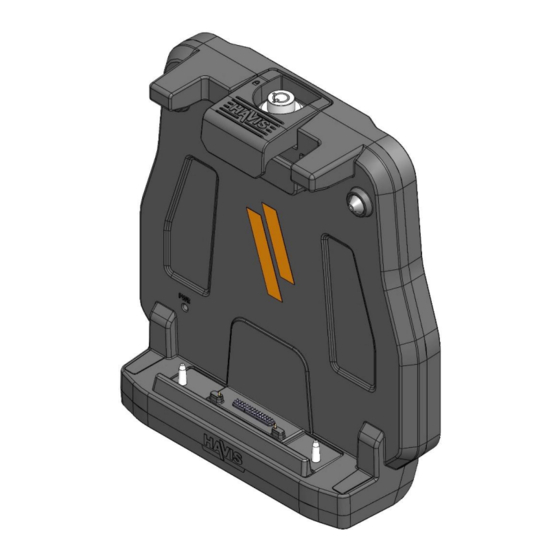

Havis Docking Station
For Zebra ET5X 8" Tablet w/ Rugged Frame (DS-ZEB-100 Series)
and ET5X 10" Tablet w/ Rugged Frame (DS-ZEB-200 Series)
DS-ZEB-100 Series
DS-ZEB-101
DS-ZEB-102-ISO
DS-ZEB-103
DS-ZEB-200 Series
DS-ZEB-201
DS-ZEB-202-ISO
DS-ZEB-203
DS-ZEB-100 & DS-ZEB 200 SERIES_OMN_02-22
DS-ZEB-104
DS-ZEB-105-ISO
DS-ZEB-204
DS-ZEB-205-ISO

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS-ZEB-100 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Havis DS-ZEB-100 Series

Summary of Contents for Havis DS-ZEB-100 Series

  • Page 1 Owner’s Manual Havis Docking Station For Zebra ET5X 8” Tablet w/ Rugged Frame (DS-ZEB-100 Series) and ET5X 10” Tablet w/ Rugged Frame (DS-ZEB-200 Series) DS-ZEB-100 Series DS-ZEB-101 DS-ZEB-104 DS-ZEB-102-ISO DS-ZEB-105-ISO DS-ZEB-103 DS-ZEB-200 Series DS-ZEB-201 DS-ZEB-204 DS-ZEB-202-ISO DS-ZEB-205-ISO DS-ZEB-203 DS-ZEB-100 & DS-ZEB 200 SERIES_OMN_02-22...

  • Page 2: Before Beginning

    Before Beginning Havis is pleased to provide this Owner’s Manual to aid in the proper installation and use of the DS-ZEB-100 Series Docking Station for the Zebra ET5X 8” Tablet with Rugged Frame, and the DS-ZEB-200 Series Docking Station for the Zebra ET5X 10”...
  • Page 3 Certifications CAN ICES-3 (B)/NMB-3(B) FCC 47CFR, Part 15 compliance: This is an FCC Class B device. Any changes or modifications to the model DS-ZEB-10X not expressly approved by Havis, Inc. could void the user's authority to operate this equipment. EU DECLARATION OF CONFORMITY [CWN1] Manufacturers Name: Havis, Inc.
  • Page 4 DS-ZEB-100 Series Specifications 2.810” 8.750” 71.4 mm 222.3 mm Unlatched Latched 8.762 ” 8.195 ” 222.5 mm 208.2 mm VESA 75 Mounting Pattern M4 x 0.7 Thread 4.213” 107 mm Dock Centerline...
  • Page 5 Certifications CAN ICES-3 (B)/NMB-3(B) FCC 47CFR, Part 15 compliance: This is an FCC Class B device. Any changes or modifications to the model DS-ZEB-10X not expressly approved by Havis, Inc. could void the user's authority to operate this equipment. EU DECLARATION OF CONFORMITY [CWN1] Manufacturers Name: Havis, Inc.
  • Page 6 DS-ZEB-200 SERIES Specifications 8.750” 2.810” 222.3 mm 71.4 mm Latched 9.407 ” 238.94 mm Unlatched 9.964 ” 253.09 mm VESA 75 Mounting Pattern M4 x 0.7 Thread 4.213” 107 mm Dock Centerline...

  • Page 7: Parts Included

    DC Power Input I/O Ports VESA 75 Mounting Pattern (M4 X 0.7 Threaded Inserts) 6’ POWER CABLE with Cigarette Adapter (Havis P/N: DS-DA-317) (Included with DS-ZEB-101, DS-ZEB-104, DS-ZEB-201, AND DS-ZEB-204) 6’ POWER CABLE with Bare Wire (Havis P/N: DS-DA-336) (Included with DS-ZEB-101-ISO, DS-ZEB-105-ISO,...

  • Page 8: Port Replication Capability

    Parts Included (continued) Hardware Kit (HWK-0031) This Hardware Kit includes: 1. Zip Ties (4) 2. Keys (2) 3. M4 x 0.7 x 20mm long Pan Head Screws (5) 4. Split Lock Washers (5) 5. Washers, M4 (5) Tools required for installation: •...

  • Page 9: Installation

    Port Replication Capability (continued) ADVANCED I/O DS-ZEB-104, DS-ZEB-105-ISO, DS-ZEB-204, DS-ZEB-205-ISO Serial Port Ethernet USB 2.0 (x2) DC Power Input Powered PIN 9, 5V(1A) RJ45 Installation 1) Align Docking Station mounting holes with the hole pattern on mounting device. Using the four (4) M4 0.7 x 20mm Pan Head Screws (Hardware Kit Item 3), four (4) Washers, M4 (Hardware Kit Item 5), and four (4) Lock Washers, M4 (Hardware Kit Item 4), secure the Docking Station to device.

  • Page 10: Cable Management

    Cable Management 1) Tip the Docking Station to a position that is comfortable to work with. 2) Install all cables that are necessary for computing needs. 3) Use Zip Ties (Hardware Kit Item 1) and the Strain Relief Points to secure cables and reduce risk of accidental disconnects.

  • Page 11: Operation - Docking

    CHECK ALIGNMENT OF TABLET ON DOCKING STATION. NOTE: Ensure a proper connection by aligning the tablet’s Alignment Sockets with the Docking Station’s Alignment Posts Alignment Posts on the DS-ZEB-100 Series & Alignment Sockets on the bottom of DS-ZEB-200 Series Docking Station ZEBRA ET5X Tablet with Rugged Frame.
  • Page 12 Operation - Docking 2) The docking connector with the alignment posts should be angled away from dock and toward the user as shown in the side view. Hold the tablet in landscape orientation, and ensure the rugged I/O and alignment sockets on the tablet are angled toward the Docking Station. Lower the tablet onto the docking connector.

  • Page 13: Operation - Undocking

    Operation - Undocking 1) If previously locked, unlock the Docking Station using supplied key. 2) Secure tablet to avoid inadvertent ejection from Docking Station. Push down on the Lock button and release quickly taking care not to obstruct the travel of the Latch Hook. If the Latch Hook does not extend fully to its unlatched position, lift up lightly on the front of the Latch Hook to fully release.

  • Page 14: Related Products

    Related Products Havis offers a wide variety of accessory products specifically for use with your Docking Station. For more information or to order, please visit www.havis.com. LPS-174 ISOLATED POWER SUPPLY, 9-32V DC FOR DS-ZEB-100 & DS- ZEB-200 SERIES Isolated power supply with 72” hardwired, bare-wire input cable, and 72”...
