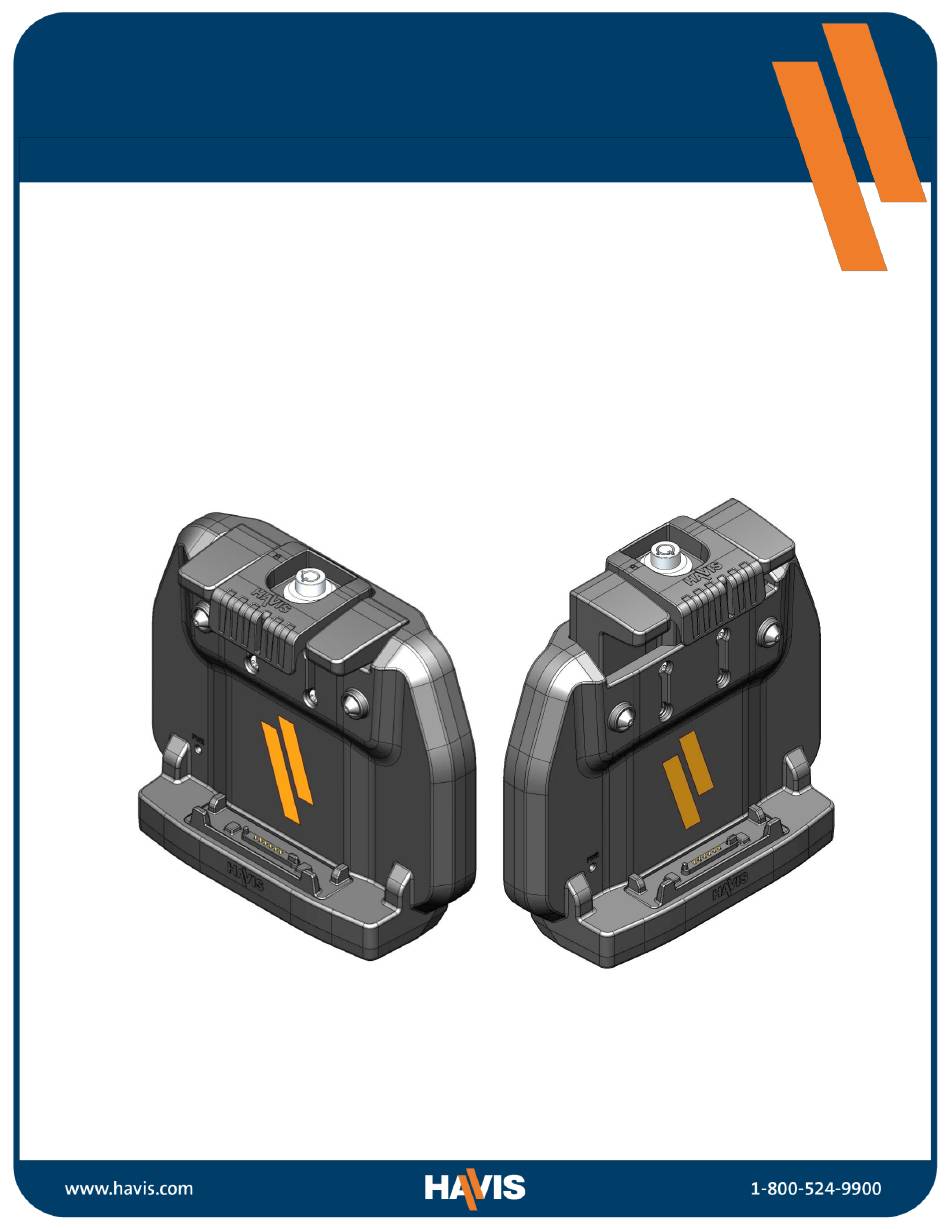

- Page 1 Owner’s Manual Havis Docking Station For Zebra ET4X 8” Tablet with Zebra’s 8” Rugged Boot (Required) and ET4X 10” Tablet with Zebra’s 10” Rugged Boot (Required) DS-ZEB-300 Series DS-ZEB-301 DS-ZEB-304 DS-ZEB-302-ISO DS-ZEB-305-ISO DS-ZEB-303 DS-ZEB-300 SERIES_OMN_01-23...
-
Page 2: Before Beginning
Before Beginning Havis is pleased to provide this Owner’s Manual to aid in the proper installation and use of the DS-ZEB-300 Series Docking Station for the Zebra ET4X 8” Tablet with Zebra’s 8” Rugged Boot (Required), and the Zebra ET4X 10” Tablet with Zebra’s 10”... - Page 3 Certifications CAN ICES-3 (B)/NMB-3(B) FCC 47CFR, Part 15 compliance: This is an FCC Class B device. Any changes or modifications to the model DS-ZEB-30X not expressly approved by Havis, Inc. could void the user's authority to operate this equipment. EU DECLARATION OF CONFORMITY [CWN1] Manufacturers Name: Havis, Inc.
- Page 4 DS-ZEB-300 SERIES 8” CONFIGURATION SIZE SPECIFICATIONS 2.895” 8.630” 74 mm 219 mm Unlatched Latched 7.662 ” 7.221 ” 196 mm 183 mm VESA 75 Mounting Pattern M4 x 0.7 Thread 3.551” 90 mm Dock Centerline...
- Page 5 DS-ZEB-300 SERIES 10” CONFIGURATION SIZE SPECIFICATIONS 8.630” 2.895” 219 mm 74 mm Latched Unlatched 8.321 ” 8.762 ” 211 mm 253 mm VESA 75 Mounting Pattern M4 x 0.7 Thread 3.551” 90 mm Dock Centerline...
-
Page 6: Parts Included
DC Power Input I/O Ports VESA 75 Mounting Pattern (M4 X 0.7 Threaded Inserts) 6’ POWER CABLE with Cigarette Adapter (Havis P/N: DS-DA-317) (Included with DS-ZEB-301, DS-ZEB-304) 6’ POWER CABLE with Bare Wire (Havis P/N: DS-DA-336) (Included with DS-ZEB-302-ISO, DS-ZEB-305-ISO) -
Page 7: Port Replication Capability
Parts Included (continued) Hardware Kit (HWK-0031) This Hardware Kit includes: 1. Zip Ties (4) 2. Keys (2) 3. M4 x 0.7 x 20mm long Pan Head Screws (5) 4. Split Lock Washers (5) 5. Washers, M4 (5) Tools required for installation: •... -
Page 8: Installation
Port Replication Capability (continued) ADVANCED I/O DS-ZEB-304, DS-ZEB-305-ISO Serial Port Ethernet USB 2.0 (x2) DC Power Input Powered PIN 9, 5V(1A) RJ45 Installation Align Docking Station mounting holes with the hole pattern on mounting device. Using the four (4) M4 0.7 x 20mm Pan Head Screws (Hardware Kit Item 3), four (4) Washers, M4 (Hardware Kit Item 5), and four (4) Lock Washers, M4 (Hardware Kit Item 4), secure the Docking Station to device. - Page 9 ADJUSTING THE LATCH BASE 1. Remove the two M4x0.7 machine screws using a T20 Torx Drive ZEB-300 SERIES – 8” CONFIGURATION 2. Extend the Latch Base to the 10” configuration. 3. Reinstall the two Machine Screws and torque the screws to 20 in-lbs. (2.3Nm) ± 10%. DO NOT over tighten the two screws.
-
Page 10: Cable Management
Cable Management 1) Tip the Docking Station to a position that is comfortable to work with. 2) Install all cables that are necessary for computing needs. 3) Use Zip Ties (Hardware Kit Item 1) and the Strain Relief Points to secure cables and reduce risk of accidental disconnects and damage. -
Page 11: Operation - Docking
Operation - Docking THE ZEBRA ET4X RUGGED BOOT (EXOSKELETON) FOR THE 8” AND/OR 10” ZEBRA ET4X TABLET DEVICE MUST BE INSTALLED ONTO THE TABLET PRIOR TO DOCKING AND OPERATION. RUGGED BOOT (EXOSKELETON) IS REQUIRED TO ENSURE SAFE AND PROPER FUNCTION OF THE DOCK AND TABLET SOLUTION. - Page 12 Operation - Docking 1) Docking Station must be unlatched before docking your tablet. Push down on the Lock button and release slowly. Latched Unlatched 2) Hold the tablet in landscape orientation with the touchscreen facing out. Ensure the Tablet’s I/O and alignment pockets on the tablet are angled toward the Docking Station.
- Page 13 Operation - Docking 3) Place the tablet into the Docking Station and hold while pressing the Latch Handle to secure the tablet in place. You will hear an audible click when Latch Hook is fully engaged. Tug up on the latch to ensure it is fully engaged.
-
Page 14: Operation - Undocking
Operation - Undocking 1) If previously locked, unlock the Docking Station using supplied key. 2) Secure tablet to avoid inadvertent ejection from Docking Station. Push down on the Lock button and release quickly taking care not to obstruct the travel of the Latch Hook. If the Latch Hook does not extend fully to its unlatched position, lift up lightly on the front of the Latch Hook to fully release. -
Page 15: Related Products
Related Products Havis offers a wide variety of accessory products specifically for use with your Docking Station. For more information or to order, please visit www.havis.com. LPS-174 ISOLATED POWER SUPPLY, 9-32V DC FOR DS-ZEB-100 & DS- ZEB-200 SERIES Isolated power supply with 72” hardwired, bare-wire input cable, and 72”...
