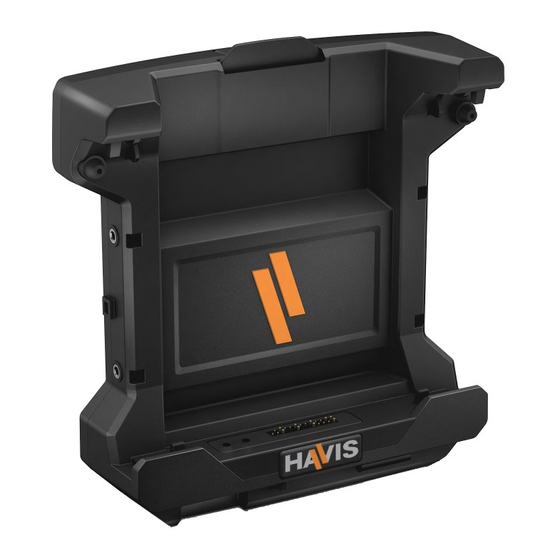

- Page 1 Owner’s Manual Havis Docking Station for Dell Latitude Rugged 12 Tablet DS-DELL-600 Series DS-DELL-601 DS-DELL-603 DS-DELL-601-2 DS-DELL-603-2 DS-DELL-602 DS-DELL-604 DS-DELL-602-2 DS-DELL-604-2 www.havis.com 1-800-524-9900...
- Page 2 Before Beginning (Original Instructions) Havis is pleased to provide this Owner’s Manual to aid in the proper installation and use of the DS-DELL-600 Series Docking Station for Dell Latitude Rugged 12 Tablet For questions regarding the set-up of your DS-DELL-600 Series Docking Station, please contact Havis at 1-800-524-9900 or visit www.havis.com for additional...
-
Page 3: Table Of Contents
Table of Contents Specifications Parts Included Port Replication Capability Antenna Identification Installation and Cable Management Operation - Docking Operation - Undocking Precautions • Do not place metal objects or containers of liquid on top of the Docking Station • If a malfunction occurs, immediately unplug the Power Supply and remove the laptop •... -
Page 4: Parts Included
Parts Included (continued) Docking Station Barrel Lock Latch Handle Bumpers Alignment Posts Docking Connector Mounting Bracket Mounting Guides Strain Relief Points Mounting Bracket Locator Ports Strain Relief Points Power Cable (For DS-DELL-604 & DS-DELL-604-2 only) -
Page 5: Port Replication Capability
Port Replication Capability Forward Facing Ports (All Docking Stations, not including DS-DELL-603 & DS-DELL-603-2) Mic / Speaker USB 2.0 Rear Ports (DS-DELL-601, DS-DELL-601-3, DS-DELL-602, DS-DELL-602-3) Ethernet USB 3.0 DisplayPort Serial Power RJ45 Input (x2) (x2) Rear Ports - Internal Power Supply (DS-DELL-604 &... -
Page 6: Installation And Cable Management
Mounting Bracket to the Motion Device using (4) 1/4“-20 x 5/8” long button head screws (Hardware Kit Item 3). Torque screws to 80 in-lbs (9.0Nm) ± 10%. NOTE: Numerous hole patterns present in Mounting Bracket will accomodate Havis Motion Devices as well as most competitors’ Typical Motion Device Example... - Page 7 Installation and Cable Management (continued) Place the Docking Station onto the Mounting Bracket by guiding the mounting bracket locators into the mounting guides. Secure with (4) 1/4”-20 x 3/8” long pan head screws (Hardware Kit Item 4). Torque screws to 80 in-lbs (9.0 Nm) ± 10%. Create a service loop with cable bundle to ensure that no tension is on the connectors and to enable intended motion.
-
Page 8: Operation - Docking
Operation - Docking DO NOT FORCE TABLET ONTO DOCKING STATION. IF THERE IS RESISTANCE, CHECK THE ALIGNMENT OF TABLET ON DOCKING STATION. Your tablet’s Alignment Sockets will align with the Docking Station’s Alignment Posts. Ensure Docking Station is unlatched by pulling the Latch Handle forward. Hold tablet in landscape orientation, with bottom angled toward Docking Station. - Page 9 Operation - Docking (continued) Pivot the top of tablet into Docking Station and apply light rearward pressure to top center of tablet. An audible click will indicate when tablet is latched. For theft detterence, secure tablet by locking Docking Station with supplied key (Hardware Kit item 2).
-
Page 10: Operation - Undocking
Operation - Undocking If previously locked, unlock Docking Station using supplied key. While holding tablet with one hand, pull the Latch Handle on the top of Docking Station until the Latch Hooks release. Once unlatched grab both sides of tablet, rock the top forward and carefully lift out of Docking Station, top end first. -
Page 11: Power Supply Input 19.5V Dc-In
Related Products Havis offers a wide variety of accessory products specifically for use with the DS-DELL-600 Series Docking Station. For more information or to order, please visit www.havis.com. LPS-131 90W Power Supply External power supply and cable for Dell Laptops with cigarette lighter adaptor. - Page 12 Havis, Inc. 75 Jacksonville Road Warminster, PA 18974 www.havis.com 1-800-524-9900 DS-DELL-600-SERIES_OMN_10-15...
