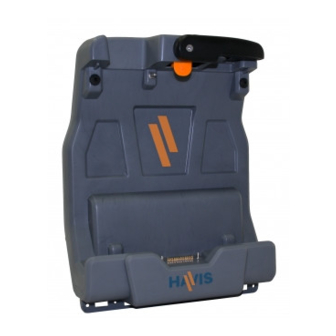

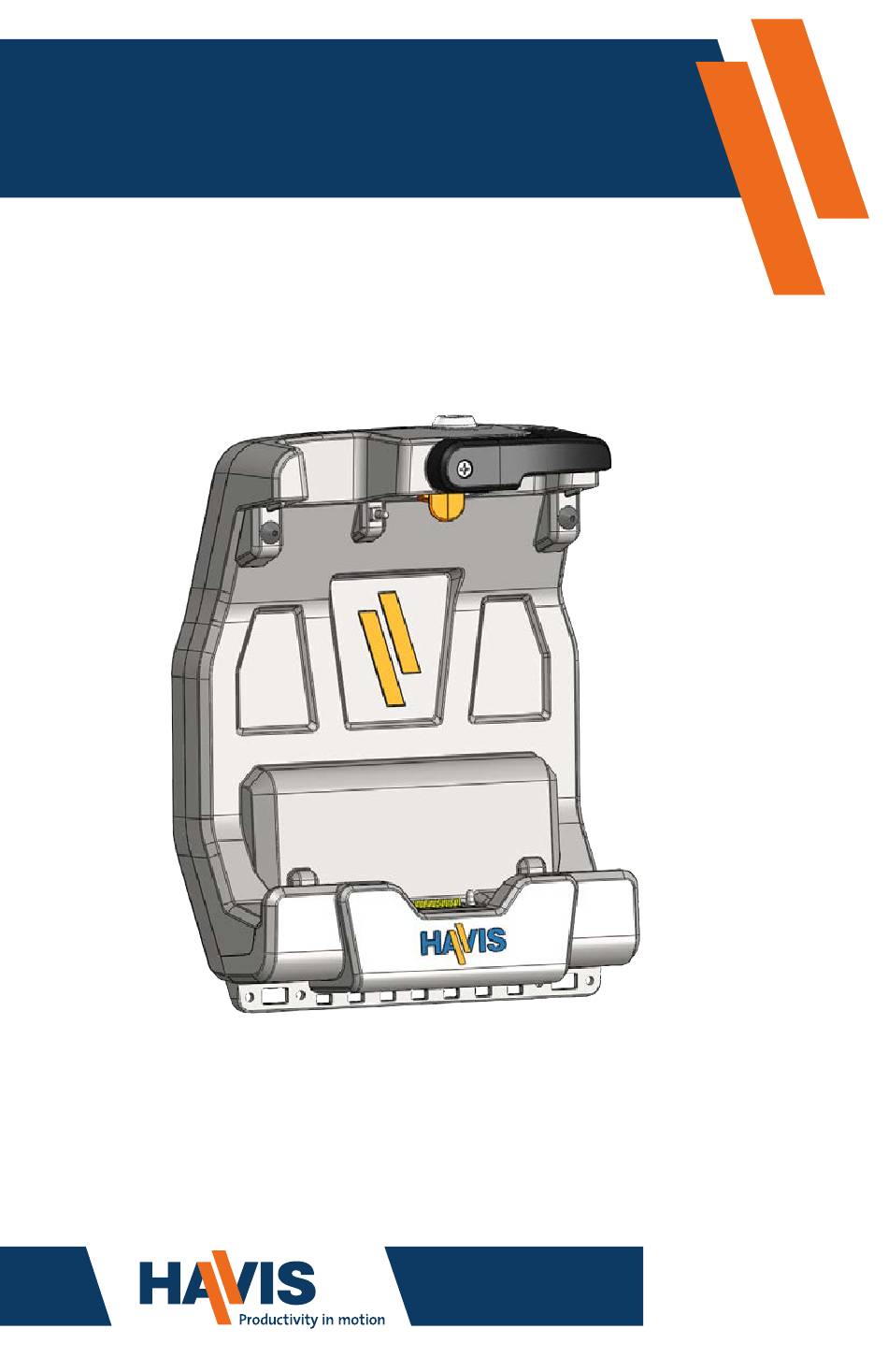

- Page 1 Owner’s Manual Havis Docking Station For Getac F110 Rugged Tablet DS-GTC-200 Series DS-GTC-201 DS-GTC-202 DS-GTC-203 DS-GTC-201-3 DS-GTC-202-3 DS-GTC-203-3...
- Page 2 Before Beginning (Original Instructions) Havis is pleased to provide this Owner’s Manual to aid in the proper installation and use of the DS-GTC-200 Series Docking Station for the Getac F110 Rugged Tablet. This Owner’s Manual applies to the following Part Numbers:...
-
Page 3: Table Of Contents
Bruce Jonik, Director of Engineering , Havis, Inc. FCC 47CFR, Part 15 compliance: This is an FCC Class B device. Any changes or modifications to the model DS-GTC-20X not expressly approved by Havis, Inc. could void the user's authority to operate this equipment. -
Page 4: Parts Included
Parts Included Docking Station Latch Handle Barrel Lock Latch Tab Locator Pin Bumpers Docking Connector Mounting Holes (x4) (VESA 75) Ports Strain Relief Front Facing USB Mounting Locations... -
Page 5: Port Replication Capability
Parts Included (continued) Hardware Kit This Hardware Kit includes: 1. Zip Ties (6) 2. Keys (2) 3. M4 x 0.7 x 25mm long Pan Head Screws (5) 4. Split Lock Washers (5) 5. Washers, M4 (5) Tools required for installation: •... -
Page 6: Installation
Installation NOTE: If you are mounting the optional Front Exiting USB Cable (Part # DS-DA-311), please refer to page 11 before beginning Installation. Install the Docking Station to the Motion Device using four (4) M4 x 0.7 x 25mm long Pan Head Screws (Hardware Kit Item 3), four (4) Split Lock Washers (Hardware Kit Item 4), and four (4) Washers, M4 (Hardware Kit Item 5). -
Page 7: Cable Management
Cable Management Tip the Docking Station to a position that is comfortable to work with. Install all cables that are necessary for computing needs. Use Zip Ties (Hardware Kit Item 1) and the Strain Relief Points on teh bottom of the Docking Station to secure cables and reduce risk of accidental disconnects. -
Page 8: Operation - Docking
NOTE: Ensure a proper connection by aligning the tablet’s Alignment Sockets with the Docking Station’s Alignment Posts Alignment Posts Alignment Sockets DS-GTC-200 Series Docking Station Back Side of Getac F110 Rugged Tablet Ensure Docking Station is unlatched by lifting Latch Handle. - Page 9 Operation - Docking Hold tablet in landscape orientation, with bottom angled toward Docking Station. Lower tablet into the bottom of the Docking Station. Pivot tablet so the top aligns with the Locator Pin at the top of the Docking Station. Lower the Latch Handle to secure tablet in place. Latch Tab will engage in front of F110 Tablet...
-
Page 10: Operation - Undocking
Operation - Undocking If previously locked, unlock Docking Station using supplied key. While holding tablet with one hand, lift the Latch Handle on the top of Docking Station. Once unlatched grab both sides of tablet, rock the top forward and carefully lift out of Docking Station, top end first. -
Page 11: Optional Accessories
Optional Accessories DS-DA-311 - Remote USB Extension Cable (For further Installation Instructions, refer to the Instructions included with DS-DA-311) Determine if USB will exit the left or right side of Docking Station. Remove the Screws from USB Cable. Align the female end of the USB Cable with mounting surface hole pattern. Insert Screws and Lock Washers and tighten Screws. - Page 12 Related Products Havis offers a wide variety of accessory products specifically for use with the DS-GTC-200 Series Docking Station. DS-DA-311 Side Exiting USB Cable Allows for more convienent access for up to two (2) of the available USB 2.0 ports. Can be mounted to the right, left, or both sides on DS-GTC-200 Series Docking Stations.
