Havis, Inc.
75 Jacksonville Road, PO Box 2099
Warminster, PA 18974
47801 Anchor Court
Plymouth, MI 48170
www.havis.com
1-800-524-9900
DS-PAN-800-SERIES_OMN_6-13
Owner's Manual

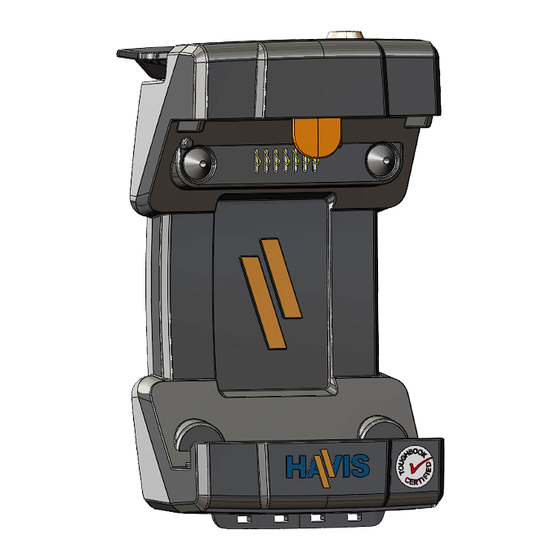

Havis Docking Station
For Panasonic Toughpad JT-B1
DS-PAN-800 Series
DS-PAN-801
DS-PAN-802
DS-PAN-803
www.havis.com
1-800-524-9900
Advertisement
Related Manuals for Havis DS-PAN-800 series
Summary of Contents for Havis DS-PAN-800 series

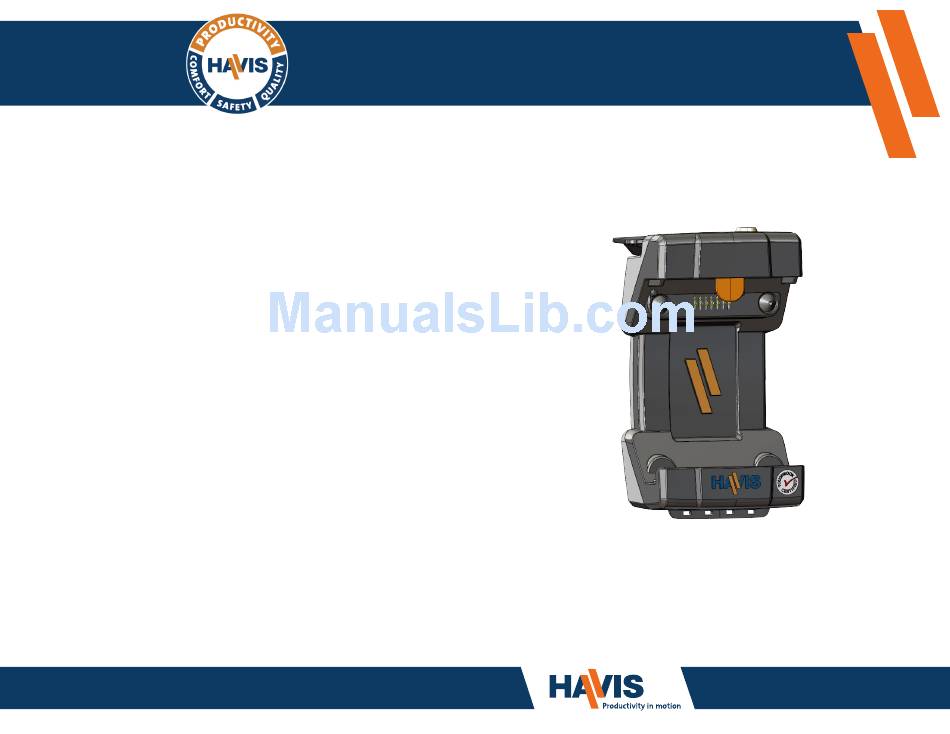

- Page 1 Owner’s Manual Havis Docking Station For Panasonic Toughpad JT-B1 DS-PAN-800 Series DS-PAN-801 DS-PAN-802 DS-PAN-803 Havis, Inc. 75 Jacksonville Road, PO Box 2099 Warminster, PA 18974 47801 Anchor Court Plymouth, MI 48170 www.havis.com 1-800-524-9900 www.havis.com 1-800-524-9900 DS-PAN-800-SERIES_OMN_6-13...
-
Page 2: Before Beginning
Before Beginning Related Products (Original Instructions) Havis is pleased to provide this Owner’s Manual to aid in the proper Havis offers a wide variety of accessory products specifically for use installation and use of the DS-PAN-800 Series Docking Station for with the DS-PAN-800 Series Docking Station. -
Page 3: Operation - Undocking
Bruce Jonik, Director of Engineering , Havis, Inc. FCC 47CFR, Part 15 compliance: This is an FCC Class B device. Any changes or modifications to the model DS-PAN-80X not expressly approved by Havis, Inc. could void the user's authority to operate this equipment. -
Page 4: Port Replication Capability
(For attaching Docking Station to VESA 75mm hole pattern equipment with Pan Head M4 x 0.7 x 12mm Screws) NOTE: Once docked, tablet battery will only charge between 10° C - 35° C. Please refer to tablet owner’s manual for more information www.havis.com • 1-800-524-9900... - Page 5 ALIGNMENT OF TABLET ON DOCKING STATION. Your tablet’s Alignment Sockets will align with the Docking Station’s Alignment Posts. Mounting Holes (x4) Ensure Docking Station is unlatched by lifting Latch Handle. (VESA 75mm Hole Pattern) Ports Strain Relief Anchor Points www.havis.com • 1-800-524-9900...
-
Page 6: Installation
Use Zip Ties (Hardware Kit Item 1) to strain relieve cables. Strain Relief Points Torque screws to 20 in-lbs (2.3Nm) ± 10%. are located on the bottom of Docking Station and should be used to anchor each cable. Havis Desktop Stand installation (sold seperately, Part # DS-DA-218). Washer, M4 Lock Washer, M4 Create a service loop with cables to ensure that no tension is on the M4 x 0.7x12mm...
