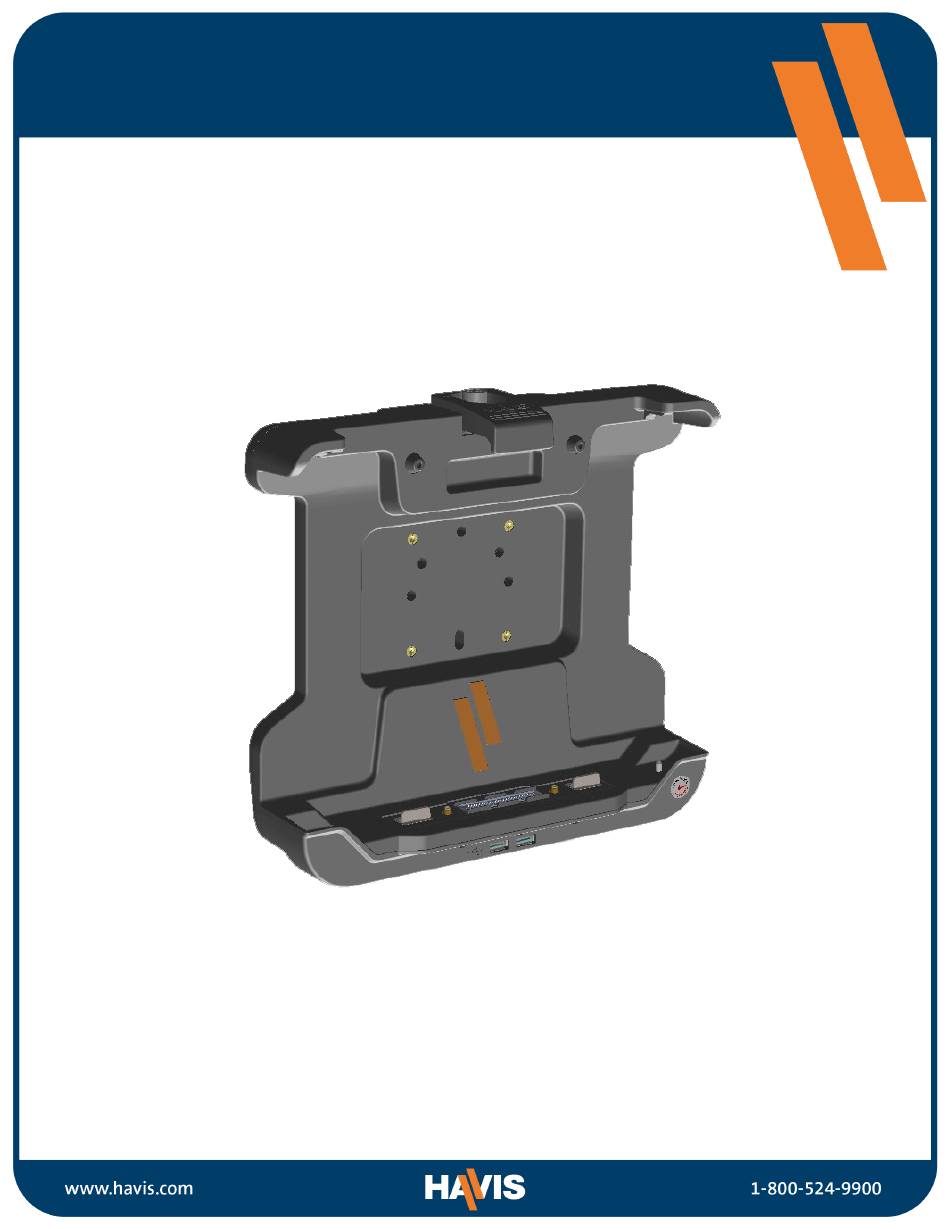

- Page 1 Owner’s Manual Havis Docking Station For Panasonic Toughbook 33 Tablet DS-PAN-1200 Series DS-PAN-1201 DS-PAN-1203 DS-PAN-1205-2 DS-PAN-1201-2 DS-PAN-1204 DS-PAN-1206 DS-PAN-1202 DS-PAN-1204-2 DS-PAN-1202-2 DS-PAN-1205 Havis, Inc. 75 Jacksonville Road Warminster, PA 18974 DS-PAN-1200-SERIES_OMN_4-18...
-
Page 2: Before Beginning
120 W certifiée de qualité automobile approuvée par Panasonic et conçue pour une sortie continue et régulée de 15,6 VDC (numéro de pièce Havis LPS-103 ou équivalent). Le non-respect de cette exigence entraînera des dommages au produit qui ne sont PAS réparables et qui ne sont PAS couverts par la garantie. -
Page 3: Specifications
Bruce Jonik, Director of Engineering , Havis, Inc. FCC 47CFR, Part 15 compliance: This is an FCC Class B device. Any changes or modifications to the model DS-PAN-120X not expressly approved by Havis, Inc. could void the user's authority to operate this equipment. -
Page 4: Parts Included
Parts Included Docking Station Barrel Lock Latch Hook Docking Connector Alignment Posts Ground Pins (x2) Mounting Holes VESA 75, and RAM 2.25” Ball (3-hole 120° pattern) Power Cable Stain Relief Ports Strain Relief Points... -
Page 5: Antenna Identification
4. Split Lock Washers (5) 5. Washers, M4 (5) Tools required for installation: • #2 Phillips (For M4 Pan Head Screws) Antenna Identification DS-PAN-1201-2, DS-PAN-1202-2, DS-PAN-1204-2, DS-PAN-1205-2 • HAVIS ANTENNA • HAVIS ANTENNA Tablet Interface Antenna Connectors (TNC) Toughbook 33 Tablet... -
Page 6: Port Replication Capability
Port Replication Capability Rearward Facing Ports DS-PAN-1201, DS-PAN-1201-2, DS-PAN-1202, DS-PAN-1202-2 External Antenna Switch Power Input Ethernet Serial Antenna (TNC) USB 2.0 (x2) DISABLED / ENABLED RJ45 (x2) Optional: Part IDs USB 3.0 (x2) DS-PAN-1201-2 DS-PAN-1202-2 Rearward Facing Ports DS-PAN-1204, DS-PAN-1204-2, DS-PAN-1205, DS-PAN-1205-2 External Antenna Switch Power Input Ethernet... -
Page 7: Installation
(Hardware Kit Item 4), and four (4) Lock Washers, M4 (Hardware Kit Item 5), secure the Docking Station to device. Torque screws to 20 in-lbs (2.3Nm) ± 10% A) Havis Desktop Stand installation (sold separately, Part # DS-DA-218). Washer, M4 Lock Washer, M4 M4 x 0.7 x 20mm... -
Page 8: Cable Management
Cable Management 1) Tip the Docking Station to a position that is comfortable to work with. 2) Install all cables that are necessary for computing needs. 3) Use Zip Ties (Hardware Kit Item 1) and the Strain Relief Points to secure cables and reduce risk of accidental disconnects. -
Page 9: Operation - Docking
Alignment Sockets with the Docking Station’s Alignment Posts Alignment Posts on the Alignment Sockets on the bottom of DS-PAN-1200 Series Docking Station Panasonic Toughbook 33 Tablet 1) Docking Station must be unlatched before docking your tablet. Push down on the Barrel Lock button and release slowly. - Page 10 Operation - Docking (continued) 2) Hold tablet in landscape orientation, with bottom mounted docking connector angled toward Docking Station. Lower tablet into the bottom of the Docking Station. 3) Pivot tablet so it sits flush in the Docking Station and hold while depressing the Latch Handle to secure tablet in place.
-
Page 11: Operation - Undocking
Operation - Undocking 1) If previously locked, unlock Docking Station using supplied key. 2) Secure tablet to avoid inadvertent ejection from Docking Station. Push down on the Barrel Lock button and release quickly taking care not to obstruct the travel of the Latch Hook. If the Latch Hook does not extend fully to its unlatched position, lift up lightly on the front of the Latch Hook to fully release. -
Page 12: Related Products
Related Products Havis offers a wide variety of accessory products specifically for use with your Docking Station. For more information or to order, please visit www.havis.com. LPS-103 120W Power Supply External in-vehicle power supply and cable for Panasonic Tougbook 33 with cigarette lighter adaptor.
