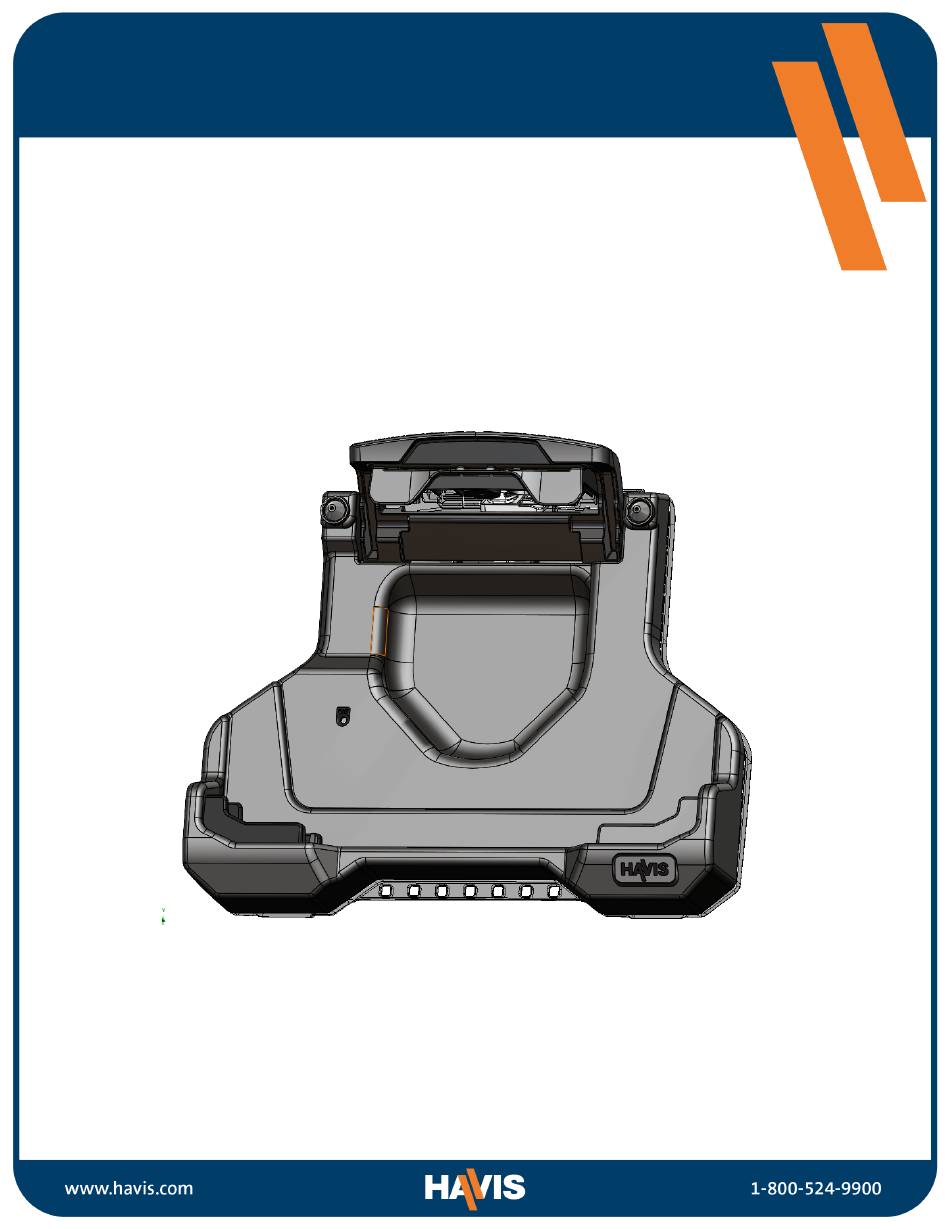

- Page 1 Owner’s Manual Havis Docking Station For Zebra ET60, ET65, ET60W and ET65W DS-ZEB-500 Series This owner’s manual applies to the following part numbers: DS-ZEB-501 DS-ZEB-501-3 DS-ZEB-503 DS-ZEB-504 DS-ZEB-504-3 DS-ZEB-500_SERIES_OMN_12-24...
-
Page 2: Before Beginning
Before Beginning Havis is pleased to provide this Owner’s Manual to aid in the proper installation and use of the DS-ZEB-500 Series Docking Station for the Zebra ET6x 10.1” Tablet. For questions regarding the set-up of your DS-ZEB-500 Series Docking Station, please contact Havis at 1-800-524-9900 or visit www.havis.com for additional product support and information. -
Page 3: Avant De Commencer
Avant de commencer Havis est ravi de fournir ce manuel du propriétaire pour faciliter l'installation et à assurer une utilisation adéquate de la station d’accueil de série DS-XXX-#### pour le insérer la marque et le modèle de l'ordinateur. Pour toute question concernant la configuration de votre station d'accueil de série DS-XXX-####, veuillez communiquer avec Havis au 1-800-524-9900 ou visitez le www.havis.com... - Page 4 Specifications Tablet, Set-Up and Port Specifications Item Description Vendor Download Link Version Identification Specifications Serial Port FTDI https://ftdichip.c Ver 2.12.36.4U for Windows VID=0403, Pin 9 (5V/1A) om/drivers/vcp- (or later) PID=6015 drivers/ Rear USB Microchip WIN OS PnP USB 2.0 (5V/1.5A) Ethernet Microchip https://www.mic...
- Page 5 Specifications Docking Station Configuration (SKU) Description Power Options Dock Input Weight : Voltage Lbs (kg) Requirement DS-ZEB-501 Standard External Power Supply 12V DC 2.10 (0.95) DS-ZEB-501-3 Standard I/O with Pass-Thru Antenna External Power Supply 12V DC 2.13 (0.97) DS-ZEB-503 Cradle None None 1.94 (0.88)
-
Page 6: Parts Included
Parts Included Docking Station Lock Latch Handle Latch Hook Rubber Bumpers LED 12V Power Input Indicator Docking Connectors External – Internal Antenna Switch Mounting Holes (x4) (VESA 75mm Hole Pattern) Pass- Through Antenna (DS-ZEB-501-3 AND DS-ZEB-504-3) I/O Ports (DS-ZEB-504-3 Shown) Strain Relief Mounting Points (for use with Hardware Kit Item #6) Tablet Scanner Window... -
Page 7: Antenna Identification
Parts Included (continued) Hardware Kit (HWK-0035) This Hardware Kit includes: 1. Zip Ties (4) 2. Keys (2) 3. M4 x 0.7 x 12mm long Pan Head Screws (5) 4. Split Lock Washers (5) 5. Washers, M4 (5) ... -
Page 8: Port Replication Capability
Port Replication Capability STANDARD I/O DS-ZEB-501, DS-ZEB-501-3 External - USB 2.0 Power Input Antenna (SMA) Internal Type A 12.0 VDC DS-ZEB-501-3 Antenna 5V/1.5A ONLY Switch (EXT-INT) DS-ZEB-501-3 ONLY... - Page 9 Port Replication Capability ADVANCED I/O DS-ZEB-504, DS-ZEB-504-3 Ethernet 2X USB 2.0 Powered Serial External - Power Input Antenna (SMA) 10/100Mb/s Type A RS-232 (DB-9) Internal 12.0 VDC DS-ZEB-504-3 5V/1.5A 5V/1A (ON PIN9) ONLY Antenna Switch (EXT-INT) DS-ZEB-504-3 ONLY...
-
Page 10: Installation
Installation 1) Orient the docking station in a position that is comfortable to work with. 2) Install all cables that are necessary for computing needs. 3) Use zip-ties to strain relieve cables to the strain relief points, routing all cables as needed high and tight to docking station. -
Page 11: Cable Management
Cable Management 1) Orient the docking station in a position that is comfortable to work with. 2) Secure the cable bundle with as many zip-ties as necessary. 3) Create a service loop with the cable bundle to ensure that no tension is on the connectors, and to enable the intended range of motion. -
Page 12: Operation - Docking
Operation - Docking CAUTION DO NOT FORCE THE TABLET ONTO THE DOCKING STATION. IF THERE IS RESISTANCE, CHECK THE ALIGNMENT OF TABLET ON THE DOCKING STATION. Alignment Posts on the DS-ZEB-500 Series Alignment Sockets on the Zebra ET6x Docking Station Tablets. - Page 13 Operation - Docking 1) Ensure the Docking Station is unlatched by lifting the Latch Handle. Hold the tablet in landscape orientation with the bottom angled toward the Docking Station, aligning the tablet’s Docking Connector with the Docking Station’s Docking Connector. Lower the tablet into the bottom of the Docking Station.
-
Page 14: Operation - Undocking
Operation - Undocking 1) If previously locked, unlock the Docking Station using the supplied key. 2) Lift only the Latch Handle up and rearward. Note that the Latch Hook is spring loaded and will follow the Latch Handle. 3) Once unlatched grab the tablet, pivot it forward, and carefully lift the tablet out of the Docking Station top end first. -
Page 15: Regulatory Information
• Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Responsible party (contact for FCC matters only): Havis, Inc. 75 Jacksonville Road Warminster, PA 18974 havis.com/contact-us... - Page 16 Conformité Européene (CE) Mark The CE marking on a Havis product indicates conformity to the provisions of applicable European Union (EU) directives. The EU Declaration of Conformity (DoC) is the manufacturer’s declaration that the product...
-
Page 17: Related Products
Related Products Havis offers a wide variety of accessory products specifically for use with your Docking Station. For more information or to order, please visit www.havis.com. DS-DA-501 Replacement Keys Set of (2) replacement keys for HAVIS Docking Stations. LPS-191 20-60V Isolated Power Supply 20-60V Isolated Power Supply For Use With DS-ZEB-500 Series Docking Stations.
