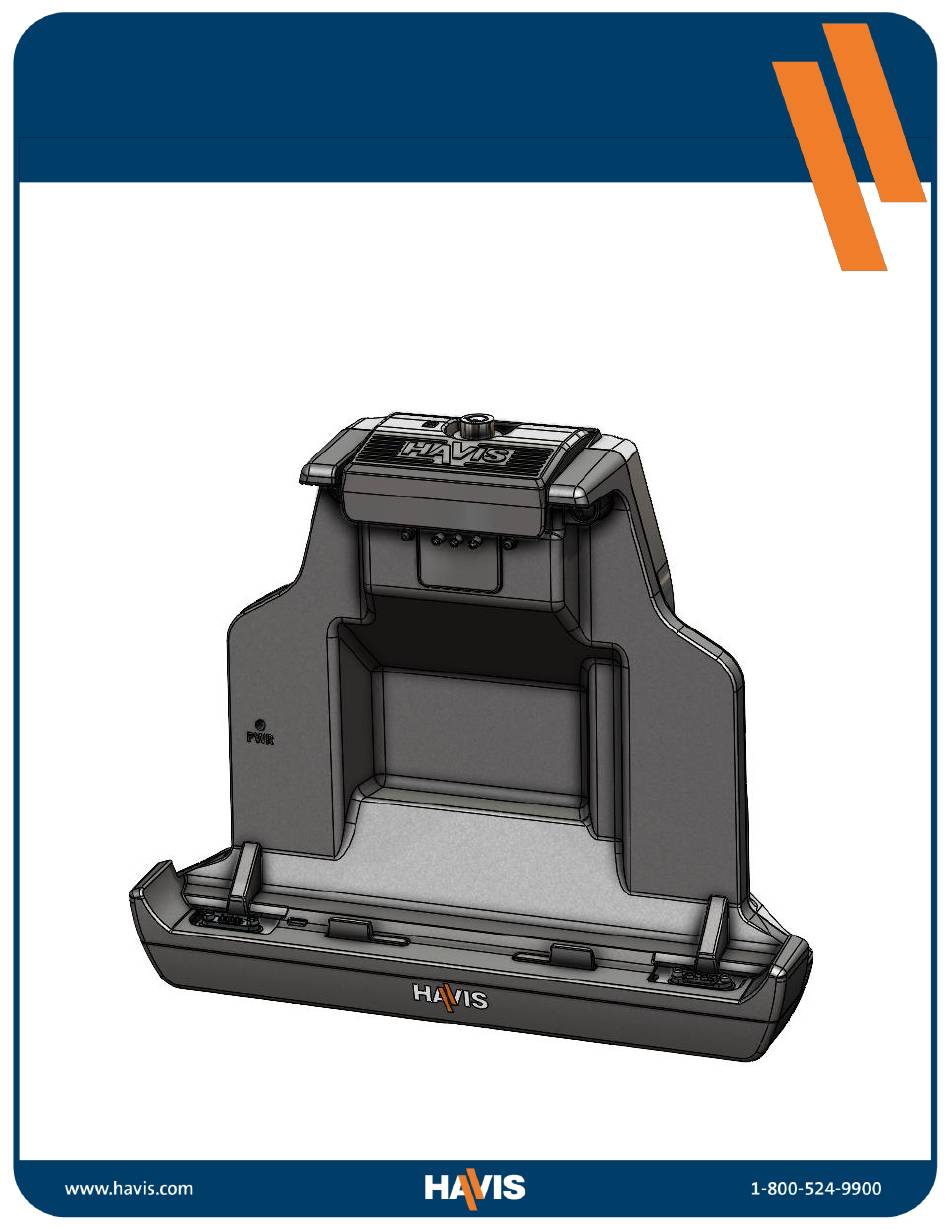

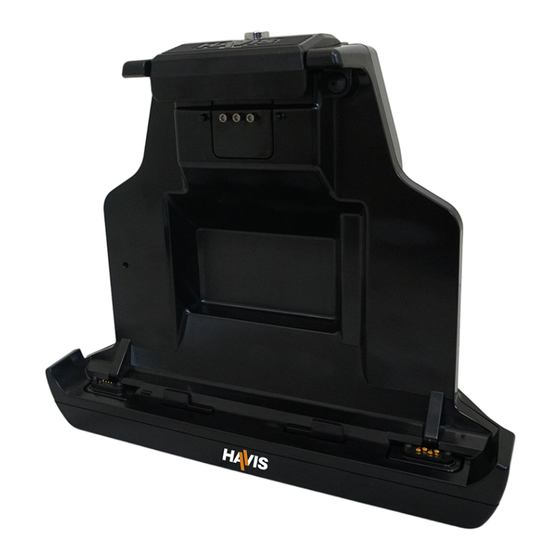

- Page 1 Owner’s Manual Havis Docking Station For Zebra ET8X 12” Tablet w/ Rugged Frame DS-ZEB-400 Series DS-ZEB-401 DS-ZEB-401-3 DS-ZEB-402 DS-ZEB-402-3 DS-ZEB-403 DS-ZEB 400 SERIES_OMN_02-24...
-
Page 2: Before Beginning
Before Beginning Havis is pleased to provide this Owner’s Manual to aid in the proper installation and use of the DS-ZEB-400 Series Docking Station for the Zebra ET8X 12” Tablet with Rugged Frame. For questions regarding the set-up of your DS-ZEB-400 Series Docking Station, please contact Havis at 1-800-524-9900 or visit www.havis.com for additional product support and information. - Page 3 DS-ZEB-400 Series Specifications 3.42” 13” 86.9 mm 330.2 mm Unlatched 11.94 ” 303.5 mm Latched 11.245 ” 285.5 mm VESA 75 Mounting Pattern M4 x 0.7 Thread 4.30” 109.3 mm Dock Centerline...
-
Page 4: Parts Included
Parts Included Docking Station Lock Latch Pass Through Antenna DS-ZEB-401-3 DS-ZEB-402-3 LED Power Indicator Docking Connectors Alignment Posts VESA 75 Mounting Pattern (M4 X 0.7 Threaded Inserts) Cable Strain Relief Points Pass Through Antenna DS-ZEB-401-3 DS-ZEB-402-3 DC Power Input I/O Ports... - Page 5 Antenna Designation (DS-ZEB-401-3, DS-ZEB-402-3) HAVIS Zebra ET8XX- Zebra ET8XX- Zebra ET8XX- Zebra ET8XX- Dock XXXXX-XX0 XXXXX-XXA XXXXX-XXB XXXXX-XXC Antenna (5G SKU) (4G SKU) ANT A NONE NONE WWAN WWAN ANT B NONE NONE ANT C NONE WIFI WWAN WIFI ANTENNA CONNECTORS (SMA...
-
Page 6: Port Replication Capability
Port Replication Capability STANDARD I/O Powered Serial Port DS-ZEB-401, DS-ZEB-401-3 RS-232 (DB-9) 5V/1A Antenna (DS-ZEB-401-3) USB 3.0 Type A Power Port Ethernet, RJ45 (2x) USB 3.0 Type A USB 3.0 Type C 1 Gb/s ADVANCED I/O Powered Serial Port DS-ZEB-402, DS-ZEB-402-3 RS-232 (DB-9) 5V/1A Antenna... -
Page 7: Installation
Parts Included (continued) Hardware Kit (HWK-0031) This Hardware Kit includes: 1. Zip Ties (4) 2. Keys (2) 3. M4 x 0.7 x 20mm long Pan Head Screws (5) 4. Split Lock Washers (5) 5. Washers, M4 (5) ... -
Page 8: Cable Management
Cable Management 1) Tip the Docking Station to a position that is comfortable to work with. 2) Install all cables that are necessary for computing needs. 3) Use Zip Ties (Hardware Kit Item 1) and the Strain Relief Points to secure cables and reduce risk of accidental disconnects. -
Page 9: Operation - Docking
CHECK ALIGNMENT OF THE TABLET ON THE DOCKING STATION. NOTE: Ensure a proper connection by aligning the tablet’s Alignment Sockets with the Docking Station’s Alignment Posts Alignment Posts on the DS-ZEB-400 Series & Alignment Sockets on the bottom of DS-ZEB-400 Series Docking Station ZEBRA ET8X Tablet with Rugged Frame. - Page 10 Operation - Docking 2) Hold the tablet in landscape orientation, and ensure the alignment sockets on the tablet are angled toward the Docking Station. Lower the tablet onto the docking connector. SIDE VIEW 3) Pivot the tablet so it sits flush in the Docking Station and hold while depressing the Latch to secure the tablet in place.
-
Page 11: Operation - Undocking
Operation - Undocking 1) If previously locked, unlock the Docking Station using supplied key. 2) Secure tablet to avoid inadvertent ejection from Docking Station. Push down on the Lock button and release quickly taking care not to obstruct the travel of the Latch. If the Latch does not extend fully to its unlatched position, lift up lightly on the front of the Latch Hook to fully release. -
Page 12: Regulatory Information
• Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Responsible party (contact for FCC matters only): Havis, Inc. 75 Jacksonville Road Warminster, PA 18974 havis.com/contact-us... - Page 13 European Union Declaration of Conformity The CE marking on a Havis product indicates conformity to the provisions of applicable European Union (EU) directives. The EU Declaration of Conformity (DoC) is the manufacturer’s declaration that the product...
-
Page 14: Related Products
Related Products Havis offers a wide variety of accessory products specifically for use with your Docking Station. For more information or to order, please visit www.havis.com. DS-DA-502 Replacement Keys Set of (2) replacement keys for HAVIS Docking Stations LPS-189 Power Supply w/Cigarette Input Cable...
