- Page 1 Owner’s Manual Havis Docking Station For Getac RX10 Rugged Tablet DS-GTC-500 Series DS-GTC-501 DS-GTC-503 DS-GTC-506 DS-GTC-501-3 DS-GTC-503-3 DS-GTC-506-3 DS-GTC-502 DS-GTC-505 DS-GTC-502-3 DS-GTC-505-3 www.havis.com 1-800-524-9900...
- Page 2 Before Beginning (Original Instructions) Havis is pleased to provide this Owner’s Manual to aid in the proper installation and use of the DS-GTC-500 Series Docking Station for Getac RX10 Rugged Tablets. For questions regarding the set-up of your DS-GTC-500 Series Docking Station, please contact Havis at 1-800-524-9900 or visit www.havis.com for additional...
-
Page 3: Table Of Contents
Table of Contents Specifications Parts Included Port Replication Capability Antenna Identification Installation Cable Management Operation - Docking Operation - Undocking Precautions • Do not place metal objects or containers of liquid on top of the Docking Station. • If a malfunction occurs, immediately unplug the Power Supply and remove the laptop. •... -
Page 4: Specifications
Bruce Jonik, Director of Engineering , Havis, Inc. FCC 47CFR, Part 15 compliance: This is an FCC Class B device. Any changes or modifications to the model DS-GTC-50X not expressly approved by Havis, Inc. could void the user's authority to operate this equipment. -
Page 5: Parts Included

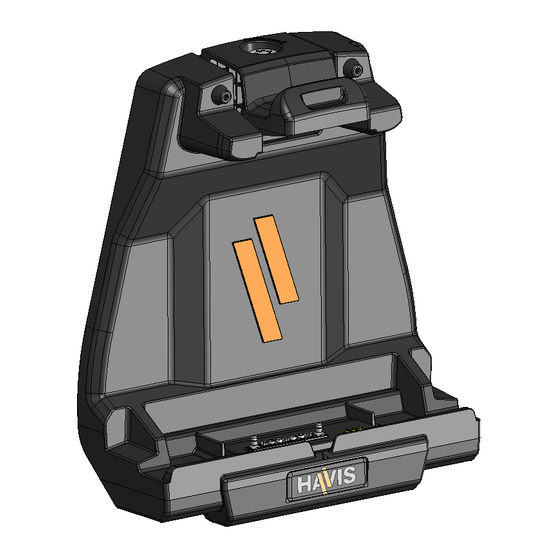

Parts Included Docking Station Barrel Lock Latch Hook Locator Pins Docking Connector Alignment Guides RF Antenna to Tablet Interface Mounting Holes (x4) (VESA 75 - M4 x 0.7 thread) Strain Relief Ports... -
Page 6: Port Replication Capability
Power Input (x2) Powered Serial Antenna (optional) SMA Connectors Parts DS-GTC-501-3, DS-GTC-502-3, DS-GTC-503-3, DS-GTC-505-3, and Parts DS-GTC-505, DS-GTC-505-3, DS-GTC-506-3 DS-GTC-506, & DS-GTC-506-3 Antenna Identification (DS-GTC-501-3, DS-GTC-502-3, DS-GTC-503-3, DS-GTC-505-3, DS-GTC-506-3) - GPS - WLAN - WWAN Downward Facing Antennas Tablet Interface... -
Page 7: Installation
(Hardware Kit Item 4), and four (4) Washers, M4 (Hardware Kit Item 5). Torque screws to 20 in-lbs (2.3Nm) ± 10%. Split Lock Washer M4 x 0.7 x 25mm Screw Washer, M4 Typical Motion Device Example (not included) www.havis.com • 1-800-524-9900... -
Page 8: Cable Management
Cable Management Tip the Docking Station to a position that is comfortable to work with. Install all cables that are necessary for computing needs. Use Zip Ties (Hardware Kit Item 1) and the Strain Relief Points on the bottom of the Docking Station to secure cables and reduce risk of accidental disconnects. -
Page 9: Operation - Docking
Operation - Docking DO NOT FORCE TABLET ONTO DOCKING STATION. IF THERE IS RESISTANCE, CHECK ALIGNMENT OF TABLET ON DOCKING STATION. NOTE: Ensure a proper connection by aligning the tablet’s Alignment Sockets with the Docking Station’s Alignment Posts Alignment Posts Alignment Sockets DS-GTC-500 Series Docking Station Bottom of Getac RX10 Rugged Tablet... -
Page 10: Operation - Undocking
Operation - Docking (continued) For theft deterrence, secure computer by locking Docking Station with supplied key (Hardware Kit Item 2). Operation - Undocking If previously locked, unlock Docking Station using supplied key. While holding computer with one hand, push down on Latch Mechanism with thumb. - Page 11 Operation - Undocking (continued) While Latch Mechansim is pushed down, carefully rock the top of the computer forward and lift out of Docking Station www.havis.com • 1-800-524-9900...
- Page 12 Related Products Havis offers a wide variety of accessory products specifically for use with the DS-GTC-500 Series Docking Station. For more information or to order, please visit www.havis.com. LPS-116 95W Power Supply External in-vehicle power supply and cable for Getac RX10 Rugged Tablet with cigarette lighter adaptor.
