- Page 1 DS-PAN-110 Series Havis Rugged Mobile Docking Station For Panasonic CF-30 CF-31 Toughbooks & Owner’s Manual DS-PAN-111 DS-PAN-112 DS-PAN-113 DS-PAN-111-1 DS-PAN-112-1 DS-PAN-111-2 DS-PAN-112-2 www.havis.com 1-800-524-9900...
- Page 2 (Original Instructions) Havis is pleased to provide this Owner’s Manual to aid in the proper installation and use of the DS-PAN-110 Series Docking Station for the Panasonic CF-30 & CF-31 laptop computers. For questions regarding the set-up of your DS-PAN-110 Series Docking Station, please contact Havis at 1-800-524-9900 or visit www.havis.com/CF31 for...
-
Page 3: Table Of Contents
-20° C to 60° C ( -4° F to 140° F ) * DS-PAN-111 DECLARATION OF CONFORMITY FOR CE MARKING Havis, Inc. declares that their DS-PAN-110 SERIES DOCKING STATIONS: Are classified within the following EU Directives: EU Electromagnetic Compatibility Directive 2004/108/EC... -
Page 4: Parts Included

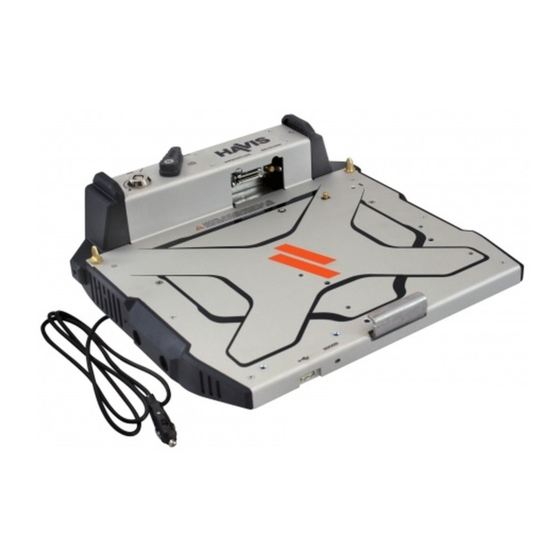

Parts Included Docking Station Lock Latch Handle Brass Locator Tab Docking Connector Brass Locator Pin Front USB Port Front Hook Dock Indicator LED Mounting Bracket Hardware Kit This Hardware Kit includes: 1. Zip Ties/Push Pins (2) 2. Keys (2) 3. 1/4”-20 Screws (7) 4. -
Page 5: Installation & Cable Management
Installation & Cable Management 1). Install the Mounting Bracket to the Motion Device using (3) 1/4“-20 screws (Hardware Kit Item 3). Torque screws to 13.4Nm (120 in-lbs) ± 10%. NOTE: Numerous hole patterns present in Mounting Bracket should accommodate most competitor’s motion devices. 1/4”-20 Screws Mounting Bracket Typical Motion Device Example... - Page 6 Installation & Cable Management (Continued) 5). Gather all strain relieved cables into a single bundle and secure with Zip Ties to facilitate routing in later installation steps. 6). Lower the Docking Station onto the Mounting Bracket as shown, being cautious not to pinch the cable bundle.
- Page 7 Installation & Cable Management (Continued) 7). Tilt the Motion Device to a position allowing you access to the back side of docking station and route cables out the side as shown. 8). Route cable bundle and tie off to Mounting Bracket with Zip Tie (Hardware kit Item 4).
-
Page 8: Operation - Docking
Operation - Docking • DO NOT MATE COMPUTER TO DOCKING STATION UNLESS COMPUTER’S DOCKING CONNECTOR ACCESS DOOR IS FULLY OPEN OR DAMAGE MAY RESULT. • DO NOT FORCE LAPTOP ONTO DOCKING STATION. IF THERE IS RESISTANCE, CHECK ALIGNMENT OF COMPUTER ON DOCKING STATION. 1). -
Page 9: Dock Indicator Led Diagnostics
Operation - Docking (Continued) 5). For theft deterrence, secure computer by locking Docking Station with supplied key. 6). Power on computer. The Dock Indicator LED will light up green to indicate proper system function. Dock Indicator LED DOCK INDICATOR LED DIAGNOSTICS: GREEN: Computer docked, all ports ready for use. -
Page 10: Zip Tie/Push Pin Information
Operation - Undocking (Continued) 3). Once unlatched grab both sides of computer and carefully lift out of Docking Station, rear end first. Zip Tie/Push Pin Information 1). In the event that a strain relieved cable needs to be removed or replaced, do not attempt to remove entire Zip Tie/Push Pin. -
Page 11: Installation Of Power Supply (Lps-101/Lps-104 - Optional)
Installation of Power Supply (LPS-101/LPS-104 - Optional) NOTE: Refer to Page 1 to ensure that you have the appropriate Power Supply for your Specific computer model. 1). Power off computer and ensure all cables are disconnected from computer. 2). Plug in both input and output cables (supplied with LPS-101/LPS-104) into the Power Supply brick. -
Page 12: Ds-Pan
Related Products Havis offers a wide variety of accessory products for use with the DS-PAN-110 Series Docking Station. For more information or to order please visit www.havis.com. LPS-104 120W Power Supply External power supply and cable for Panasonic CF-31 Toughbooks with cigarette lighter adaptor.
