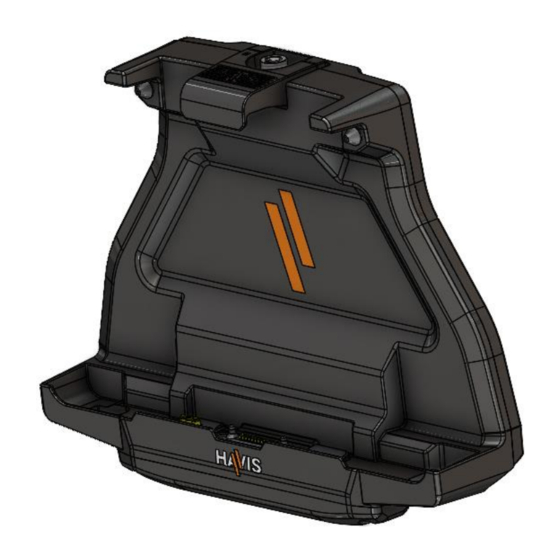

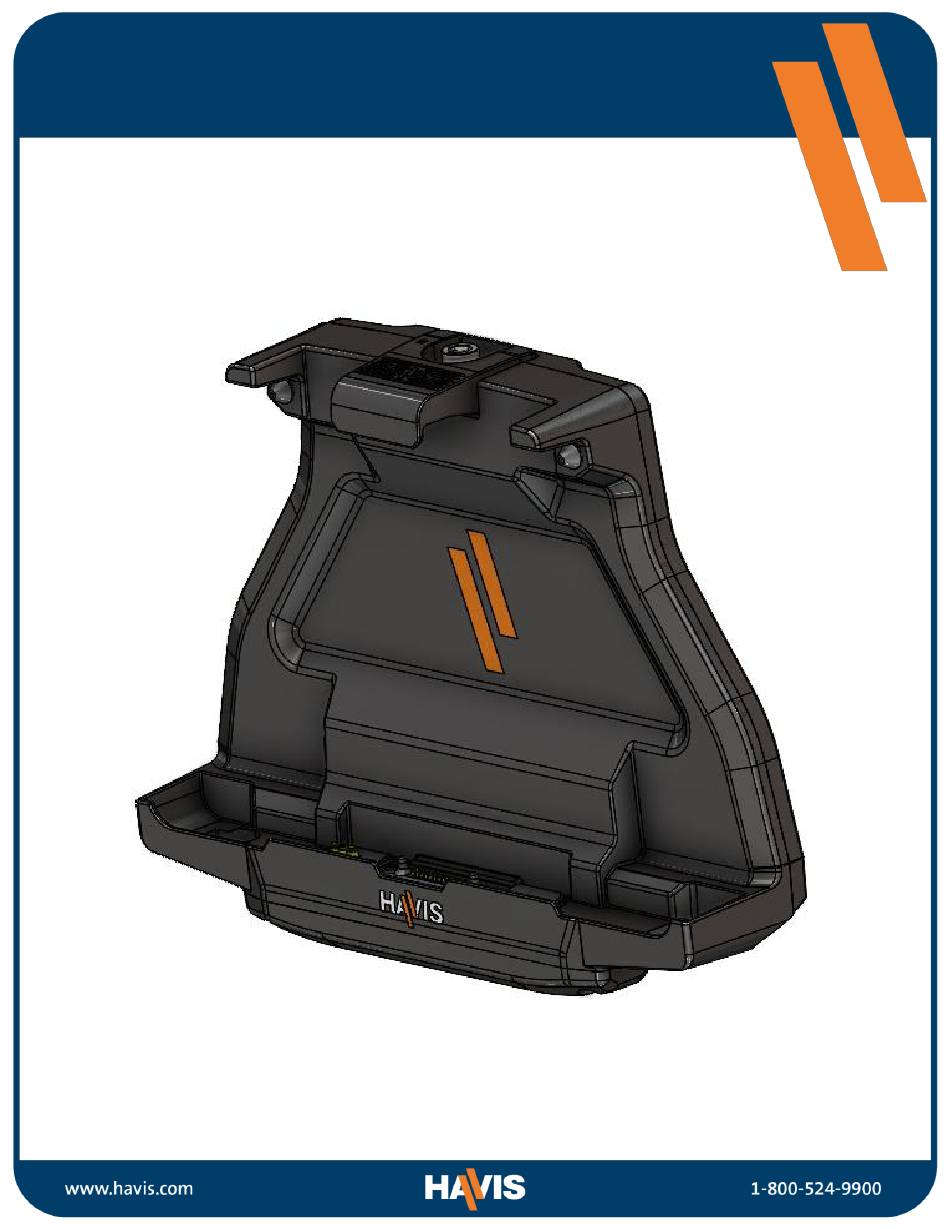

- Page 1 Owner’s Manual Havis Docking Station For GETAC F110 Tablet DS-GTC-220 Series DS-GTC-221 DS-GTC-222 DS-GTC-223 DS-GTC-221-3 DS-GTC-222-3 DS-GTC-223-2 DS-GTC-220-SERIES_OMN_1-22...
-
Page 2: Before Beginning
Before Beginning Havis is pleased to provide this Owner’s Manual to aid in the proper installation and use of the DS-GTC-220 Series Docking Station for the GETAC F110 Tablet. For questions regarding the set-up of your DS-GTC-220 Series Docking Station, please contact Havis at 1-800-524-9900 or visit www.havis.com for additional product support and information. -
Page 3: Specifications
Bruce Jonik, Director of Engineering , Havis, Inc. FCC 47CFR, Part 15 compliance: This is an FCC Class B device. Any changes or modifications to the model DS-GTC-22X not expressly approved by Havis, Inc. could void the user's authority to operate this equipment. - Page 4 Specifications (continued) 3.18” 80.8 mm 13.02” 330.71 mm Latched Unlatched 10.28 ” 10.74 ” 261.1 mm 272.8 mm VESA 75 Mounting Pattern M4 x 0.7 Thread 6.07” 154.2 mm Dock Centerline...
-
Page 5: Parts Included
Parts Included Docking Station Lock Latch Docking Connector VESA 75 Mounting Pattern (M4 X 0.7 Threaded Inserts) Cable Strain Relief Points I/O Ports DC Power Input Pass Through Antenna (Triple, Optional) -
Page 6: Antenna Identification
Parts Included (continued) Hardware Kit (HWK-0031) This Hardware Kit includes: 1. Zip Ties (4) 2. Keys (2) 3. M4 x 0.7 x 20mm long Pan Head Screws (5) 4. Split Lock Washers (5) 5. Washers, M4 (5) Tools required for installation: •... -
Page 7: Port Replication Capability
Port Replication Capability Rearward Facing Ports DS-GTC-221, DS-GTC-221-3, DS-GTC-222 and DS-GTC-222-3 USB 2.0 USB 2.0 2X Serial Port USB 3.0 USB 2.0 Power Input Microphone Headphone Antenna (Optional) HDMI Jack Jack Ethernet RJ45 10/100/1000 Gigabit Ethernet Adapter... -
Page 8: Installation
Pan Head Screws (Hardware Kit Item 3), four (4) Lock Washers, M4 (Hardware Kit Item4), and four (4) Washers, M4 (Hardware Kit Item 5), secure the Docking Station to device. Torque screws to 20 in-lbs. (2.3 Nm) ±10% A) In-Vehicle mounting system installation (HAVIS Motion Device not included) Hardware Kit Item Numbers... -
Page 9: Cable Management
Cable Management 1) Tip the Docking Station to a position that is comfortable to work with. 2) Install all cables that are necessary for computing needs. 3) Use Zip Ties (Hardware Kit Item 1) and the Strain Relief Points to secure cables and reduce risk of accidental disconnects. -
Page 10: Operation - Docking
Operation - Docking 1. Docking Station must be unlatched before docking your tablet. Push down on the Barrel Lock button and release quickly taking care not to obstruct the travel of the Latch Hook. UNLATCHED LATCHED... - Page 11 Operation - Docking 2. Hold tablet in the landscape orientation, with the bottom of the tablet angled toward the Docking Station. Lower the tablet into the bottom of the Docking Station. 3. Pivot tablet so it sits flush in the Docking Station and hold while depressing the Latch Handle to secure the tablet in place.
-
Page 12: Operation - Undocking
Operation - Undocking 1. If previously locked, unlock the Docking Station using the supplied key. 2. Secure tablet to avoid inadvertent ejection from Docking Station. Push down on the Barrel Lock button and release quickly taking care not to obstruct the travel of the Latch Hook. IF the Latch Hook does not extend fully to its unlatched position, lift up lightly on the front of the Latch Hook to fully release. -
Page 13: Related Products
Related Products Havis offers a wide variety of accessory products specifically for use with your Docking Station. For more information or to order, please visit www.havis.com. LPS-140 120W Power Supply External in-vehicle power supply and cable for GETAC F110 Tablet with cigarette lighter adaptor...
