Summary of Contents for Mountup MU0001

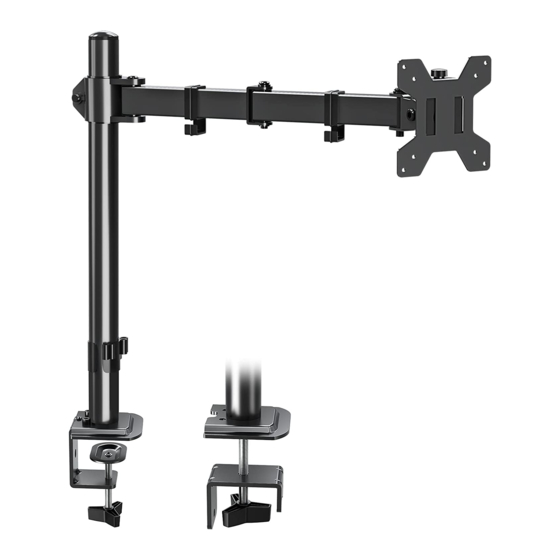

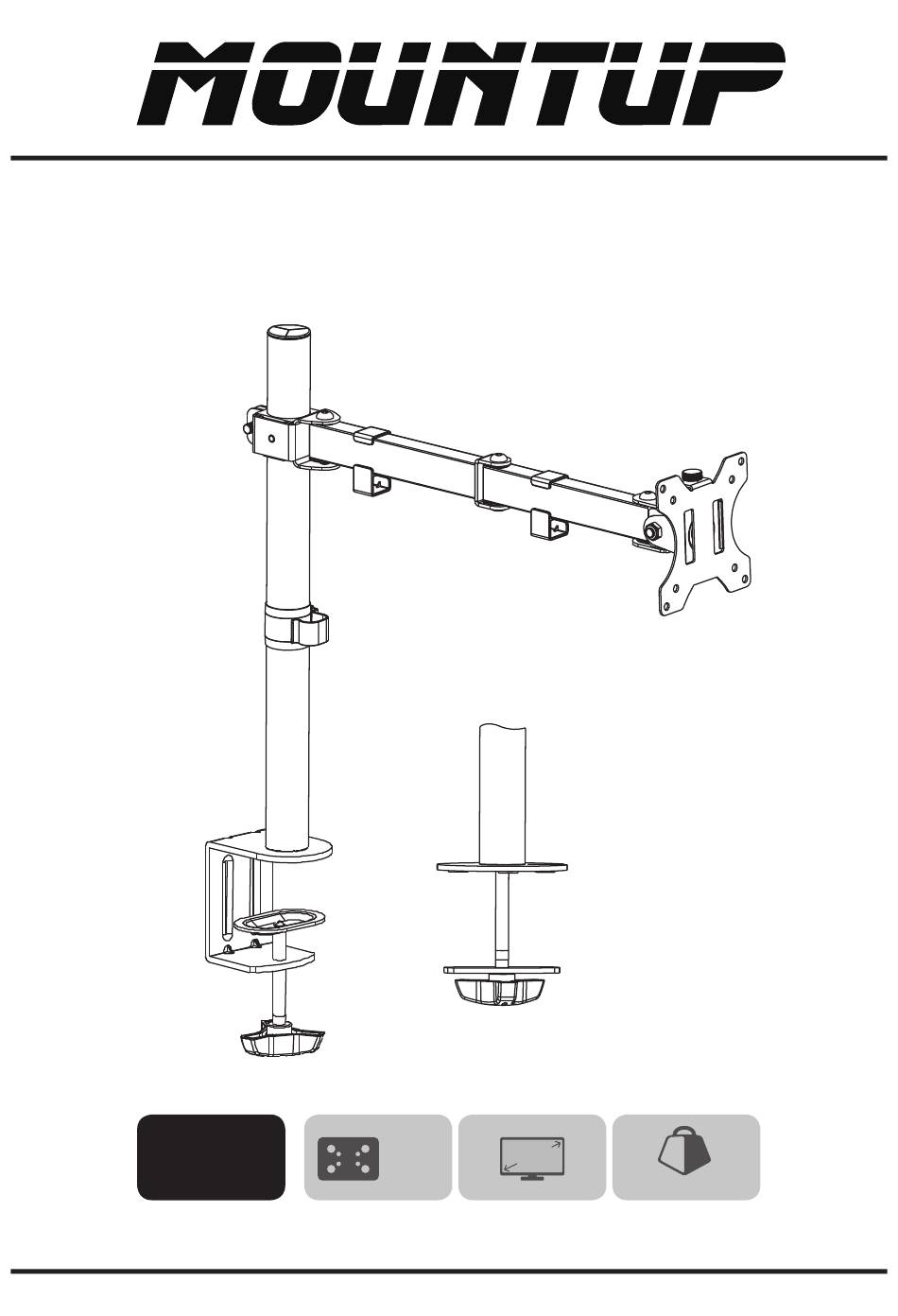

- Page 1 Single Monitor Desk Mount Instruction Manual MU0001 75x75 27" 100x100 8kg/17.6lbs If you have any questions , please contact us. V3.0...
-
Page 2: Package Contents
WARNING! If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product, please contact us. Before starting assembly, verify all parts are included and undamaged. Improper installation may cause damage or serious injury. -
Page 3: Assembly Steps
ASSEMBLY STEPS STEP 1: Clamp Installation OR Grommet Base Installation OPTION A: Clamp Installation Install the Clamp (C) to the Pole (D) using 3pcs Bolt (G). Tighten using 4mm Allen key (K). Secure stand to the desktop by tightening the plastic knob or by using 6mm Allen key (L). 10-80mm... - Page 4 STEP 1: (Continued) OPTION B: Grommet Base Installation If existing grommet hole comes with a plastic protector, remove it to ensure a at surface before installing the desk mount. Loosen the screw, separate the C-clamp (C) into two parts. DESK ø...
-
Page 5: Step 2 : Arm Installation
STEP 2 : Arm Installation Install wire clip (E) and swivel arm (B) to the pole (D). Fasten the bolt with supplied 6mm Allen key (L). Attached the wire clips (J) to the swivel arm (B). - Page 6 STEP 3 : Attached Monitor OPTION A: Flat Back Monitor For flat back monitor, secure VESA plate (A) to monitor using screws (M-A or M-C) and washers (M-E). Tighten the screws using 6mm Allen key (L). CAUTION:To select the correct screws (M-A or M-C) for your monitor, you can try to screw it on your monitor by hand.
- Page 7 STEP 4 : Hang Monitor Slide the monitor onto the head of swivel arm (B). Install the security bolt (I). Make sure the security bolt is installed before you rotate the monitor.
-
Page 8: Step 5: Tilt Adjustment
STEP 5: Tilt Adjustment Tighten the bolt with the supplied 6mm Allen key (L) to x the tilt angle. Refer to below illustrations to adjust tilting angle of your monitor. Note: Fasten/loosen the tilting bolt as needed per arrow direction (+/-) shown in above diagram. -
Page 9: Step 6: Cable Management
STEP 6: Cable Management Manage cables and store Allen keys (K,L) in wire clip (E) for future use. - Page 10 Adjust as Desired Adjust monitor position and rotation. 180° 180° 180° +90° 360° -90° Note: When tilted, if the monitor sags or does not stay, please fasten the tilting bolt on the mount until the monitor can be held at any angle as needed. DESK DESK Pay attention while clamp install !
-
Page 11: Product Dimensions
Product Dimensions ±90° ±90° ±90° ±90° 2.9” 3.9“ 4.48“ ±180°... - Page 12 CAUTION AND MAINTENANCE: • Never allow children to climb, stand, hang, or play on any part of monitor or stand. • This product is intended for indoor use only. Using this product outdoors could lead to product failure and personal injury. •...
