Starting the E5061B
Step 2. Next, if necessary, turn off power supply to the power cable receptacle (Line
Switch) on the rear panel.
Under normal use, never d irectly interrupt the power supply to the power
cable receptacle on the rear panel when the power supply is on. Always
keep the Line Switch ON and never turn it.
If you directly interrupt the power supply to the power cable receptacle
when the power supply is on, or turn off the Line Switch, the shutdown
process will not work. This could damage the software and hardware of
the E5061B and lead to device failure.
Turning on the power supply after a faulty shutdown may cause the
system to start up in a condition called "safe mode." If this occurs, first
shut down the system to set it to the standby state and then turn on the
power supply again to start up the system in normal mode.

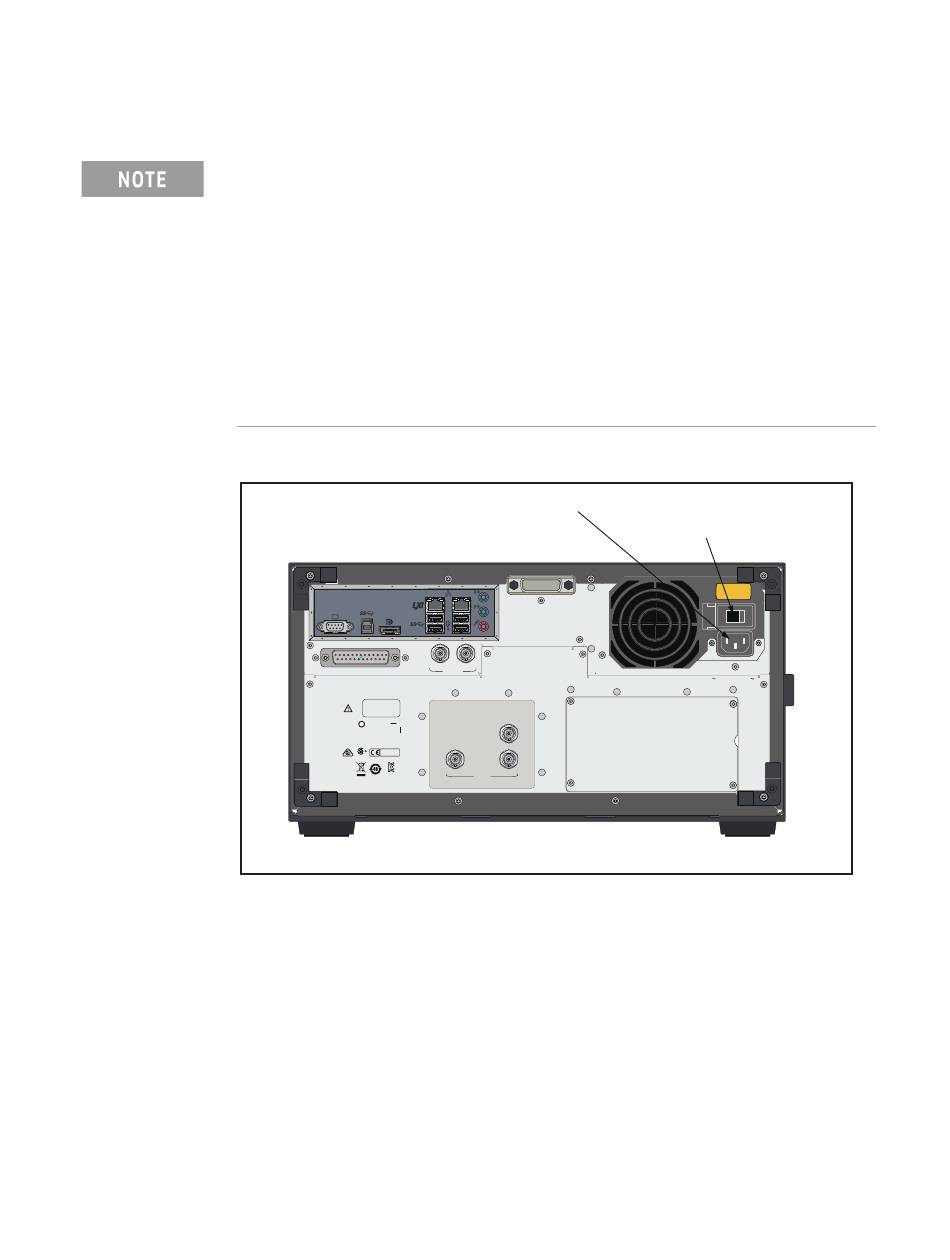

Figure 1-5
Line switch (Always ON) and power cable receptacle
e5061b061
Disconnection from Supply Source
The power supply of the E5061B is cut off by disconnecting the plug of the
power cable (on either AC outlet side or E5061B side). When it is necessary to
disconnect the power supply in order to avoid shock hazards, etc., pull out the
power cable plug from either the AC outlet side or the E5061B side
Keysight E5061B Network Analyzer
Power Cable Receptacle
GPIB
IN
OUT
24 BIT I/O
EXT TRIG
Serial Label
REF OUT
Wind ows
Label
ccr.keysight@keysight.com
REF OVEN
ICES/NMB-001
(OPT 1E5)
REF IN
ISM GRP 1-A
C
US
KCC-REM-ATi-
WNANALYZERF36
10 MHz
Line Switch: Always ON ( | )
NOTE
Switch must remain
ON while operating.
LINE
100 - 240 V
50/60 Hz 300 VA Max
