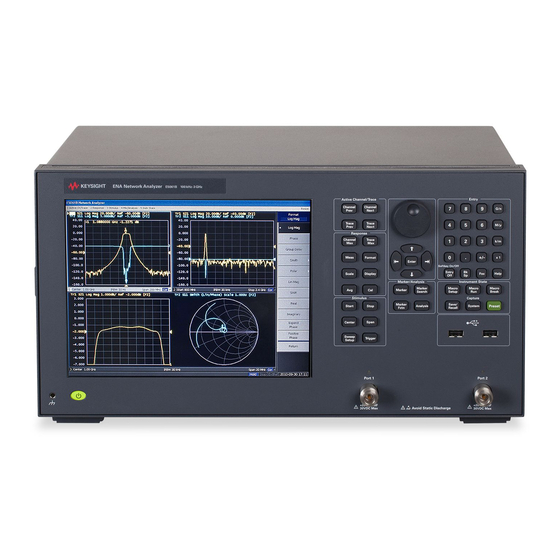

Keysight E5061B
Network Analyzer
Installation Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E5061B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Keysight Technologies E5061B

Summary of Contents for Keysight Technologies E5061B

  • Page 1 Keysight E5061B Network Analyzer Installation Guide...
  • Page 2 FAR and the DFARS agreement and written consent from used or copied only in accordance and are set forth specifically in Keysight Technologies, Inc. as with the terms of such license. writing elsewhere in the EULA. governed by United States and...
  • Page 3 When you notice any of the unusual conditions listed below, immediately terminate operation and disconnect the power cable. Contact your local Keysight Technologies sales representative or authorized service company for repair of the instrument. If you continue to operate without repairing the instrument, there is a potential fire or shock hazard to the operator.
  • Page 4 European Directives, and carries the CE marking accordingly: • The Low Voltage Directive 2006/95/EC • The EMC Directive 2004/108/EEC To obtain Declaration of Conformity, please contact your local Keysight Technologies sales office, agent or distributor. Keysight E5061B Network Analyzer...
  • Page 5 • This equipment is tested in stand-alone condition and in combination with the accessories supplied by Keysight Technologies against the requirement of the standards described in the Declaration of Conformity. If it is used as a system component, compliance of related regulations and safety requirements are to be confirmed by the builder of the system.
  • Page 6 The E5061B complies with INSTALLATION CATEGORY II as well as POLLUTION DEGREE 2 in IEC61010-1. The E5061B is an INDOOR USE product. The LEDs in the E5061B are Class 1 in accordance with IEC60825-1, CLASS 1 LED PRODUCT. • Ground the Instrument To avoid electric shock, the instrument chassis and cabinet must be grounded with the supplied power cable’s grounding prong.
  • Page 7 Warnings, such as the example below, precede potentially dangerous procedures throughout this manual. Instructions contained in the warnings must be followed. Dangerous voltage levels, capable of causing death, are present in this instrument. Use extreme caution when handling, testing, and adjusting this instrument. Keysight E5061B Network Analyzer...
  • Page 8 Alternating current. Direct current. On (Supply). Off (Supply). In-position of push-button switch. Out-position of push-button switch. A chassis terminal; a connection to the instrument’s chassis, which includes all exposed metal structure. Standby. Keysight E5061B Network Analyzer...
  • Page 9 Certification Keysight Technologies certifies that this product met its published specifications at the time of shipment from the factory. Keysight Technologies further certifies that its calibration measurements are traceable to the United States National Institute of Standards and Technology, to the extent allowed by the Institution’s calibration facility or by the calibration facilities of other...
  • Page 10 The online help provides the information about the quick start, measurement operation, programming, built-in VBA, I/O interface This is pre-installed in the E5061B. Press [Help] hard key on the front panel to open. Quick Start helps in understanding the E5061B operation quickly.
  • Page 11 Manuals for E5061B sensitive help, users can receive information quickly about the area the user is working in the firmware of the E5061B. It provides information relevant to the task that needs to be accomplished and reduces the time to search relevant information required to complete a task.
  • Page 12 Caution Manuals for E5061B Keysight E5061B Network Analyzer...

  • Page 13: Table Of Contents

    Initial Registration of E5061B........
  • Page 14 Contents Keysight E5061B Installation Guide...
  • Page 15 Keysight E5061B Network Analyzer Installation Guide Installation This chapter provides information about how to set up the Keysight E5061B.

  • Page 16: Installation

    If an abnormality is detected in step 1, contact the company that transported the analyzer as well as your nearest Keysight Technologies sales and service office. For inspection by the transport company, save the packing box, shock-absorbing material, and packaged items as you received them.

  • Page 17: Environmental Requirements

    Installation Environmental Requirements Environmental Requirements Set up the E5061B where the following environmental requirements are met. Operating Environments Ensure that the operating environment meets the following requirements. Temperature 5°C to 40°C Temperature range at 23°C ± 5°C (<1°C deviation from the temperature when...

  • Page 18: Protection Against Electrostatic Discharge (Esd)

    42 V DC Max 50Ω +26 dBm RF 7 V DC Max e5061b060 Place the E5061B in a proper position as shown in Figure 1-1 Protection Against Electrostatic Discharge (ESD) Set up a static-safe work-station to protect the electronic components from...

  • Page 19: Ensuring Adequate Free Space Around Analyzer For Immediate Disconnection Of Power Cable In Case Of Emergency

    27, the power supply is disconnected by removing the power cable’s connector plug from either the AC outlet or the E5061B unit. When installing the E5061B, ensure that there is sufficient free space around the unit to permit quick disconnection of the plug (from AC outlet or E5061B unit) in case of emergency.

  • Page 20: Installing Front Handles/Rack Mounting Flanges

    Installing Front Handles/Rack Mounting Flanges Installing Front Handles/Rack Mounting Flanges The E5061B can be installed on a workbench or in a rack. This section describes how to install the front handles (Option 1CN) used for moving or transporting the instrument, and how to install the analyzer in an equipment rack as part of a measurement system (Option 1CM: without the handles, Option 1CP: with the handles).

  • Page 21: How To Install The Handle Kit (Option 1Cn)

    Figure 1-3 Installing front handle/rack-mount kits How to Install the Handle Kit (Option 1CN) The handle kit used for transport and relocation of the E5061B. While referring Figure 1-3 install the handle kit by following these steps. Step 1. Remove the adhesive-backed trim strip (1) from each side of the outer frame of the E5061B front panel.

  • Page 22: How To Install The Rack-Mount And Handle Kit (Option 1Cp)

    Step 2. Use the screws provided to mount a rack-mounting flange (4) on each side of the E5061B front panel frame. Step 3. Remove the four bottom feet of the E5061B (lift the bar marked TAB on the inner side of the foot and slide the foot toward the bar).

  • Page 23: Connecting The Accessories

    BNC adaptor e5061b059 Connecting Mouse and Keyboard The E5061B allows you to connect Mouse and/or keyboard through USB. USB mouse and keyboard can be connected with the USB ports on the front or rear panels. Initial registration of the E5061B requires the mouse and keyboard before turning on the power.

  • Page 24: Power Supply

    1. Switched automatically by the E5061B in conformity to the voltage used. Verification and Connection of Power Cable The three-wire power cable attached to the E5061B has one wire serving as a ground. Using this power cable allows the E5061B to be grounded, thereby protecting you against electrical shock from the power outlet.
  • Page 25 Installation Power Supply DO NOT replace the fuse yourself; doing this may expose you to electrical shock. Keysight E5061B Network Analyzer...

  • Page 26: Starting The E5061B

    Normal operation is confirmed by the self-test if no error message appears. Turning the Power OFF Step 1. To turn off the power of the E5061B, first, press this standby switch or send a shutdown command from the external controller to activate the shutdown process (the process of software and hardware necessary to turn off the power supply).

  • Page 27: Disconnection From Supply Source

    Disconnection from Supply Source The power supply of the E5061B is cut off by disconnecting the plug of the power cable (on either AC outlet side or E5061B side). When it is necessary to disconnect the power supply in order to avoid shock hazards, etc., pull out the...
  • Page 28 “Ensuring Adequate Free Space around Analyzer for Immediate Disconnection of Power Cable in Case of Emergency” on page When turning the power OFF under normal circumstances, always follow the methods described in “Turning the Power OFF” on page Keysight E5061B Network Analyzer...

  • Page 29: Initial Registration Of E5061B

    Initial Registration of E5061B Initial Registration of E5061B When you start up the E5061B for the first time, you need to perform the initial registration of the Windows operating system of the E5061B. There are four kind of windows licenses for E5061B:...

  • Page 30: Windows 7/ Windows 10

    Initial Registration of E5061B Windows 7/ Windows 10 Step 1. Turn on the E5061B. Do not touch any key on the front panel during boot up. Step 2. In the Keysight Software End User License Agreement dialog box, select the Agree button.

  • Page 31: Windows Xp Pro For Embedded Systems (Hdd Rev Ky22X And Above)

    Step 4. After a while, the E5061B restarts automatically. Windows XP Pro for Embedded Systems (HDD Rev KY22x and above) Step 1. Turn on the E5061B. Do not touch any key on the front panel during boot up. Step 2. The screen as shown in the Figure 1-8 appears.
  • Page 32 Windows XP Pro for Embedded Systems (for HDD Rev KY22x and above). Figure 1-10 Keysight Software End User License Agreement dialog box Step 5. After a while, the E5061B restarts automatically. Keysight E5061B Network Analyzer...

  • Page 33: Windows Xp Pro For Embedded Systems (Hdd Rev Ky21X And Below)

    Installation Initial Registration of E5061B Windows XP Pro for Embedded Systems (HDD Rev KY21x and below) Step 1-4 Follow the steps of Windows XP Pro for Embedded Systems (HDD Rev KY22x and above). Step 5. In the License agreement dialog box, select the I accept this agreement box and click the Next >...

  • Page 34: Windows Vista Business

    Installation Initial Registration of E5061B Step 7. After a while, the E5061B restarts automatically. Windows Vista Business Step 1. Follow the steps of Windows XP Pro for Embedded Systems (HDD Rev KY22x and above). Step 2. The screen as shown in the Figure 1-13 appears.
  • Page 35 Installation Initial Registration of E5061B Figure 1-14 System start up screen in Windows Vista Business (2/2) Step 4. The Windows XP Professional Setup wizard appears. Click the Next> button (Figure 1-15). Figure 1-15 Windows XP Professional Setup wizard Step 5. In the License agreement dialog box, select the I accept this agreement box and click the Next >...
  • Page 36 Date and Time Setting dialog box Step 7. After a while, the E5061B restarts automatically. The Keysight Recovery Image Setup dialog box appears. Click the OK button. Step 8. Once the recovery image setup is completed, the E5061B restarts again. Keysight E5061B Network Analyzer...

  • Page 37: Calibration Of The Touch Screen

    Installation Calibration of the Touch Screen Calibration of the Touch Screen When E5061B measurement screen appears, you have to calibrate the touch screen. Follow the procedure described below to calibrate the touch screen. Step 1. Press Step 2. Press Service Menu.
  • Page 38 Installation Calibration of the Touch Screen Keysight E5061B Network Analyzer...

  • Page 39: Troubleshooting

    Keysight E5061B Network Analyzer Installation Guide Troubleshooting This chapter describes the troubleshooting process during start up and the procedure of the operating system (OS) recovery when the Windows OS has been damaged. Troubleshooting during Startup When you encounter problems during start up, see Table 2-1.

  • Page 40: System Recovery

    Step 2. Disconnect all of the USB device from the USB ports. Step 3. Connect the keyboard to the E5061B. Step 4. Press the standby switch of the E5061B to turn it on. *. The default setting of the hard disk is recovered during the system recovery. For the hard disk that had failed earlier and had been replaced (after purchase), its default setting may not be the same as the factory state.

  • Page 41: Windows Vista Business

    Step 6. Type 2 to select Recover Factory Backup Image option and press [Enter]. Figure 2-2 System recovery selection screen Step 7. A confirmation message appears. Type 1 and press [Enter] to continue the process. Keysight E5061B Network Analyzer...
  • Page 42 The recovery takes a few minutes depending on the amount of data. Figure 2-4 System recovery confirmation screen (2/2) Step 9. Once the recovery process is completed, completion message prompts. Press any key to continue. The E5061B restarts automatically. Keysight E5061B Network Analyzer...
  • Page 43 Troubleshooting System Recovery Figure 2-5 Recovery Option confirmation dialog box After several seconds, the E5061B restarts automatically even if you do not press any key. Keysight E5061B Network Analyzer...

  • Page 44: Windows Xp Pro For Embedded Systems/Windows 7/Windows 10

    Step 6. Type 2 to select Recover Factory Backup Image option and press [Enter]. Figure 2-7 System Recovery selection screen Step 7. A confirmation message appears. Click OK to continue the process. Figure 2-8 System recovery confirmation screen Keysight E5061B Network Analyzer...
  • Page 45 Step 11. Execute the calibration of the touch screen. For information on the execution procedure, refer to “Calibration of the Touch Screen” on page Never turn off the power during the system recovery because doing so may cause serious damage to the E5061B. Keysight E5061B Network Analyzer...
  • Page 46 Troubleshooting System Recovery Keysight E5061B Network Analyzer...
  • Page 47 Handle Kit System Recovery how to install the handle how to execute the factory recovery how to execute user recovery function , 44, types of system recoveries Initial registration , 23, inspection checking the shipment Keysight E5061B Installation Guide...
  • Page 48 Index Keysight E5061B Installation Guide...
  • Page 49 This information is subject to change without notice. © Keysight Technologies 2000-2017 Edition 1, December 2017 *E5061-90027* E5061-90027 www.keysight.com...
