Storage Island
IMPORTANT NOTE
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damages occurring to the parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure a
completed product as it was designed.

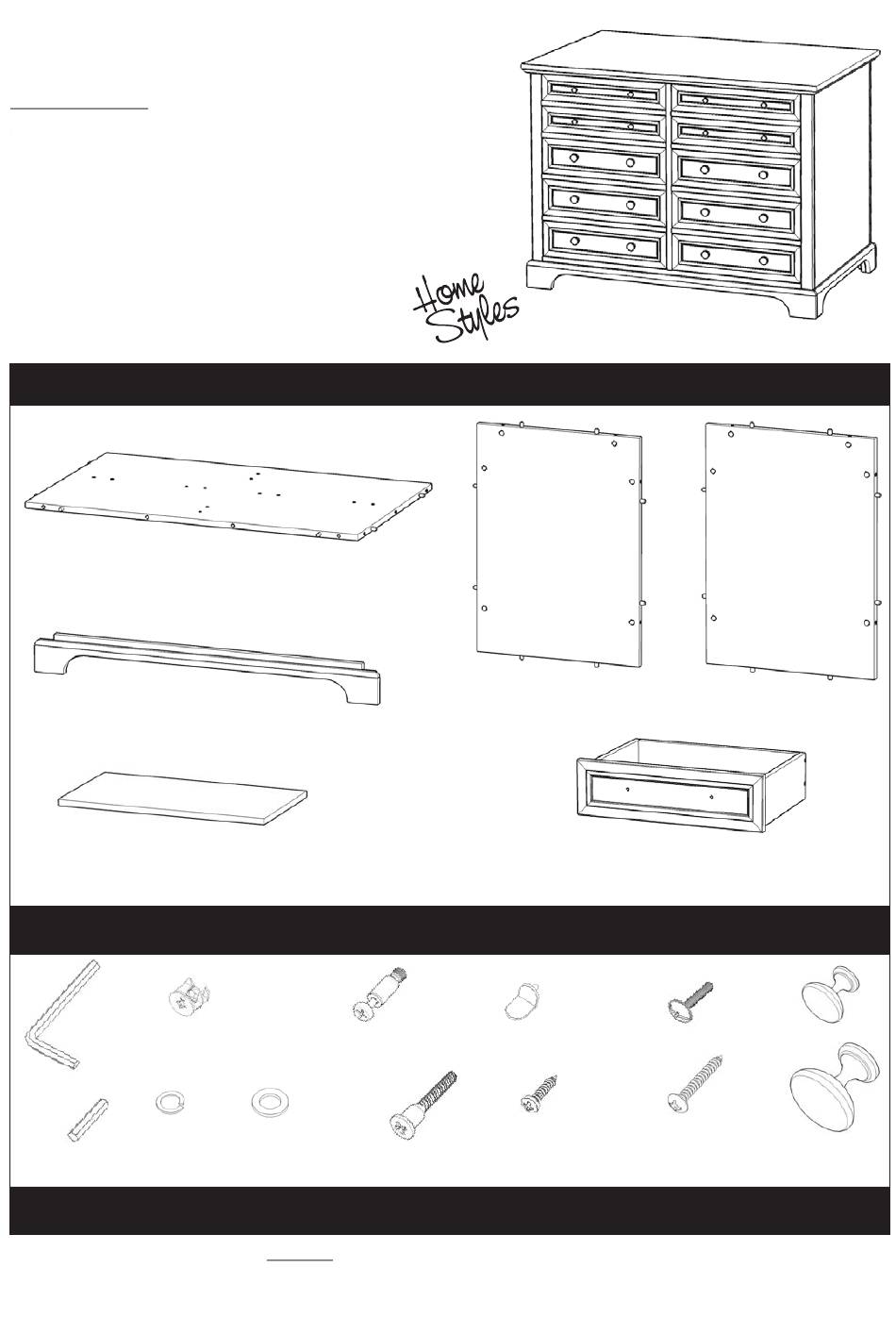

Part List
B.
Bottom
1 pc.
C.
Plinth
2 pcs.
F.
Shelf
6 pcs.
Hardware List
Cam Lock
48 pcs.(+6 extra)
Hex Wrench
1 pc.
Small
Spring Washer
Hex Wrench
6 pcs. (+1 extra)
1 pc.
For assembly see instructions in carton 88 5531 941, 88 5531 943
Tools required for assembly: Phillips screwdriver
Home Styles Consumer Assistance Line 888-680-7460 and 877-831-0319
Cam Lock Screw
48 pcs.(+1 extra)
M6x35
Flat Washer
Bolt
6 pcs. (+1 extra)
6 pcs. (+1 extra)
servicedesk@homestyles-furniture.com
D.
Back Panel
1 pc.
G.
Drawer
(Knock-Down Construction, please refer to
6 pcs.
the last pageof instructions for steps to
M4x20
Adjustable Pin
Machine Screw
24 pcs. (+1 extra)
20 pcs.
M3.5x16
M3.5x25
Wood Screw (short)
Wood Screw (long)
for Drawer Base Part
for Drawer Side Part
30 pcs. (+1 extra)
40 pcs. (+1 extra)
Tools recommended for assembly: Level
E.
Back Panel
1 pc.
complete drawer assembly)
Knob
for Drawer N
8 pcs.
Knob
for Drawer G
12 pcs.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Home Styles 88 5531 942
Summary of Contents for Home Styles 88 5531 942
- Page 1 40 pcs. (+1 extra) 12 pcs. 1 pc. For assembly see instructions in carton 88 5531 941, 88 5531 943 Tools required for assembly: Phillips screwdriver Tools recommended for assembly: Level Home Styles Consumer Assistance Line 888-680-7460 and 877-831-0319 servicedesk@homestyles-furniture.com...
- Page 2 Assembly Instructions 2/8 IMPORTANT * Do not tighten up all the screws until each part is properly assembled. * Y ou should keep Hex Wrench in a safe place as you may need to tighten up the Head Cap Bolts in the future. * After assembly , item must be level to work properly.
- Page 3 Assembly Instructions 3/8 STEP 2 Attach Bottom (B) to Side Panel (H) using Cam Locks. (see Figure 2) Cam Lock Figure 2 Figure 3 Figure 3 STEP 3 Attach Back Panel (D) to unit with Cam Locks, Flat Washers, Spring Washers and Bolts. (see Figure 3) Cam Lock Bolt...
- Page 4 Assembly Instructions 4/8 STEP 4 Attach Front Rails (K) to unit using Cam Locks. Attach Middle Panel (J) to unit with Cam Locks, Flat Washers, Spring Washers and Bolts. Bolt Spring Washer Flat Washer Cam Lock Bolt Spring Washer Flat Washer Cam Lock STEP 5 Attach Front Rails (L) to unit...
- Page 5 Assembly Instructions 5/8 STEP 6 Attach Side Panel (I) to unit with Cam Locks. Cam Lock Cam Lock STEP 7 Attach Plinths (C) to unit with Cam Locks. Attach Leg Support (M) to unit.
- Page 6 Assembly Instructions 6/8 STEP 8 Attach Top (A) to unit with Cam Locks. Cam Lock STEP 9 Insert Adjustable Pins into side panels and middle panel at desired level, then place shelves (F) into position. Adjustable Pin STEP 10 Figure 4 Slide Drawers (N) and (G) into position.
-
Page 7: Part List
Assembly Instructions 7/8 Drawer G (Figure 1) STEP 2 STEP1 Slide G5 into the grooves in G3 Attach G1 to G3 and G4, using and G4. Be sure to push G5 all MAKE SURE ROLLER Phillips screwdriver IS ON THE BACK the way forward so it meets G1. - Page 8 Assembly Instructions 8/8 Drawer N (Figure 1) STEP 2 STEP1 Slide N5 into the grooves in N3 Attach N1 to N3 and N4, using and N4. Be sure to push N5 all MAKE SURE ROLLER Phillips screwdriver IS ON THE BACK the way forward so it meets N1.
