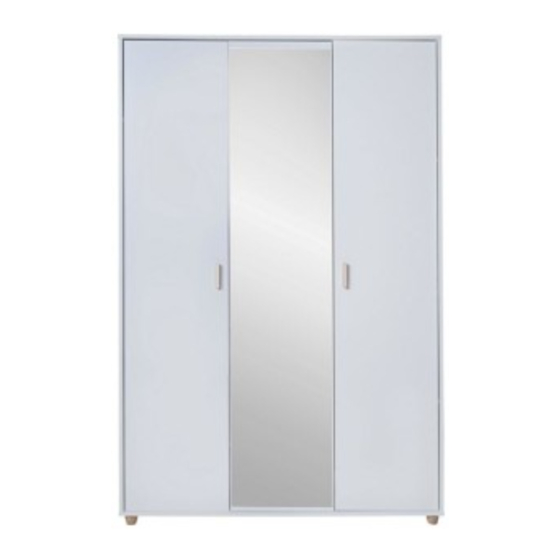

Arvika - 3 Door Mirror Robe
Assembly Instructions -
Dimensions
Width - 123cm
Depth - 49.5cm
Height - 186.5cm
Important -
Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Please keep for future reference
335/9789
346/6531
MADE IN
BRITAIN
Issue 2 - 16/12/14
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Argos Arvika 335/9789
Summary of Contents for Argos Arvika 335/9789
- Page 1 Arvika - 3 Door Mirror Robe Assembly Instructions - 335/9789 Please keep for future reference 346/6531 Dimensions Width - 123cm Depth - 49.5cm MADE IN Height - 186.5cm BRITAIN Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 Issue 2 - 16/12/14...
-
Page 2: Care And Maintenance
Safety and Care Advice Important - Please read these instructions fully before starting assembly • Warning: This unit weighs • Make sure you have enough • We do not approximately 83.5kgs. space to layout the parts before recommend the Please lift with care. starting. - Page 3 If you have damaged or missing components, call the Components - Panels Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the panels listed on pages 1 and 2 Shelf (DF1894) Horizontal Hanging Rail (DF1420) (FHR791) (382 x 463mm) (797 x 464mm)
- Page 4 If you have damaged or missing components, call the Components - Fittings Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
- Page 5 If you have damaged or missing components, call the Assembly Instructions Customer Helpline: 08456 400800 quoting the reference numbers below Step 1 Prepare the divider Screw 2 metal dowels into the divider Tap 4 wooden dowels into the divider To fit the rail holder screw through the top hole with screw into the mark hole drilled...
- Page 6 Assembly Instructions Step 3 Fit the horizontal to the divider Push the horizontal onto the divider Use a screwdriver to tighten the 2 large locking nuts fitted to Finished the horizontal front edge Finished front edge Note: Turn the large locking nuts as far as they will go - more than...
- Page 7 Assembly Instructions Step 5 Fit the left side Push the left side onto the horizontal Use a screwdriver to tighten the 2 large locking nuts fitted to the horizontal Finished front edge Step 6 Note: The top panel has been finished on both surfaces. The base panel only has 1 finished suface.
- Page 8 Assembly Instructions Step 7 Prepare the right side Tap 4 wooden dowels into the right side Fit 3 hinge plates onto the right side , making sure that the slot is facing towards the finished front edge. Finished front edge Step 8 Fit the right side Attach the right side...
- Page 9 Assembly Instructions Step 9 Fit the base Attach the base the left side , right side and upright using 6 screws p l a c h i s u r f a c Finished front edge Step 10 Fit the feet Attach the 5 feet the base using 5...
- Page 10 Assembly Instructions Step 11 The measurement from top corner X to bottom corner X must be equal to the measurement from top corner Y to bottom corner Y Fit the back panels Square up the unit by making sure that measurement x:x equals y:y.
- Page 11 Assembly Instructions Step 12 Fit the shelves For each of the 3 shelves , insert 4 shelf studs Lower the 3 shelves down onto the shelf studs Step 13 Fit the hanging rail Push the hanging rail into the rail holders...
- Page 12 Assembly Instructions Step 14 Prepare the left and right doors Push fit 3 hinges into the left door and the right door Secure each hinge with 2 screws Note: Before securing with the screws, make sure that the hinges are positioned at 90 degrees with the edge of the door.
- Page 13 Assembly Instructions Step 16 Fit doors and handles Note: The easiest way to attach each door is to fit the top hinge first, then align and fit the other hinges. Push the hinge onto the front part of the hinge plate The recess at the bottom of screw B goes into the slot in the hinge plate.
- Page 14 Assembly Instructions Step 17 Adjust the doors if needed Before adjusting the doors, use a spirit level to check the base (or top) of the unit is level, front-to-back and side-to-side in the 3 positions shown. Use suitable packing pieces (not supplied) to make the unit level BEFORE making any adjustment to the hinges,...
- Page 15 Assembly Instructions Step 18 Fit the overbalance protector Screw To prevent possible Washer Wall fixing Strap overbalancing we (not supplied) Strap recommend that this unit Washer is secured to a suitable wall by use of the Screw overbalance protector kit (not supplied) fitted to the unit or, an alternative fixing method...
- Page 16 KEEP THESE INSTRUCTIONS FOR FUTURE USE If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 and quote the reference numbers on the component pages. Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW ALR3116...
