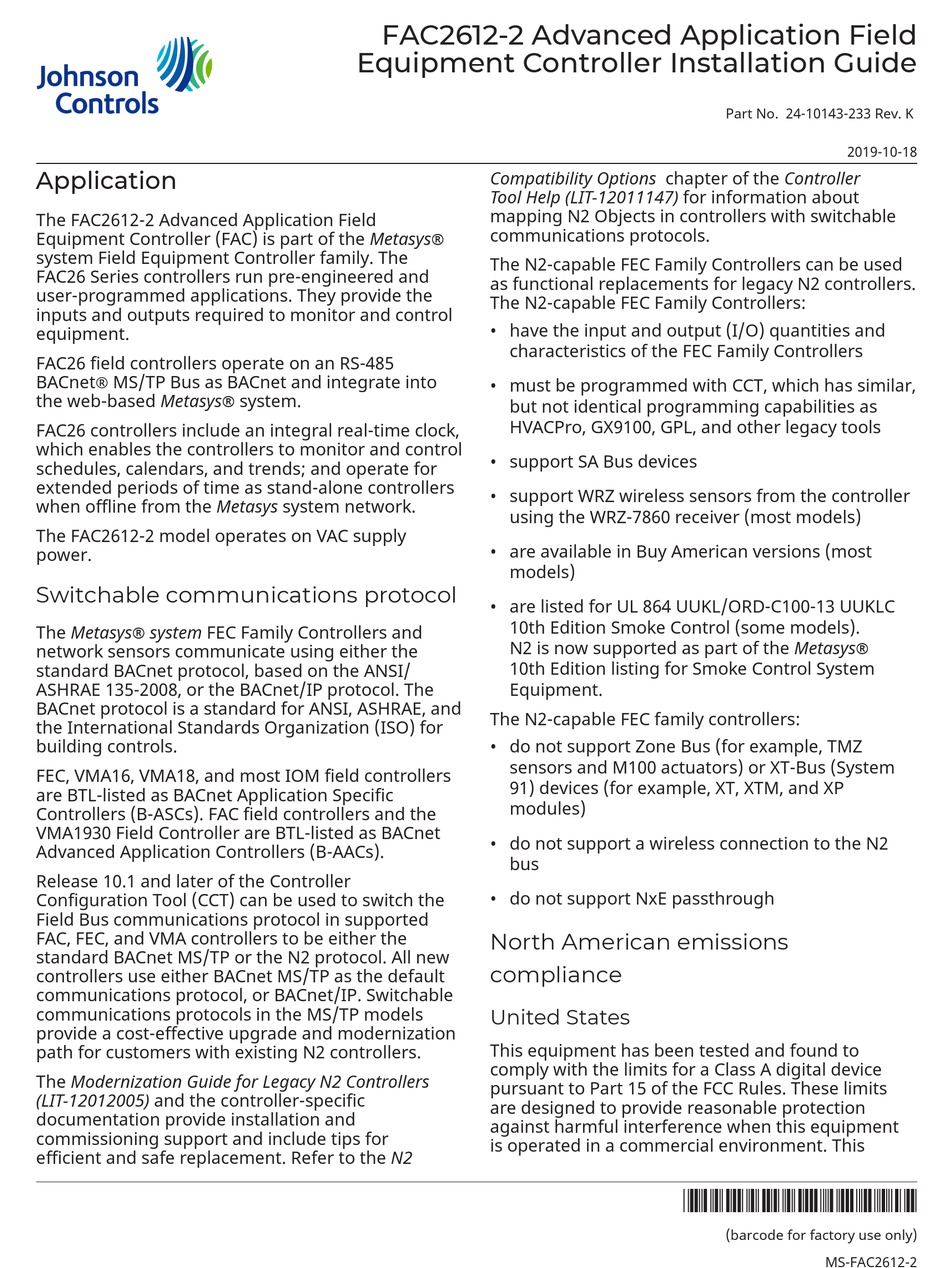

Johnson Controls FAC2612-2 Installation Manual
Johnson Controls FAC2612-2 Installation Manual

Johnson Controls FAC2612-2 Installation Manual

Advanced application field equipment controller

Advertisement

Quick Links

Application
The FAC2612-2 Advanced Application Field
Equipment Controller (FAC) is part of the Metasys
system Field Equipment Controller family. The
FAC26 Series controllers run pre-engineered and
user-programmed applications. They provide the
inputs and outputs required to monitor and control
equipment.
FAC26 field controllers operate on an RS-485
BACnet
MS/TP Bus as BACnet and integrate into
®
the web-based Metasys
FAC26 controllers include an integral real-time clock,
which enables the controllers to monitor and control
schedules, calendars, and trends; and operate for
extended periods of time as stand-alone controllers
when offline from the Metasys system network.
The FAC2612-2 model operates on VAC supply
power.
Switchable communications protocol
The Metasys
system FEC Family Controllers and
®
network sensors communicate using either the
standard BACnet protocol, based on the ANSI/
ASHRAE 135-2008, or the BACnet/IP protocol. The
BACnet protocol is a standard for ANSI, ASHRAE, and
the International Standards Organization (ISO) for
building controls.
FEC, VMA16, VMA18, and most IOM field controllers
are BTL-listed as BACnet Application Specific
Controllers (B-ASCs). FAC field controllers and the
VMA1930 Field Controller are BTL-listed as BACnet
Advanced Application Controllers (B-AACs).
Release 10.1 and later of the Controller
Configuration Tool (CCT) can be used to switch the
Field Bus communications protocol in supported
FAC, FEC, and VMA controllers to be either the
standard BACnet MS/TP or the N2 protocol. All new
controllers use either BACnet MS/TP as the default
communications protocol, or BACnet/IP. Switchable
communications protocols in the MS/TP models
provide a cost-effective upgrade and modernization
path for customers with existing N2 controllers.
The Modernization Guide for Legacy N2 Controllers
(LIT-12012005) and the controller-specific
documentation provide installation and
commissioning support and include tips for
efficient and safe replacement. Refer to the N2
FAC2612-2 Advanced Application Field
Equipment Controller Installation Guide
system.
®
Compatibility Options chapter of the Controller
Tool Help (LIT-12011147) for information about
mapping N2 Objects in controllers with switchable
communications protocols.
®
The N2-capable FEC Family Controllers can be used
as functional replacements for legacy N2 controllers.
The N2-capable FEC Family Controllers:
• have the input and output (I/O) quantities and
characteristics of the FEC Family Controllers
• must be programmed with CCT, which has similar,
but not identical programming capabilities as
HVACPro, GX9100, GPL, and other legacy tools
• support SA Bus devices
• support WRZ wireless sensors from the controller
using the WRZ-7860 receiver (most models)
• are available in Buy American versions (most
models)
• are listed for UL 864 UUKL/ORD-C100-13 UUKLC
10th Edition Smoke Control (some models).
N2 is now supported as part of the Metasys
10th Edition listing for Smoke Control System
Equipment.
The N2-capable FEC family controllers:
• do not support Zone Bus (for example, TMZ
sensors and M100 actuators) or XT-Bus (System
91) devices (for example, XT, XTM, and XP
modules)
• do not support a wireless connection to the N2
bus
• do not support NxE passthrough
North American emissions
compliance
United States
This equipment has been tested and found to
comply with the limits for a Class A digital device
pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference when this equipment
is operated in a commercial environment. This
Part No. 24-10143-233 Rev. K
2019-10-18
®
*2410143233K*
(barcode for factory use only)
MS-FAC2612-2

Advertisement

Table of Contents
loading

Summary of Contents for Johnson Controls FAC2612-2

  • Page 1 • support WRZ wireless sensors from the controller when offline from the Metasys system network. using the WRZ-7860 receiver (most models) The FAC2612-2 model operates on VAC supply • are available in Buy American versions (most power. models) Switchable communications protocol •...
  • Page 2: Installation

    • One 20 cm (8 in.) or longer piece of 35 mm DIN rail and appropriate hardware for DIN rail mount (only) • Small straight-blade screwdriver for securing wires in the terminal blocks FAC2612-2 Advanced Application Field Equipment Controller Installation Guide...
  • Page 3 • Mount the controller on a hard, even surface that are defined as Current Analog Input (4–20 mA) in the whenever possible in wall-mount applications. system software. See Table 7. End-of-Line (EOL) Switch. See Setting the End-of-Line (EOL) switch. FAC2612-2 Advanced Application Field Equipment Controller Installation Guide...
  • Page 4: Wall-Mount Applications

    Overtightening the screws may damage the mounting clips. Mounting the controller horizontal on 35 mm DIN rail is the preferred mounting method. To mount a controller on 35 mm DIN rail, complete the following steps: FAC2612-2 Advanced Application Field Equipment Controller Installation Guide...
  • Page 5: Mounting Features And Dimensions

    FAC2612-2 physical featuresfor terminal block Mise En Garde: Risque de décharge électrique and bus port locations on the FAC2612-2 controller. Débrancher l'alimentation avant de réaliser tout rac- Observe the following guidelines when wiring a cordement électrique afin d'éviter tout risque de controller: décharge électrique.
  • Page 6 SA bus devices in a daisy- Bus, and FC Bus Ports on Controllers chain configuration using 4-wire twisted, shielded cable as shown in Figure 5 for more information. FAC2612-2 Advanced Application Field Equipment Controller Installation Guide...
  • Page 7: Supply Power Terminal Block

    • All input and output cables, regardless of wire ground loop problems. The controller does not size or number of wires, should consist of require an earth ground connection. stranded, insulated, and twisted copper wires. FAC2612-2 Advanced Application Field Equipment Controller Installation Guide...
  • Page 8 • Inputs or outputs with cables less than 30 m (100 ft) typically do not require an offset in the software setup. Cable runs over 30 m (100 ft) may require an offset in the input/output software setup. FAC2612-2 Advanced Application Field Equipment Controller Installation Guide...
  • Page 9 Note: All Binary ICOMn terminals share a common, ICOMn which is isolated from all other commons, except the Configurable Output (CO) common (OCOMn) when the CO is defined as an Analog Output. FAC2612-2 Advanced Application Field Equipment Controller Installation Guide...
  • Page 10: Cable And Wire Length Guidelines

    The following table defines cable length guidelines voltage (less than 30 V) input and outputs. for the various wire sizes that may be used for wiring low-voltage (<30 V) input and outputs FAC2612-2 Advanced Application Field Equipment Controller Installation Guide...
  • Page 11: Maximum Cable Length Versus Load Current

    Inputs and Outputs by current and wire size information regarding wire size and cable length requirements for the SA and FC buses. Communications bus and supply power terminal blocks, functions, ratings, requirements, and cables FAC2612-2 Advanced Application Field Equipment Controller Installation Guide...
  • Page 12: Termination Diagrams

    38.4k baud. For more information, refer to the MS/TP Communications Bus Technical Bulletin (LIT-12011034) Termination diagrams A set of Johnson Controls termination diagrams provides details for wiring inputs and outputs to the FAC2612-2 Advanced Application Field Equipment Controller Installation Guide...
  • Page 13 Type of Input/Output Termination diagrams Temperature Sensor Voltage Input - External Source Voltage Input - Internal Source Voltage Input (Self-Powered) UI Current Input - External Source (Isolated) Current Input - Internal Source (2-wire) FAC2612-2 Advanced Application Field Equipment Controller Installation Guide...
  • Page 14 Source (in Loop) Feedback from EPP-1000 Dry Contact (Binary Input) UI or BI 0–10 VDC Output to Actuator CO or AO (External Source) 0–10 VDC Output to Actuator CO or AO (Internal Source) FAC2612-2 Advanced Application Field Equipment Controller Installation Guide...
  • Page 15 CO or AO High, Externally Sourced) Incremental Control to Actuator (Switch High, CO or AO Externally Sourced) 24 VAC Binary Output (Switch Low, Externally Sourced) 24 VAC Binary Output (Switch High, Externally Sourced) FAC2612-2 Advanced Application Field Equipment Controller Installation Guide...
  • Page 16: Setup And Adjustments

    Refer to the MS/TP Communications Bus Technical Bul- letin (LIT-12011034) for more information on con- troller device addresses and how to set them on MS/TP buses. FAC2612-2 Advanced Application Field Equipment Controller Installation Guide...
  • Page 17: Setting The N2 Controller Address To Be Greater Than 127

    Disconnect the 24 VAC supply from the termination rules and EOL switch settings on controller. FC buses, refer to the MS/TP Communications Bus Technical Bulletin (LIT-12011034). Remove the FC Bus connector from the controller. FAC2612-2 Advanced Application Field Equipment Controller Installation Guide...
  • Page 18: Setting Up A Local Display

    DIS1710 Local Controller Display Important: Current Loop switches must be Technical Bulletin (LIT-12011270). in the DISABLED (off/down) position for all UIs that are not set up to operate as 4–20 mA analog inputs. FAC2612-2 Advanced Application Field Equipment Controller Installation Guide...
  • Page 19: Led Status And States

    Off Steady = EOL switch in Off position devices) Repair information If a controller fails to operate within its specifications, replace the controller. For a replacement controller, contact your Johnson Controls representative. FAC2612-2 Advanced Application Field Equipment Controller Installation Guide...
  • Page 20 Terminal Block Kit - FAC 4-Position Configurable Output - 6 Pieces MS-TBKUI04-0 Terminal Block Kit - FAC 4-Position Universal Input - 9 Pieces MS-TBKUI05-0 Terminal Block Kit - FAC 5-Position Universal Input - 3 Pieces FAC2612-2 Advanced Application Field Equipment Controller Installation Guide...
  • Page 21: Technical Specifications

    Compliance Industry Canada Compliant, ICES-003 Europe: Johnson Controls declares that this product is also in compliance with the essential requirements and other relevant provisions of the EMC Directive and Low Voltage Directive (LVD). Declared as Free Standing Operating Control Type 1.B 2,500 V rated impulse voltage.
  • Page 22: Product Warranty

    DISTRICT WUXI JIANGSU PROVINCE 214028 CHINA For more contact information, refer to www.johnsoncontrols.com/locations. © 2019 Johnson Controls. All rights reserved. All specifications and other information shown were current as of document revision and are subject to change without notice. www.johnsoncontrols.com...
