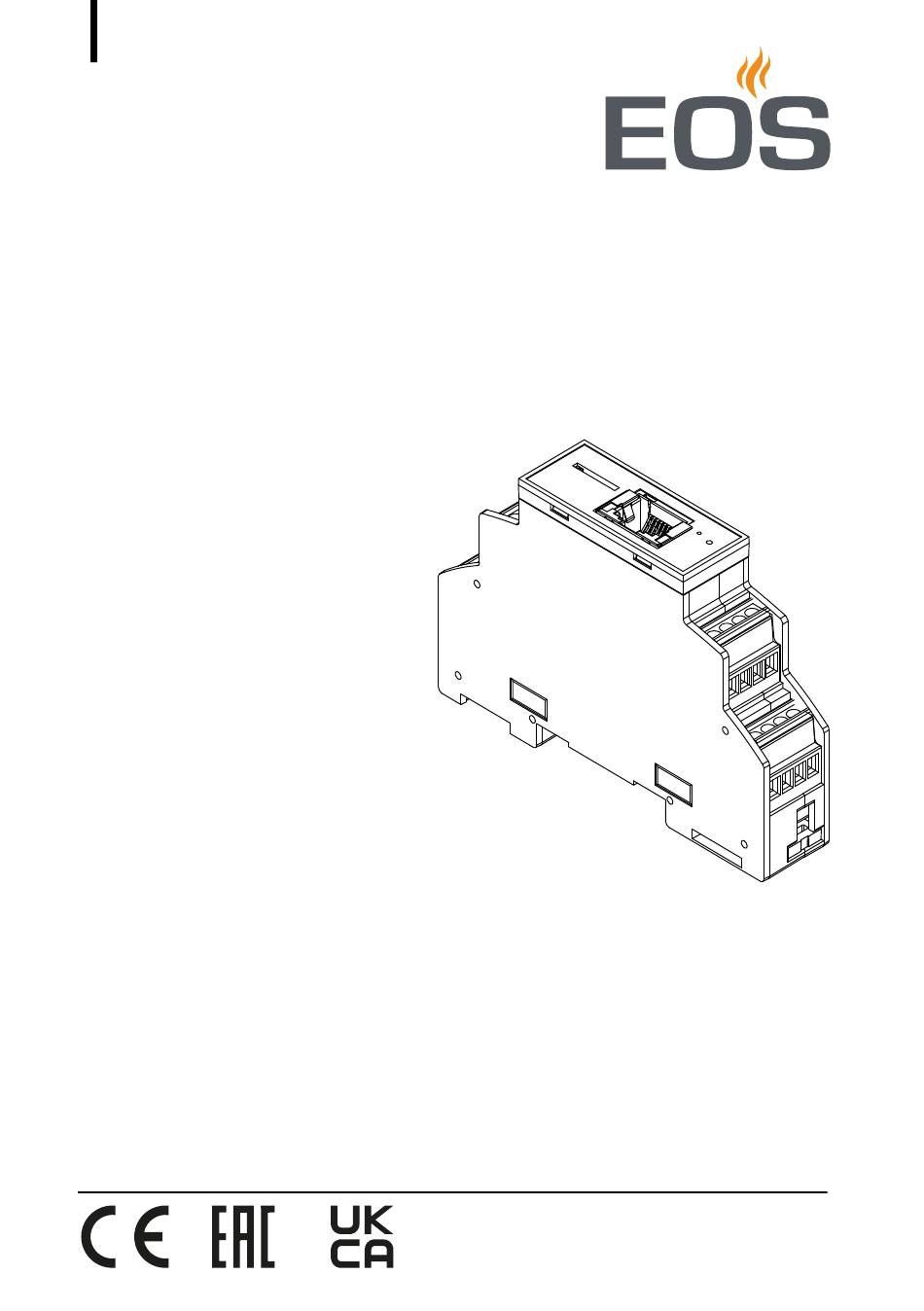

- Page 1 SBM-App Modul Module for EOS Spa Control app Installation and Operating Instructions Made in Germany Druck-Nr.: 2902 5272 Stand: 08/22...
-
Page 2: Documentation
Additional information about an operating step Cross-reference to a page Read instructions Result of a step Table title Title of figure Revision history Date Version Description 20 Dec. 2021 01.00 First version EN-2 Installation and Operating Instructions - SBM-App Modul... -
Page 3: Table Of Contents
Operating the infrared cabin ............EN-24 Operating the Roman bath..............EN-25 Changing the settings ................. EN-26 Cabins ......................EN-27 4.9.1 Adding a cabin ............... EN-27 4.9.2 Disconnecting the cabin............. EN-27 4.9.3 Selecting the cabin ............... EN-27 SBM-App Modul - Installation and Operating Instructions EN-3... - Page 4 4.10 Profiles .......................EN-28 4.10.1 Adding a profile..............EN-28 4.10.2 Selecting a profile..............EN-29 4.11 Troubleshooting..................EN-30 5 General terms and conditions of service ..........EN-31 6 Disposal.......................EN-34 EN-4 Installation and Operating Instructions - SBM-App Modul...
-
Page 5: General Safety Instructions
Similarly, excessive cold and extreme exposure to sunlight must be prevented. Protect the unit accordingly if there is an increased risk of me- chanical damage. SBM-App Modul - Installation and Operating Instructions EN-5... -
Page 6: Operator Instruction
If you switch on the heater using pre-set timers or a remote con- trol, attach a protective cover to the heater or install a suitable safety system (e.g. rocker switches, EOSafe). EN-6 Installation and Operating Instructions - SBM-App Modul... - Page 7 Operation of a sauna/infrared cabin or steam room must not be started by persons with reduced mental capacity or limited physical or sensory abilities unless they are supervised or unless they have already been instructed in its use and understand the risks. SBM-App Modul - Installation and Operating Instructions EN-7...
-
Page 8: Safety Levels
For an overview of the standards that were observed during design and construction of the sauna heaters, please refer to the individual product's technical data sheet that can be downloaded from www.eos-sauna.com. EN-8 Installation and Operating Instructions - SBM-App Modul... -
Page 9: Identification

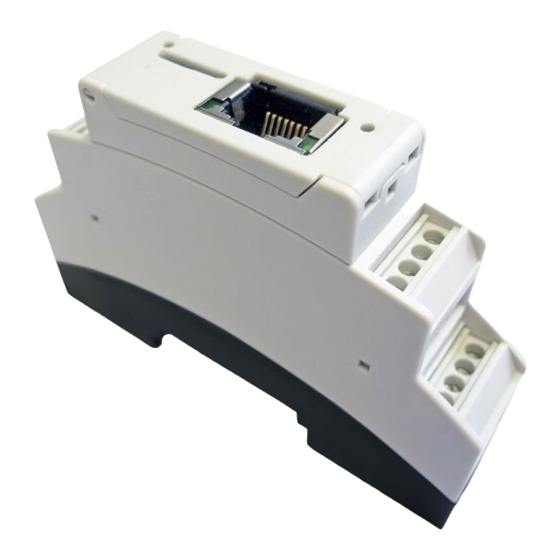

Identification Identification The SBM-App module is used in conjunction with the EOS Spa Control App for the remote control of selected functions in sauna cabins, IR cabins and steam rooms. Overview A Housing C Pairing LED B Ethernet port D Pairing button ... -
Page 10: Unit Specifications
Identification Unit specifications Nameplate The nameplate is attached to the side of the SBM-App module. SBM App Modul EOS Saunatechnik GmbH Schneiderstriesch 1 D-35759 Driedorf HWID: FFFF2D00FFFFFFFF9448454E2000158001 A Manufacturer E Product name B Hardware ID F Manufacturer address C MAC address... - Page 11 Identification Requirements for operation and storage The SBM-App module must only be mounted outside of sauna cabins, IR cabins and steam rooms. The installation location must meet the following environmental conditions: Ambient temperature during operation -10°C to 40°C Storage temperature: -20°C to 60°C ...
-
Page 12: Intended Use
Identification Intended use The SBM-App module serves as an extension to the control units of the EmoTec, EmoStyle, InfraStyle and EmoTouch 3 series in connection with the EOS Spa Control App for remote control of selected functions in sauna cabins, infrared cabins and steam rooms. -
Page 13: Technical Data
(firmware R4.00 or higher), EmoTouch 3 series (firmware R2.33 or higher) Connections 1 x EOS sauna bus (RJ12 plug 6P6C) 1 x 10/100 BaseT Ethernet RJ45 socket, shielded Power supply 24 V DC via EOS sauna bus cable Module energy <... -
Page 14: Mounting And Electrical Installation
Mounting and electrical installation Mounting and electrical installation This chapter describes how to install and set up the SBM-App module. NOTICE Damage due to incorrect mounting location Weather conditions lead to the formation of condensation in the housing of the SBM-App module and destroy the lines and circuit boards. -
Page 15: Mounting The Sbm-App Module
Relay box Internet access point (router/DSL modem) The SBM-App module is designed to be mounted on a profile rail and can be mounted either next to the relay box (recommended) or next to the internet access point (router/DSL modem). - Page 16 Ensure that the firewall is not blocking the internet connection (port 7250 must be available). Download the EOS Spa Control app from the App Store (iOS) or Play Sto- re (Android) and install it on your mobile device.
- Page 17 Mounting and electrical installation Enter the SBM-App module’s individual MAC address. It can be found on the SBM-App module’s nameplate. See Nameplate, EN-10 Choose Start pairing ». Have the pointed object (e.g. paper clip) ready. SBM-App Modul - Installation and Operating Instructions...
- Page 18 Mounting and electrical installation Within 60 seconds, press and hold the pairing button on the SBM-App module with a pointed object for approx. 2 seconds. The time remaining is displayed in the app. If pairing does not occur within 60 seconds, the MAC address entry screen reappears and pai- ring can be repeated.
- Page 19 Mounting and electrical installation Choose Next ». Enter a sauna name. Additional cabins can be entered later. Choose Start control » to complete installation. SBM-App Modul - Installation and Operating Instructions EN-19...
-
Page 20: Operation
(factory setting: 30 minutes). Once the duration of the drying program has elapsed, the cabin is switched off. To switch off the drying program prematurely: Confirm the prompt. EN-20 Installation and Operating Instructions - SBM-App Modul... -
Page 21: Operating The Sauna In Bi-O Mode
M Switch potential-free contact on/off F Selected profile N End heating process G Settings O Decrease humidity H Bench temperature (if equipped) P Screen page view Operating the sauna in Bi-O mode SBM-App Modul - Installation and Operating Instructions EN-21... -
Page 22: Operating The Sauna In Finnish Mode
J Switch lighting on/off D Increase temperature K Switch potential-free contact on/off E Decrease temperature L End heating process F Selected profile M Screen page view G Settings Operating the sauna in Finnish mode EN-22 Installation and Operating Instructions - SBM-App Modul... -
Page 23: Operating The Steam Room
A Overview of cabins F Settings B Cabin name G Switch lighting on/off C Temperature H Switch potential-free contact on/off D Increase temperature End heating process E Decrease temperature Operating the steam room SBM-App Modul - Installation and Operating Instructions EN-23... -
Page 24: Operating The Infrared Cabin
A Overview of cabins F Settings B Cabin name G Switch lighting on/off C Temperature H End heating process D Increase temperature Screen page view E Decrease temperature Operating the infrared cabin EN-24 Installation and Operating Instructions - SBM-App Modul... -
Page 25: Operating The Roman Bath
Operating the Roman bath A Overview of cabins Switch potential-free contact on/off B Cabin name End heating process C Time remaining G Settings D Switch lighting on/off Operating the Roman bath SBM-App Modul - Installation and Operating Instructions EN-25... -
Page 26: Changing The Settings
F Data privacy notice B Edit profile G Legal notice C SBM-App module MAC address H Disconnect cabin D SBM-App module firmware version Close settings E App version Changing the settings EN-26 Installation and Operating Instructions - SBM-App Modul... -
Page 27: Cabins
Operation Cabins 4.9.1 Adding a cabin You can add up to eight cabins in the EOS Spa Control app. Each cabin requires its own SBM-App module. Choose Select Add cabin ». Note for EmoTouch 3 systems with multi-cabin control: Cabins that use address 2 or above require their own SBM-App module with the cabin ID programmed accordingly. -
Page 28: Profiles
Choose Select the desired profile from the Profiles menu. Enter a profile name. Select an icon. Switch vaporiser on/off: Set temperature: Set humidity: Select Save. EN-28 Installation and Operating Instructions - SBM-App Modul... -
Page 29: 4.10.2 Selecting A Profile
Operation 4.10.2 Selecting a profile On the home screen, scroll to Profiles Select the desired profile. SBM-App Modul - Installation and Operating Instructions EN-29... -
Page 30: Troubleshooting
Please try again later. Possible cause: The relay box is switched off. The SBM-App module is not connected to the internet. The mobile device is not connected to the internet. Action: Switch on the relay box. -
Page 31: General Terms And Conditions Of Service
The customer shall provide assistance free of charge to the manufacturer in rendering services. In the case of a warranty claim, the manufacturer shall provide spare parts necessary for servicing free of charge. SBM-App Modul - Installation and Operating Instructions EN-31... - Page 32 We wish to point out that our packaging is not suitable for individual ship- ments via parcel post. The manufacturer shall accept no liability for dama- ges incurred as a result of improper packaging in an individual shipment. EN-32 Installation and Operating Instructions - SBM-App Modul...
- Page 33 The manufacturer's General Terms and Conditions of Business, in the ver- sion available at www.eos-sauna.com/agb, shall apply in addition to the foregoing terms and conditions of service. SBM-App Modul - Installation and Operating Instructions...
-
Page 34: Disposal
Do not dispose of the unit with household waste. Packaging The packaging of the SBM-App module can be completely separated for disposal and recycled. The following materials are used in the packaging: Used paper, cardboard ... - Page 35 SBM-App Modul - Installation and Operating Instructions EN-35...
- Page 36 Store this address with the installation instructions in a safe place. Please always provide us with nameplate data, such as model, item num- ber and serial number so we can provide fast and efficient support. Date of sale Stamp/retailer signature: © EOS Saunatechnik GmbH - All rights reserved.
