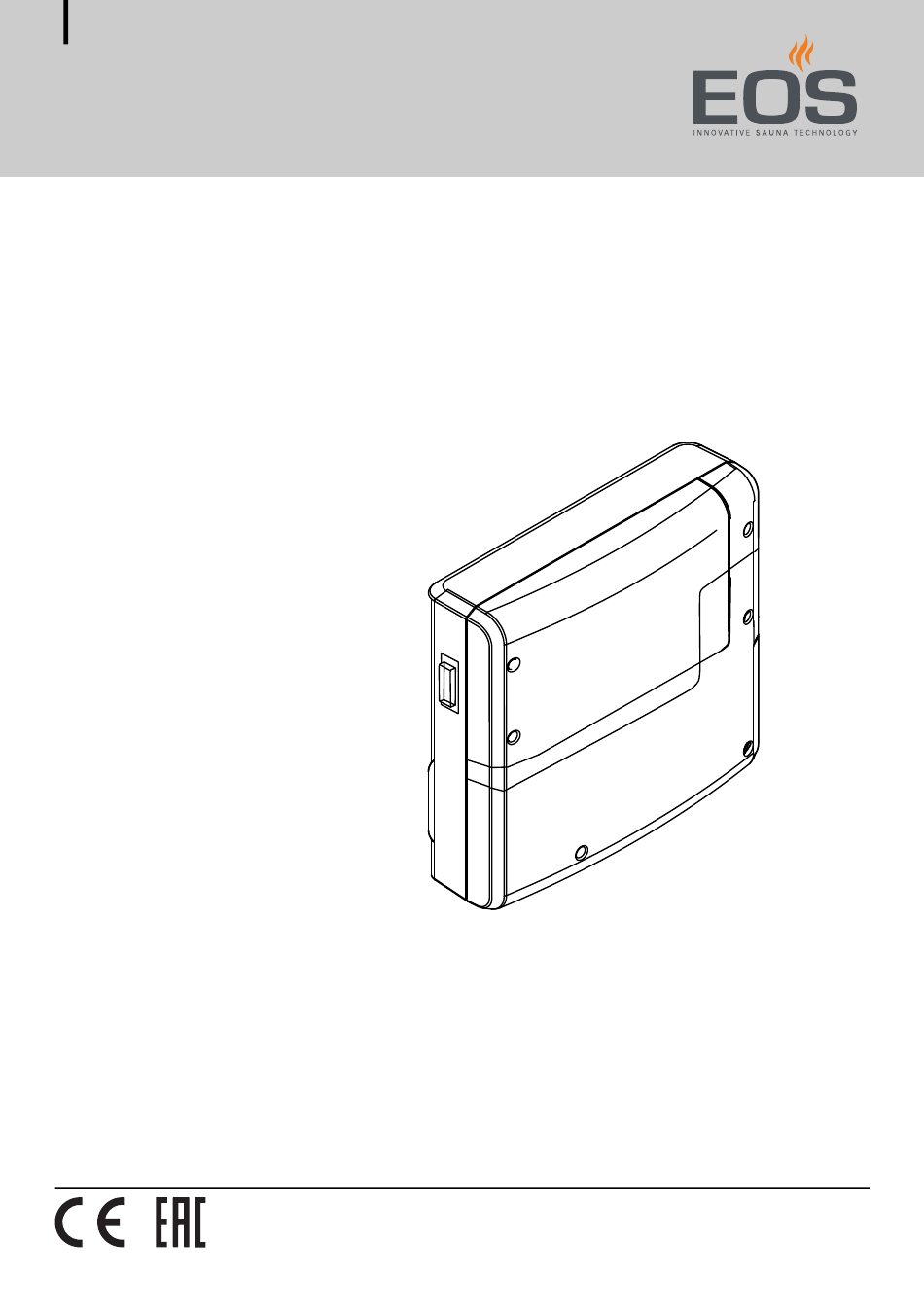

- Page 1 SBM-IR Modul Module for Infrared and Sauna Cabins Operating Instructions Made in Germany Druck-Nr.: 2902 5028 Stand: 01/2019...
-
Page 2: Documentation
+49 2775 82-431 www.eos-sauna.com Original installation and operating instructions EN Copyright for these operating instructions remains with EOS Saunatechnik GmbH. Copyright as per DIN ISO 16016: The copying and distribution of this document, as well as the use and com- munication of its contents without express authorization, are not permit- ted. -
Page 3: Table Of Contents
3.4.3 IR operating mode ...............29 3.4.4 Setting the IR temperature............30 3.4.5 Setting the IR intensity..............31 3.4.6 Switching hysteresis for the IR temperature.......32 Troubleshooting ...................35 4 General terms and conditions of service ...........36 5 Disposal ........................39 SBM-IR Modul - Operating Instructions... -
Page 4: General Safety Instructions
CAUTION Caution Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury. NOTICE Notice Indicates a hazardous situation which, if not avoided, will result in damage to the unit. Operating Instructions - SBM-IR Modul... -
Page 5: Assembly And Installation
60335-2-53 may be used. Install a safety temperature limiter if needed. Observe the manufacturer's safety and installation instructions for infrared emitters and heating foils. Observe the cabin manufacturer’s safety and installation in- structions. SBM-IR Modul - Operating Instructions... -
Page 6: Operator Instructions
If the heating period does not switch off automatically, cabin use must be supervised at all times. Inspect the cabin before each use. Operating Instructions - SBM-IR Modul... -
Page 7: Standards And Regulations
Electromagnetic compatibility – Requirements for household appliances, electric tools and similar apparatus – Part 1: Emission DIN EN 55014-2 Electromagnetic compatibility – Requirements for household appliances, electric tools and similar apparatus – Part 2: Immunity SBM-IR Modul - Operating Instructions... -
Page 8: Identification
Identification Identification This chapter describes the control units used to control a SBM-IR Modul in an infrared or sauna cabin. Control units The SBM-IR Modul can be operated with one of the following control units: EmoTec, EmoTec IR (software release R. 3.45 or higher) ... - Page 9 The unit is operated by children or persons with reduced mental capac- ity or by persons who have not been thoroughly instructed in its use. General safety instructions, 5 For more information, see the SBM-IR Modul installation instructions. SBM-IR Modul - Operating Instructions...
-
Page 10: Operation
The relay box is ready for operation in standby mode. Position 0: Relay box is completely switched off. Parts of the circuit board are still energized. Position II: Cabin light is switched on, relay box is switched off. Position for maintenance and cleaning. Operating Instructions - SBM-IR Modul... -
Page 11: Configuring The Ir Control System
Front left Back middle Back left Back right Ceiling Floor Side right Side left IR group 1 IR group 2 IR group 3 IR group 4 IR group 5 Each icon may be assigned only once. SBM-IR Modul - Operating Instructions... -
Page 12: Adjusting The Ir Emitters
IR emitter, but rather switched off when the ambient tempera- ture reaches 70°C. In Foil operating mode, it is controlled via the ambient temperature sensor. Note that the intensity and temperature settings impact the duration of the heat-up phase. Operating Instructions - SBM-IR Modul... -
Page 13: Emotouch 3
Unit operation and unit settings are available on different lev- els: Operation Private operation level Commercial opera- Basic settings tion Advanced settings (with PIN code) Service level Settings for service technician (with PIN code) SBM-IR Modul - Operating Instructions... -
Page 14: Configuring During Commissioning Or After A Reset
See 3.3.2 Configuring the channel groups, 14 3.3.2 Configuring the channel groups The settings are configured as shown in the example above. Configuring the IR channel groups Select the cabin. Tap and hold for 3 seconds. Operating Instructions - SBM-IR Modul... - Page 15 Operation Enter code 5349 and confirm. Setting code 1 2 3 4 5 6 7 8 9 01. June 2019 08:44:40 and confirm the selection. Settings IR setup °C UPDATE 01. June 2019 08:44:40 SBM-IR Modul - Operating Instructions...
- Page 16 Select the IR emitter icon and confirm. Settings Channel assignment A Back Middle 01. June 2019 08:15:40 You may assign each icon only once. Follow the same steps to configure the next channel group. Operating Instructions - SBM-IR Modul...
-
Page 17: Setting The Ir Operating Mode
You can set the intensity of the IR emitters per channel. Setting the operating mode Press and hold the IR emitter icon for 5 seconds. 01. June 2019 08:45:40 Settings Operation mode 01. June 2019 12:45:40 SBM-IR Modul - Operating Instructions... -
Page 18: Setting The Ir Temperature
The ambient temperature in the IR-only cabin cannot exceed 70°C. This maximum temperature cannot be exceeded even if all IR emitters are oper- ating at full intensity. Setting the IR temperature Select the cabin. Tap the IR emitter icon. 01. June 2019 08:45:40 Operating Instructions - SBM-IR Modul... -
Page 19: Setting The Ir Intensity
You can set the intensity of the IR emitters while the system is in operation. It generally applies to one channel group. Setting the IR emitter intensity Select the cabin. Tap the IR emitter icon. 01. June 2019 08:45:40 SBM-IR Modul - Operating Instructions... - Page 20 Only 0% or 100% may be selected for emitters at the IR-3 connection; 20%-100% for foils. The channel group emitters are immediately set to the new intensity. This means they are not set to the target temperature. Operating Instructions - SBM-IR Modul...
- Page 21 Operation to switch to the next channel group as needed. Setting IR intensity 01. June 2019 12:45:41 SBM-IR Modul - Operating Instructions...
-
Page 22: Switching Hysteresis For The Ir Temperature
Enter code 5349 and confirm. and confirm the selection. Set the value with , and then confirm. Setting Switch. hysteresis 27. June 2019 09:16:42 The value can be set to any number between 1 and 5. Operating Instructions - SBM-IR Modul... -
Page 23: Emotec Ir, Infrastyle, Infrastyle I
The home screen (standby) appears after the jog dial has not been touched for 15 seconds. Settings that have not been saved are lost. Date and time are saved if the built-in battery is in working order. All other settings are saved permanently. SBM-IR Modul - Operating Instructions... - Page 24 The home screen (standby) appears after the display has not been touched for 15 seconds. Settings that have not been saved are lost. Date and time are saved if the built-in battery is in working order. All other settings are saved permanently. Operating Instructions - SBM-IR Modul...
-
Page 25: Configuring During Commissioning Or After A Reset
Configuring the IR channel groups : Select and confirm by pressing and holding until the code entry is displayed. a) EmoTec: Press and hold the jog dial. b) EmoStyle: Press and hold the Enter icon. SBM-IR Modul - Operating Instructions... - Page 26 Operation Operation mode Setting °C °C 09:01 09:01 Enter code 5349 and confirm. Code Setting Code 5349 09:11 Increase or decrease the numbers and confirm by pressing Enter. Confirmed numbers appear green. Operating Instructions - SBM-IR Modul...
- Page 27 Operation : Select and confirm. Service/Maintenance °C 09:11 Select the channel and confirm. Assignment channel A A B C 09:15 SBM-IR Modul - Operating Instructions...
- Page 28 10:45 10:45 Select the IR emitter icon and confirm. A: Back Middle A: Back Middle 10:55 10:55 You may assign each icon only once. Follow the same steps to configure the next channel group. Operating Instructions - SBM-IR Modul...
-
Page 29: Ir Operating Mode
IR temperature. In this operating mode, both the IR temperature and the intensity of the IR emitters can be set. Depending on the IR operating mode you select, you can now set the temperature and/or intensity. SBM-IR Modul - Operating Instructions... -
Page 30: Setting The Ir Temperature
09:01 09:01 Set the temperature and confirm. Temperature Setting for operation IR mode 65°C 09:07 Confirm the set value. The value is saved and the display returns to the screen for operating mode selection. Operating Instructions - SBM-IR Modul... -
Page 31: Setting The Ir Intensity
: Select and confirm. IR intensity Operation mode °C °C 09:01 09:01 Select the channel and confirm. B: Back Middle 09:05 Only 0% or 100% may be selected for emitters at the IR-3 connection; 20%-100% for foils. SBM-IR Modul - Operating Instructions... -
Page 32: Switching Hysteresis For The Ir Temperature
IR emitters are switched on and off. It applies to all connected IR emit- ters. The IR emitter is Example — 46°C target temperature and hysteresis 4 K: switched off at 48°C and switched on at 44°C. Operating Instructions - SBM-IR Modul... - Page 33 EmoStyle: Press and hold the Enter icon. Operation mode Setting °C °C 09:01 09:01 Enter code 5349 and confirm. Code Setting Code 5349 09:11 Increase or decrease the numbers and confirm by pressing Enter. Confirmed numbers appear green. SBM-IR Modul - Operating Instructions...
- Page 34 Operation : Select and confirm. hysteresis °C 09:21 Set the desired value and confirm. hysteresis Setting Switch.hysteresis 09:22 The value is saved and the display returns to the selection screen for advanced settings. Operating Instructions - SBM-IR Modul...
-
Page 35: Troubleshooting
Operation Troubleshooting Error message and icons on the control panel indicate SBM-IR Modul operating statuses and fault conditions. Fault Reason Solution Control panel display is blank No power supply. Switch on the relay box. Check the relay box’s mains connection. -
Page 36: General Terms And Conditions Of Service
In the case of a warranty claim, the manufacturer shall provide replace- ment parts necessary for servicing free of charge. IV. Service visit by the manufacturer Services rendered on site by an employee of the manufacturer must be agreed in advance. Operating Instructions - SBM-IR Modul... - Page 37 Service visits made by third parties shall require a written order issued by our service department. The equipment in question shall be sent to our service department by the customer at the customer’s own expense. SBM-IR Modul - Operating Instructions...
- Page 38 The manufacturer’s General Terms and Conditions of Business, in the ver- sion available at www.eos-sauna.com/agb, shall apply in addition to the foregoing terms and conditions of service. Operating Instructions - SBM-IR Modul...
-
Page 39: Disposal
Do not dispose of the unit with household waste. Packaging SBM-IR Modul packaging can be completely separated for disposal and recycled. The following materials are used in the packaging: Used paper, cardboard ... - Page 40 Store this address with the Operating Instructions in a safe place. Please always provide us with nameplate data, such as model, item num- ber and serial number so we can provide fast and efficient support. Date of sale Stamp/retailer signature: © EOS Saunatechnik GmbH - Alle Rechte vorbehalten.
