Summary of Contents for EOS ECON D4

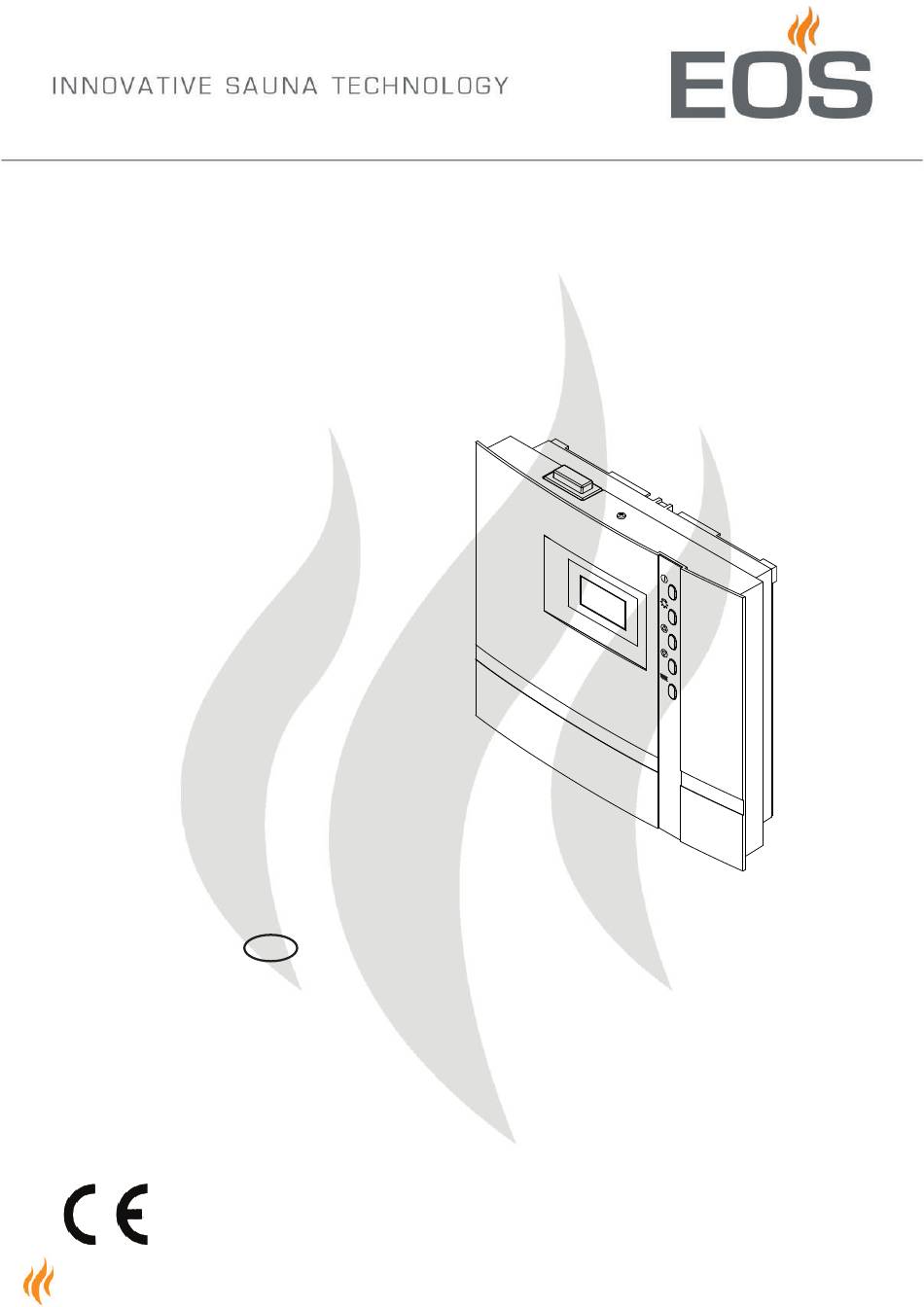

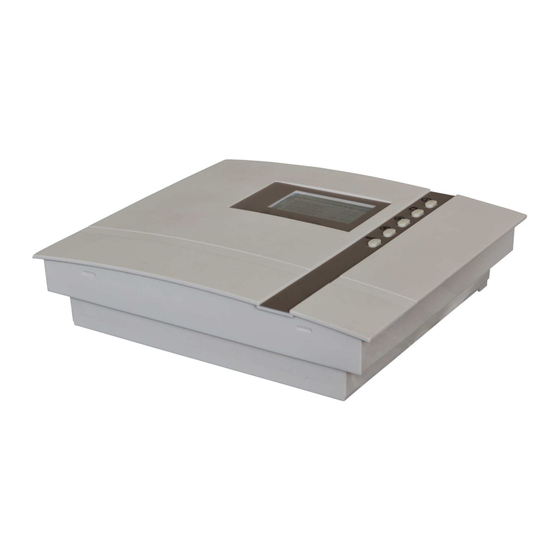

- Page 1 ECON D4 sauna control unit Assembly and operation instruction Made in Germany IP x4 Druck Nr. 29344630en / 21.14...
-
Page 2: Table Of Contents
English content Scope of Delivery ............................4 Technical data ..............................5 General information about using the sauna ..................6 General safety information ........................7 Assembly of the control unit ........................9 Assembly on the wall ..........................9 Assembly in the wall ........................... 10 Connection of the sensor lines ......................11 Assembly of the stove sensor ...................... - Page 3 Activation of the sauna stove with Life-Guard ..............24 Individual settings ..........................25 Cabin temperature ........................25 Auto-stop ............................26 Preselection time ........................... 28 Activation of the preselection time ..................29 Deactivation of the preselection time ................... 29 Life-Guard ............................30 Extend heat-up time restriction ......................
-
Page 4: Scope Of Delivery
Standard delivery (Subject to change) Included in control unit scope of delivery: 1. Stove sensor board with over-temperature fuse, PTC sensor with sensor housing, two attach- ment screws 3 x 25 mm and sensor cable approx. 2.0 m long. 2. Plastic bag containing three mounting screws 4 x 20 mm. 3. -
Page 5: Technical Data
Technical data • Rated voltage: 400 V 3 N 50 Hz AC • Switch output: max. 9 kW resistive load (AC1 mode). Can be expan- ded to 36 kW via the connection of power switching devices • Heat-up time restriction: 6 h, 12 h / without heat-up time restriction •... -
Page 6: General Information About Using The Sauna
Dear customer General information You have purchased a high-quality technical Please check whether the unit has arrived in per- device with which you will have years of sauna fect condition. Any transport damages should be fun. This sauna control unit was designed and immediately reported to the freight forwarder inspected according to the current European delivering the goods or you should contact the... -
Page 7: General Safety Information
General safety precautions held within operating parameters and a minimal temperature gradient inside This device can be used by children aged • the bench area of the sauna cabin can be 8 upwards and by persons with physical, achieved only if unit is assembled correct- sensory, or mental disabilities, or who have inadequate experience and knowl- edge if they are supervised or if they have... - Page 8 Attention! When using control units that o er the possibility of external access (GSM-modu- le, remote button, etc.) or time-delayed switching (preselection time, weekly ti- mer, or similar) a protective system for the sauna heater is required (cover protection type 1-6 or S-Guard). Attention! Dear customer, according to the valid regulations, the...
-
Page 9: Assembly Of The Control Unit
Fasten the housing bottom at the two bot- Installation of the control unit tom openings (Fig. 4) rmly to the cabin wall. Wall installation The control unit may only be mounted outside the sauna cabin. It is advisable to select the out- side wall of the cabin to which the sauna heater is xed from the inside as mounting position. -
Page 10: Assembly On The Wall
Recessed installation 1. Cut out a wall section that is at least 3.5 cm deep according to the dimension in Fig. 5. Fig. 5 Insert the supplied rubber grommets into the openings at the rear wall of the housing and insert the connecting cables through these openings. -
Page 11: Assembly Of The Stove Sensor
Connecting the sensor cables 20 cm You should not install sensor and power supply lines together, or lead them through the same feedthrough. This can lead to interferences in the electronics, such as " uttering" in the re- lays. If it is necessary to lay the cables down together, or if the line is longer than 3m, use a shielded sensor cable (4 x 0.5 mm²). - Page 12 Jumper Borehole Sauna heating time limit 6h, 12h, without restriction Sauna ceiling Centre sensor housing on middle section optional bench sensor Sensor cables Figure 11 Caution! If the lines on plug X2 are confused, this can trigger F2 and da- 142°C mage the unit (Replacement, see pa- ragraph "Replace device fuse")
-
Page 13: Connection Of The Sensor Lines
The following error message appears if there is Installing the optional a bench sensor malfunction: bench sensor "Broken bench sensor" - interruption of the connection in or to the sensor Assembly site: The bench sensor (2nd tempe- rature sensor) is attached to the ceiling above "Short circuit bench sensor"... -
Page 14: Electrical Connection
Connecting the sauna lamp Electrical connection Only use dimmable lighting and bal- The electrical connection may only be done lasts, because otherwise the lights or by a certi ed electrician in compliance with the control unit may become damage. the guidelines of the local utility company The type of light is recognised automatically, but and the VDE. -
Page 15: Installation Diagram
Installation diagram optional = optional ECON 400 V 3 N AC 50 Hz The control lamp for public systems without heat-up time restriction must be installed in the supervisor's room. Terminal arrangement on the circuit board Sauna bus Plug for sensor connection connection Plug for bench sensor (optional) Only use N-connections for fan and light... -
Page 16: Wiring Diagram Sauna Heater Up To 9 Kw
Connecting the sauna heater (max. 9 kW) 142°C ECON L1 L2 L3 Lü V1 N S1 Limiter weiß / white Sensor rot / red max. 100 W max. 100 W P max. 9 kW 400 V 3 N AC 50 Hz Caution: Always connect the neutral conductor (N) of the sauna stove. -
Page 17: Operation
Operation Once the system has been installed with all components and all covers have been xed, you can put your sauna unit into operation. Over the following pages we will show you the options provided to you with the control. Generalities The user interface MODE... -
Page 18: Basic Stand By Screen
Default display Stand-by is shown if the system is in Stand-by mode. 12:00 Temperatur 30°C The system also returns to this screen from Auto-Stop 5 : 59 other menu items, if there is no activity for >15 Vorwahlzeit - - : - - seconds. -
Page 19: Cabin Lighting
To adapt the individual values to the respec- tive requirements, the button must be MODE pressed brie y from the standby screen. 12:15 Temperatur 30°C Those parameters that can be changed are Feuchte shown in black and the required parameters Auto-Stop 5 : 59 - - : - -... -
Page 20: Fans
The cabin lighting can be dimmed and saves > 3 s this value separately for operation mode and 12:15 standby mode. To change the value for the standby, press the light button in standby for >3s until the light symbol appears with a bar in the display. -
Page 21: Initial Commissioning
Initial commissioning 12:15 Life - Guard 12:00 12:15 Life - Guard 12:00 > 3 s MODE > 3 s MODE 12:15 00:00 Tageszeit : 00 00:00 Tageszeit 12:15 : 00 MODE 00:00 > 3 s MODE Tageszeit 12:00 12 : Temperatur 30°C Auto-Stop... -
Page 22: Changing The Language
Change language Change time 12:00 12:00 Temperature 30°C Temperatur 30°C Auto-stop Auto-Stop 5 : 59 5 : 59 Start time - - : - - Vorwahlzeit - - : - - & & MODE MODE 12:00 12:15 Tageszeit Time of day 12 : 00 12 : 15 MODE... -
Page 23: Activating The Life-Guard
Activating the Life - Guard Activate / deactivate the child lock Life-Guard is a de nable, relative short time e.g. 20 min., after which the sauna system is swit- If the child lock is activated (the key symbol is ched o apart from the cabin lights. After this visible in the upper part of the display), only the time, the systems can be activated again for the cabin lights can be switched. -
Page 24: Activation Of The Sauna Stove
Switching on the sauna unit Activation of the sauna system with Life-Guard 12:00 12:00 Temperatur 30°C Temperatur 30°C Auto-Stop 5 : 59 Auto-Stop 5 : 59 Vorwahlzeit - - : - - Vorwahlzeit - - : - - 20 min Life - Guard >... -
Page 25: Individual Settings
Individual Settings The following are options for adapting the control systems to your individual needs. The various parameters can be changed in standby or in operation mode and the changes are saved in the device. Changes made in operation mode are implemented immediately. Setting range: Finnish mode 30 - 115°C Cabin temperature In operation... -
Page 26: Auto-Stop
Auto-stop / heat-up time restriction Auto-Stop is the time to which the heating time is limited. The sauna unit automatically turns o once this time has expired. Depending on the con guration of the control unit, a time between 0:01 and 6:00 or 12:00 hours can be set (see page 31). - Page 27 12:15 12:15 Temperatur 30°C Temperatur 30°C Auto-Stop Auto-Stop - - : - - - - : - - Vorwahlzeit Vorwahlzeit > 3 s > 3 s MODE MODE 12:00 12:15 Temperatur 30°C Temperatur 30°C Auto-Stop Auto-Stop 3 : 30 3 : 30 Vorwahlzeit Vorwahlzeit - - : - -...
-
Page 28: Preselection Time
Preselection time The preselection time is used to pre-select the activation time of your sauna stove within 24 hours. Always make sure that there are no objects on the sauna unit before the heating process begins. Risk of re!! Please remember however that the cabin must heat up for approx. 40-50 minutes in order to achieve a pleasant climate in the cabin. -
Page 29: Activation Of The Preselection Time
12:15 12:15 Temperatur 30°C Temperatur 30°C Auto-Stop 5 : 59 5 : 59 Auto-Stop 17 : : - - Vorwahlzeit Vorwahlzeit 12:15 12:15 Temperatur 30°C Temperatur 30°C Auto-Stop 5 : 59 Auto-Stop 5 : 59 Vorwahlzeit 17 : Vorwahlzeit 17 : >... -
Page 30: Life-Guard
Life-Guard Here you can set the time after which the sauna system should be deactivated and reactivated again for the Life-Guard time by pressing the button. MODE This setting can only be made in standby mode if the Life-Guard function is active. In Stand-by 12:00 12:00... -
Page 31: Extend Heat-Up Time Restriction
Extend heat-up time restriction / replace device fuse By altering a jumper you can extend the heat-up restriction from 6:00 (standard) to 12:00 hours or "inde nite". Please note that extensions are only allowed in certain commercially operated sauna systems. Only allow a specialist to carry out this work. -
Page 32: Error Messages
Error messages The control unit continuously monitors the sensor for short circuits and interruptions. At the same time, the system checks to ensure that there is enough water in the vaporizer tank. The error messages appear as follows: Display Cause Remedy = interrupted room sensor circuit Arrange for a specialist to... -
Page 33: The Device Switch (Switch-Off )
The device „Switch-o “ switch Switch-o by ECON control units You will nd the rocker switch on the top side of the control unit. You can completely discon- nect the control unit from the mains using this switch. Switch-o Unit turned on (default Position I) Press the switch on the left side of the rocker Unit fully switched o... -
Page 34: Manual Specification Of The Lighting
Manual specifi cation of the lighting: The control system recognises inductive loads via a voltage rise and then switches from phase control to phase cut-off. If there are recognition problems, the phase control type can be defi ned manually. Only a specialist from an authorised specialist company may carry out this work! 1. -
Page 35: Holiday Home Mode
Holiday home mode The holiday home mode allows the control system to be blocked so that only the most necessary functions are visible and the lan- guage for the menu needs to be selected every time before use. The holiday home mode is activated and de- activated by keeping the Up+Down buttons pressed whilst switching on via Switch-Off. -
Page 36: Recycling
Outside of Germany please contact your spe- cialist dealer in case of warranty claims. Direct Service Address: warranty processing with our service depart- EOS Saunatechnik GmbH ment is in this case not possible. Schneiderstriesch 1 Equipment commissioning date: 35759 Driedorf, Germany... -
Page 37: Handling Procedures For Return Shipments (Rma) - Details For All Returns
Handling procedures for return shipments (RMA) - Details for all returns ! Dear customer we hope that you will be satis ed with the purchased EOS product. In the rear case if you may have a claim and will need to return a product, please follow the procedures speci ed below.
