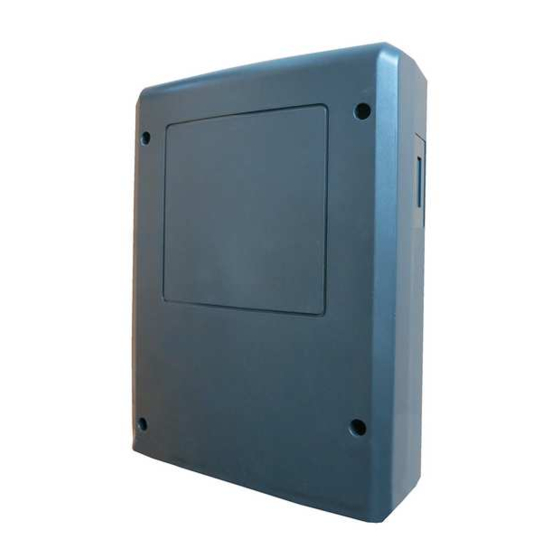

- Page 1 I N N O V A T I V E S A U N A T E C H N O L O G Y Saunabus Soundmodul SBM-S 30 SBM-S 30 BT Installation and operation manual Made in Germany print no. 29344683 en / 41.17 Technical changes are reserved...
-
Page 2: Table Of Contents
English contents General information .............................. 3 Delivery scope ................................5 Technical data ................................5 Assembly ..................................6 Electrical connection and equipment ......................7 Connection diagram .............................. 7 Supported formats ..............................8 Operation sound ..............................10 Recycling ..................................12 Service Address: ..............................12 Guarantee ................................13 General Terms and Conditions of Service .....................13... -
Page 3: General Information
General Safety Regulations Dear customer, You have purchased a high-quality electronic device that you will enjoy for many years. This This device can be used by children aged module was designed and tested in compli- • ance with the current European safety stan- 8 and above or by persons with physical, dards and was produced in the manufacturer's sensory, or mental disabilities, or who... - Page 4 Caution, risk of fatal injuries: Ne- • Caution! ver carry out repairs or installation work Dear Customer, In compliance with the yourself. Only a qualified technician may valid regulations, only qualified elec- remove the housing cover. tricians from an authorised electrician The system must be completely discon- •...
-
Page 5: Delivery Scope
3.5mm jack socket for NF Audio (in the casing) SD card slot (in the casing) Bluetooth (only SBM-S 30 BT) Data connection: EOS sauna bus (in the casing) Bluetooth – max. 10 m range Outputs: 2 x loudspeakers stereo Output:... -
Page 6: Assembly
Installation The module may only be mounted outside the cabin. Possible assembly points are the outer wall of the cabin or the equipment room. Installation on the cabin ceiling is also possible, if adequate ventilation is ensured. If empty ducts for electrical installations are in place, the position of the module is determined by these. -
Page 7: Electrical Connection And Equipment
Electrical connection and equipment • First ensure that the mains plug has been disconnected. • Use the supplied cable to connect to one of the other free sauna bus sockets on the sauna con- trol system or another module. • Connect the loudspeakers. - + - + left right... -
Page 8: Supported Formats
Supports music file formats on the SD card and USB: • MPEG 1, MPEG 2, MPEG 2.5 Caution! • MP3 (MPEG-2 Audio Layer III) Remove the mains plug before ope- • Layer 1, Layer 2, Layer 3 ning the lid of the casing! •... - Page 9 2 for steam room control units). ting at the control unit is secondary. The BT function in the sound module may be deactivated in the setup menu via the control unit. Contact your local EOS dealer or EOS ser- vice for further information.
-
Page 10: Operation Sound
Operating principle The functions (e.g. light) can be activated or deactivated by briefly tipping the user interface. Pressing for a longer period (>3 sec.) will take you to the available settings for this function. Back Operate by touching the display either briefly or for longer. - Page 11 Music control at the control unit is the same by all connection types. BT connectivity of the sound module may be disabled. Please contact your EOS dealer or EOS service for more information. No music files will be copied to the sound mod-...
-
Page 12: Recycling
Service Address: EOS Saunatechnik GmbH Schneiderstriesch 1 35759 Driedorf, Germany Tel: +49 (0)2775 82-514 Fax: +49 (0)2775 82-431 servicecenter@eos-sauna.de www.eos-sauna.de Equipment commissioning date: Please keep this address in a safe place togeth- er with the installation guide. Stamp and signature of the authorized elec-... -
Page 13: Guarantee
General Terms and Conditions of Service shipments via parcel post. The manufacturer shall accept no liability for damage incurred as a result of improper I. Scope packaging in an individual shipment. Unless otherwise agreed in writing in a specific case, VI.
