Summary of Contents for EOS SBM GLT KNX

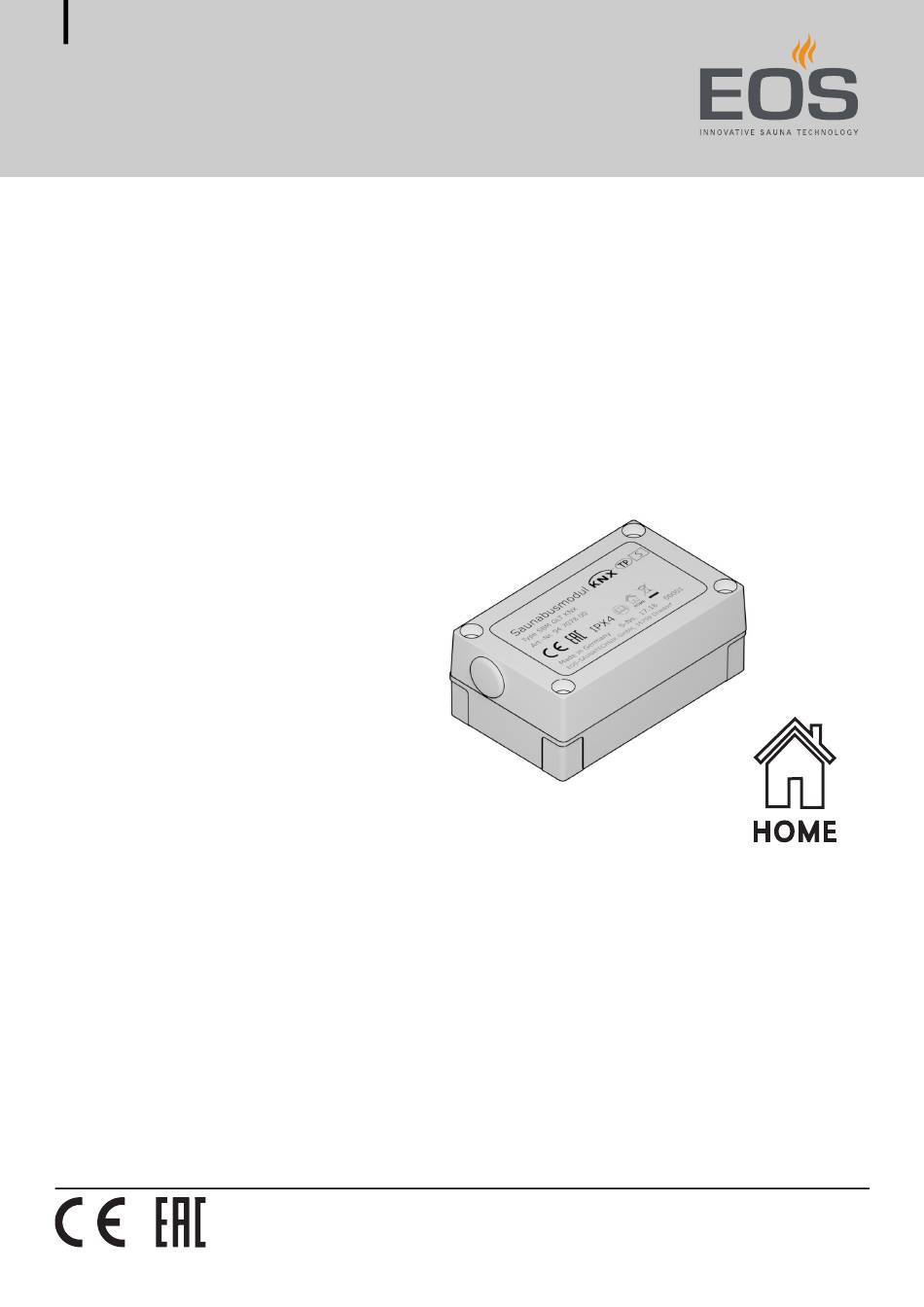

- Page 1 SBM GLT KNX KNX Home-Modul for building management systems Installation and Operating Instructions Made in Germany Druck-Nr.: 2934 5021 Stand: 1.1/2019...
-
Page 2: Documentation
Documentation Documentation Manufacturer EOS Saunatechnik GmbH Schneiderstriesch 1 35759 Driedorf, Germany Tel. +49 2775 82-0 +49 2775 82-431 www.eos-sauna.com Original installation instructions EN Copyright for these installation instructions remains with EOS Saunatechnik GmbH. Copyright as per DIN ISO 16016: The copying and distribution of this document, as well as the use and com- munication of its contents without express authorization, are not permit- ted. -
Page 3: Table Of Contents
Contents Documentation......................2 1 General safety instructions................. 4 Safety levels....................... 4 Mounting and electrical installation ............5 Operator instruction ..................5 Standards and regulations ................7 2 Identification ......................8 Unit specifications ..................8 Intended use..................... 9 3 Description of the unit ..................10 Housing ......................11 Communication functions.................12 Sample installation..................13... -
Page 4: General Safety Instructions
General safety instructions General safety instructions Safety levels Safety instructions and important operating instructions are clas- sified according to ANSI Z535.6. Please familiarise yourself with the following terms and symbols: DANGER Danger Indicates a hazardous situation which, if not avoided, will result in death. -
Page 5: Mounting And Electrical Installation
General safety instructions Mounting and electrical installation These installation instructions are intended for qualified person- nel familiar with the laws and regulations applicable to electrical installations at the installation site. Observe the following general safety instructions during mounting, configuration and commis- sioning of the product. - Page 6 General safety instructions Risk of burns and Touching hot parts may lead to skin burns and chemical burns of chemical burns the skin. The operator must be familiar with the unit’s hot parts and be able to identify them. ...
-
Page 7: Standards And Regulations
General safety instructions Standards and regulations The following standards, in their currently applicable versions, were observed during design and construction. Local regulations also apply to the installation and operation of heating, sauna, and steam room systems. Standard Title DIN EN 60335-1 Household and similar electrical appliances –... -
Page 8: Identification
Unit specifications Nameplate The nameplate is attached to the front of the upper part of the housing. Saunabusmodul Type SBM GLT KNX Art.-Nr. 94 7078 00 IPX4 Made in Germany S-No. 17.18 00001... -
Page 9: Intended Use
Identification Intended use The KNX Home module is intended to be connected to a building manage- ment system. It serves to remotely control selected functions in sauna cab- ins, infrared cabins and steam rooms. The following control units support this control: ... -
Page 10: Description Of The Unit
The KNX Home-Modul should be operated with software ver- sion ETS5 or higher. Scope of delivery The SBM GLT KNX is encased in a plastic housing. The housing completely encloses the circuit board and the electronics. The following components are included in the scope of delivery: ... -
Page 11: Housing
Description of the unit Housing Two circuit boards are used to establish a connection from the sauna bus to the KNX bus. The plastic housing completely encloses the circuit boards. Power is supplied via the bus line. A KNX circuit board C Cable feed opening B Terminals for KNX lines D S bus connection (S bus) -
Page 12: Communication Functions
Description of the unit Communication functions The KNX Home module provides the following communication functions. The data type is defined by the KNX association. Settings made using a setpoint enable changes during operation. The actual value supplies current data from the cabin. A feedback mechanism sends a signal when changes are made in the cabin. -
Page 13: Sample Installation
Description of the unit Sample installation Individual functions can be activated in a standard installation, e.g. Sauna on/off, Cabin light on/off. LE D1 10μF /16V 10μF /16V S W 1 LE D 2mA rt K L1 C 17 R 53 C 18 IC 8 S K HUAK E 010... -
Page 14: Circuit Boards
Description of the unit Circuit boards The housing contains two combined circuit boards. The upper circuit board establishes a connection to the building management system, while the lower circuit board is used for sauna control. LE D1 S W1 K L1 C 17 C 18 R 53... -
Page 15: Mounting And Electrical Installation
Mounting and electrical installation Mounting and electrical installation This chapter describes how to mount and wire the SBM GLT KNX. NOTICE Equipment damage Corrosive environments or environments with high levels of saline in the air could damage lines and circuit boards. - Page 16 Mounting and electrical installation Attach the bottom piece to the mounting location using the screws pro- vided. Bottom piece of SBM GLT KNX housing Wiring the connections Feed the connection cable through the opening on the top piece of the housing.
-
Page 17: Connecting The Knx Home-Modul With The S Bus
Mounting and electrical installation Configure the S bus address if necessary. See: 4.3 Configuring addresses for multi-cabin installations, 20 Program the KNX address and user software. See: 4.4 KNX programming, 21 When all settings have been completed, place the top piece of the hous- ing on top and attach it using the 4 housing screws. -
Page 18: 4.2.1 Connecting The S Bus Cable To The Relay Box Or Module
A Relay box circuit board C Add-on module circuit board B Control unit D SBM GLT KNX Advanced installation In the case of a multi-cabin installation with the EmoTouch 3 control unit, the KNX Home-Modul must be installed in the same S bus seg- ment as the relay box that is to be controlled. - Page 19 Mounting and electrical installation Connecting the S bus DANGER! Ensure that there is no voltage present on the circuit board. Disconnect the circuit board entirely from the mains supply. Remove the housing cover. Plug the plug into an S bus jack on the circuit board. S-BUS S-Bus SENSOR...
-
Page 20: Configuring Addresses For Multi-Cabin Installations
Mounting and electrical installation Configuring addresses for multi-cabin installations You only need to configure S bus addresses in a multi-cabin installation with an EmoTouch 3 control unit. The S bus address of the cabin you want to control must be configured in the KNX Home-Modul for this purpose. The Emotec, EmoStyle, EmoStyle i, Emotec IR, InfraStyle and InfraStyle i always require the cabin address 1. -
Page 21: Knx Programming
Please note that the address increases by one each time you press the programming button, e.g. from 4 to 5. KNX programming The SBM GLT KNX should be operated with software version ETS5 or higher. In the ETS project, a corresponding unit must be created and con- figured. - Page 22 Mounting and electrical installation Configuring the transfer protocol : Select and confirm by pressing and holding until the code entry is displayed. a) Emotec: Press and hold the jog dial. b) InfraStyle, InfraStyle i: Press and hold the Enter icon. Operation mode Setting °C...
- Page 23 Mounting and electrical installation : Select and confirm. Home °C 11:51 : Select and confirm. 10:25 KNX Home-Modul - Installation and Operating Instructions...
-
Page 24: Emotouch 3 Data Communication
Mounting and electrical installation Confirm your entry with Home activate 11:51 EmoTouch 3 data communication When the building management system and the KNX Home-Modul are connected, you must define the transfer protocol. Familiarity with the gen- eral operating functions is assumed. ... - Page 25 Mounting and electrical installation Select the KNX Enable checkbox. Settings Enable Disable Modbus Enable Disable Address Stop bits Parity NONE EVEN 4800 Baud Rate 1200 2400 9600 57400 19200 38400 115200 27. August 2018 09:16:42 You are not required to set any further values for the KNX transfer protocol.
-
Page 26: General Terms And Conditions Of Service
General terms and conditions of service General terms and conditions of service (T&C, Dated 08-2018) I. Scope Unless otherwise agreed in writing for specific instances, these terms and conditions of service shall apply to service operations, including reviewing and remedying complaints. All our existing or future legal relationships shall be governed solely by the following terms and conditions of service. - Page 27 General terms and conditions of service If the main reason for the service visit is not the fault of the manufacturer, any costs incurred shall be charged to the customer after the service visit and must be paid by the customer in full within the agreed payment term. V.
- Page 28 General terms and conditions of service The manufacturer’s General Terms and Conditions of Business, in the ver- sion available at www.eos-sauna.com/agb, shall apply in addition to the foregoing terms and conditions of service. Installation and Operating Instructions - KNX Home-Modul...
-
Page 29: Disposal
Do not dispose of the unit with household waste. Packaging The packaging of the SBM GLT KNX can be completely separated for dis- posal and recycled. The following materials are used in the packaging: Used paper/cardboard ... - Page 30 Installation and Operating Instructions - KNX Home-Modul...
- Page 31 KNX Home-Modul - Installation and Operating Instructions...
- Page 32 Store this address with the Installation and Operating Instructions in a safe place. Please always provide us with nameplate data, such as model, item num- ber and serial number so we can provide fast and efficient support. Date of sale Stamp/retailer signature: © EOS Saunatechnik GmbH - All rights reserved.
