REMOTE CONTROL

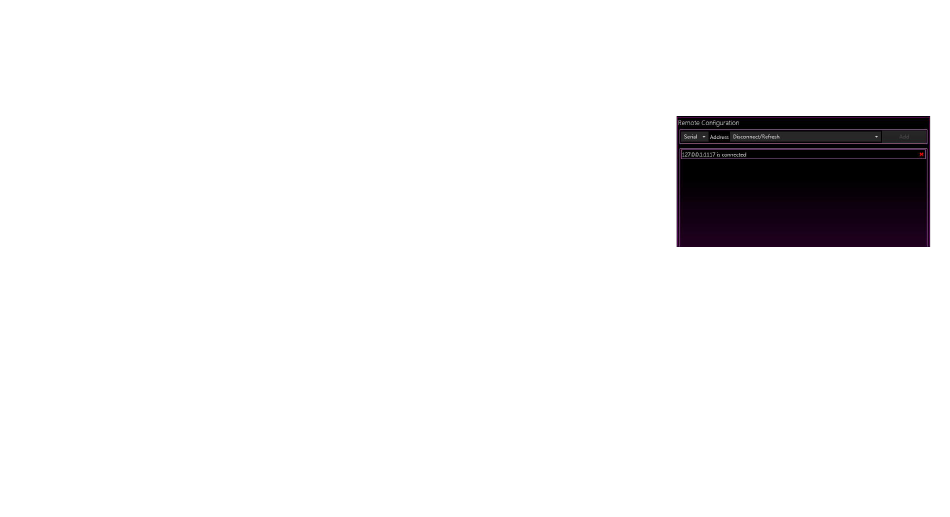

Remote Configuration - Inspection Management Software
Choose how you would like to receive messages - Serial or Ethernet.
Under the Remote Configuration
For Serial control: Select a COM port from the next dropdown. then click
●
For UDP control: Enter a port number into the next field and click
●
To clear/disable a port, click the red x.
The DVR is now ready for remote control. You can issue commands through the protocol you have
selected.
Please ensure that:
Any video and still capture paths specified in your inspection software correspond to feasible
●
paths on the DVR and not a read-only location (e.g. not an optical drive)
The drive letter is valid (a letter being used by one of the storage devices on the DVR)
●
● That there is sufficient free space on the drive. Individual folders, however, will be created
without issue if it happens that they don't already exist on the DVR file system.
section, select either Serial or UDP from the dropdown menu.
Add.
Add.
Page 61
DVR Remote Control Settings
