COMMUNICATION
Starting the DVR

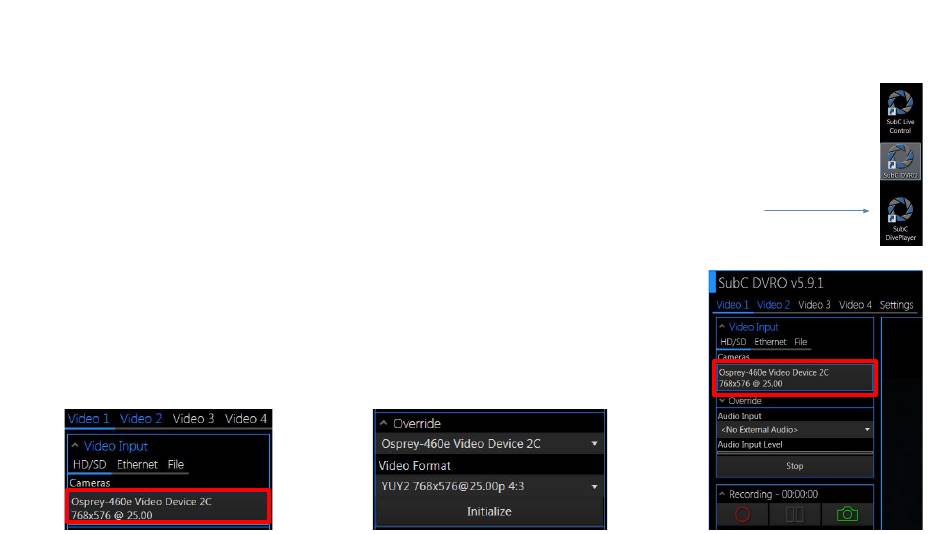

Start the DVRO. The upper-left corner of the main overlay window will look similar to what is shown in the
image on the left. The number of concurrent video feed tabs (Video 1, Video 2, etc.) will vary depending on
your DVR's configuration. Any video inputs that are receiving video from a connected camera will appear in
the Video Input section in blue. Video inputs that are not receiving input will appear grey.
● To connect a video feed to a video input, click on one of the automatically detected feeds or
configure one manually under the
Connected feeds are shown under the
●
To connect a feed, click on the device name under cameras to start feeding its video.
●
It is possible to override the input setting to any of the DVR inputs even if they are not currently receiving
video. You may wish to do this if your camera is currently powered down but you plan to activate it later, or
if you are troubleshooting a video connection.
In this case, click on the
●
Osprey-460e Video Device 2C will be feeding Video 1
override tab.
HD/SD, Ethernet,
Override tab, select your input and video format, and press Initialize.
and File tabs.
Override tab
Page 13
The DVRO will launch
automatically when the DVR is
powered on but can also be
launched from a desktop
shortcut.
Main overlay window
