DYNAMIC OVERLAYS
Depth
The Depth Overlay displays a histogram of your depth, with minimum/maximum bounds
your current depth reading at the top right of the overlay.
1. COM Port
Choose the COM port to listen to. Typically, this is the same as the COM port of the connected camera.
2. Display Format
With this group of settings, you can further customize how your depth overlay looks and its position on
the screen. See Appearance and Positioning Options for details.
3. To Front/To Back
Send the overlay to the front or back of the back-to-front-ordering. Overlays closer to the front of the
order cover up those closer to the back of the order. For example, you can use this positioning to easily
place dynamic text on top of a custom graphical background.
4. Reset
Clears all settings preset in the current overlay.
1 - These begin at 0m and 100m respectively and adjust to fit the shallowest and deepest points of your measured depth.
1
, along with
1
2
3
4
Page 44
4
7 7

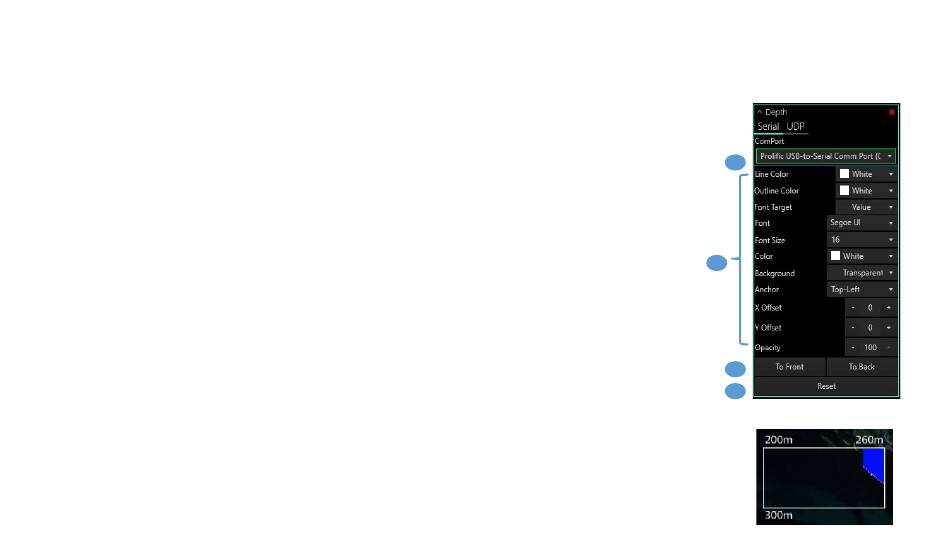

Typical appearance:
