DYNAMIC OVERLAYS
Picture-in-Picture/Splitscreen
The Picture-in-Picture (PiP) and Splitscreen features
allow two videos to be combined into a single
presentation. Any overlays present in the source video
will be included in its representation on the destination
video.

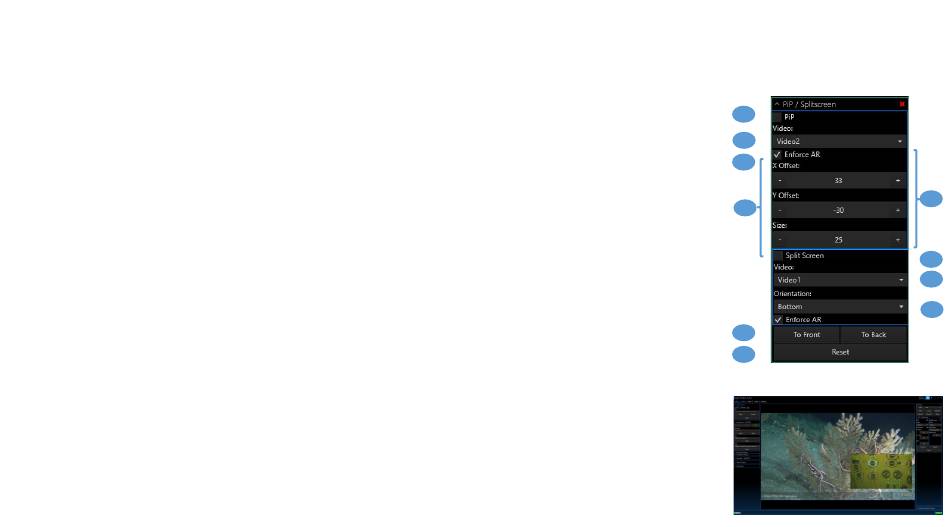

1. Select Mode
Select either the Picture-in-Picture (PiP) or Splitscreen
checkbox.
2. Video
Select source video to be inserted.
3. Enforce AR (Aspect Ratio)
Ensures video is represented in its natural proportions
while in Picture-in-Picture/Splitscreen mode.
4. PiP Size and Positioning
Adjust the horizontal (X Offset) and vertical (Y Offset)
positions relative to the center and the video size.
5. Splitscreen Orientation
Select the type of split and where the inserted
video will appear relative to the split.
6. Split At
Adjust the proportion of the width or height at
which the screen split occurs.
7. To Front/To Back
Send the overlay to the front or back of the
back-to-front-ordering. Overlays closer to the front
of the order cover up those closer to the back of
the order. These settings do not apply to
Splitscreen.
8. Reset
Clears all settings preset in the current overlay.
Page 46
1
2
3
4
4
7 7
7
8
Typical appearance:
