SubC Imaging DVRO User Manual page 43

DYNAMIC OVERLAYS

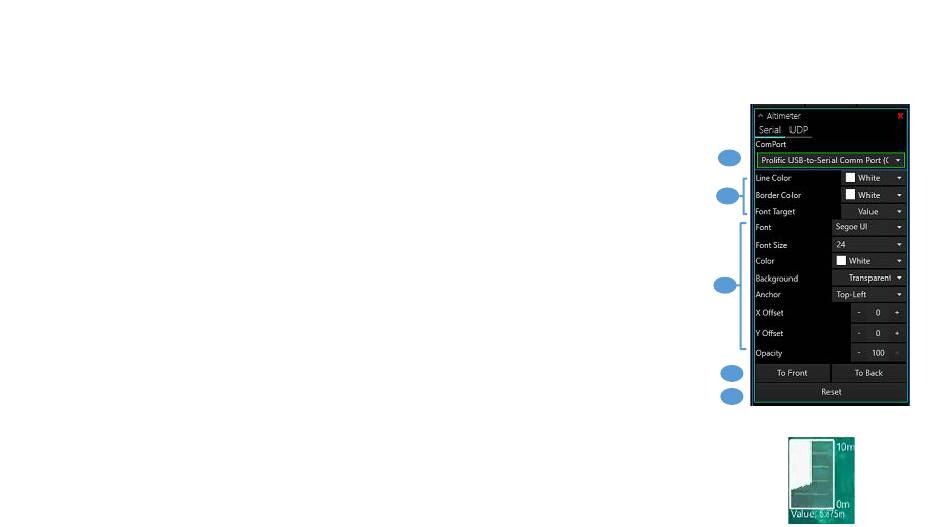

Altimeter
The Altimeter Overlay adds a histogram of your altitude while displaying your current altitude.
1. COM Port
Choose the COM port to listen to. Typically this is the same as the COM port of the connected camera.
2. Coloring Target Area & Target Area Color Settings
Specify the coloring of the middle circle and the backing colors for the inner and outer areas of the
compass rose (optional).
3. Display Format
With this group of settings, you can further customize your heading overlay's appearance and position.
Including the font, border and offset. See Appearance and Positioning Options for details.
4. To Front/To Back
Send the overlay to the front or back of the back-to-front-ordering. Overlays closer to the front of the
order cover up those closer to the back of the order. For example, you can use this positioning to easily
place dynamic text on top of a custom graphical background.
5. Reset
Clears all the settings preset in the current overlay.
Page 43
1
2
5
2
4
7 7
3
4
5
Typical appearance:
