SubC Imaging DVRO User Manual page 45

DYNAMIC OVERLAYS
Heading
The Heading Overlay adds a rotating compass rose with
your preset heading numerically displayed.
1. Heading
Your camera's preset heading is displayed here.
Degrees increase clockwise from North (0°), through to
East (90°), South (180°), etc.
2. COM Port
Choose the COM port to listen to. Typically this is the
same as the COM port of the connected camera.
3. Show Turn Counter
Check this box to include showing turns on the header
overlay.
4. Scale and Position Offset
Adjust the size of the overlay as it appears on the video,
as well as the X and Y offset.
5. Coloring Target Area & Target Area Color Settings
Specify the coloring of the middle circle and the
backing colors for the inner and outer areas of the
compass rose. Details will display below.
6. Font Target
Specify the font and text color of the central
heading value and the individual compass letters.
Details will display below (7).
7. Font Customization
In this section you can customize the font, size, color
and transparency. See Appearance and Positioning
Options for details.
8. To Front/To Back
Send the overlay to the front or back of the
back-to-front-ordering. Overlays closer to the front
of the order cover up those closer to the back of the
order. For example, you can use this positioning to
easily place dynamic text on top of a custom
graphical background.
9. Reset
Clears all settings preset in the current overlay.
Page 45
2
3
2
5
4
4
7 7
5
6
7
8
9

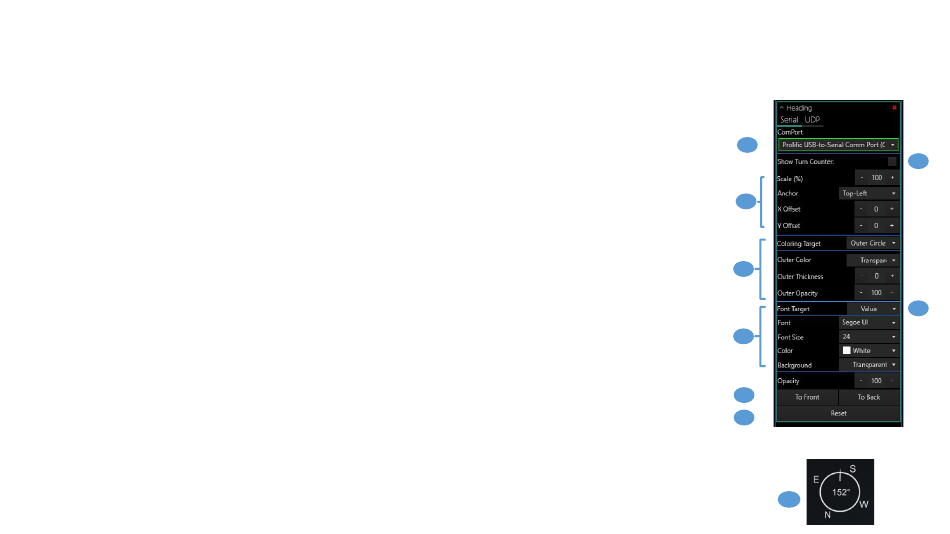

Typical appearance:
1
6
